PA Industries 36" wide Servo Roll Feed
ConditionUsed
1 available

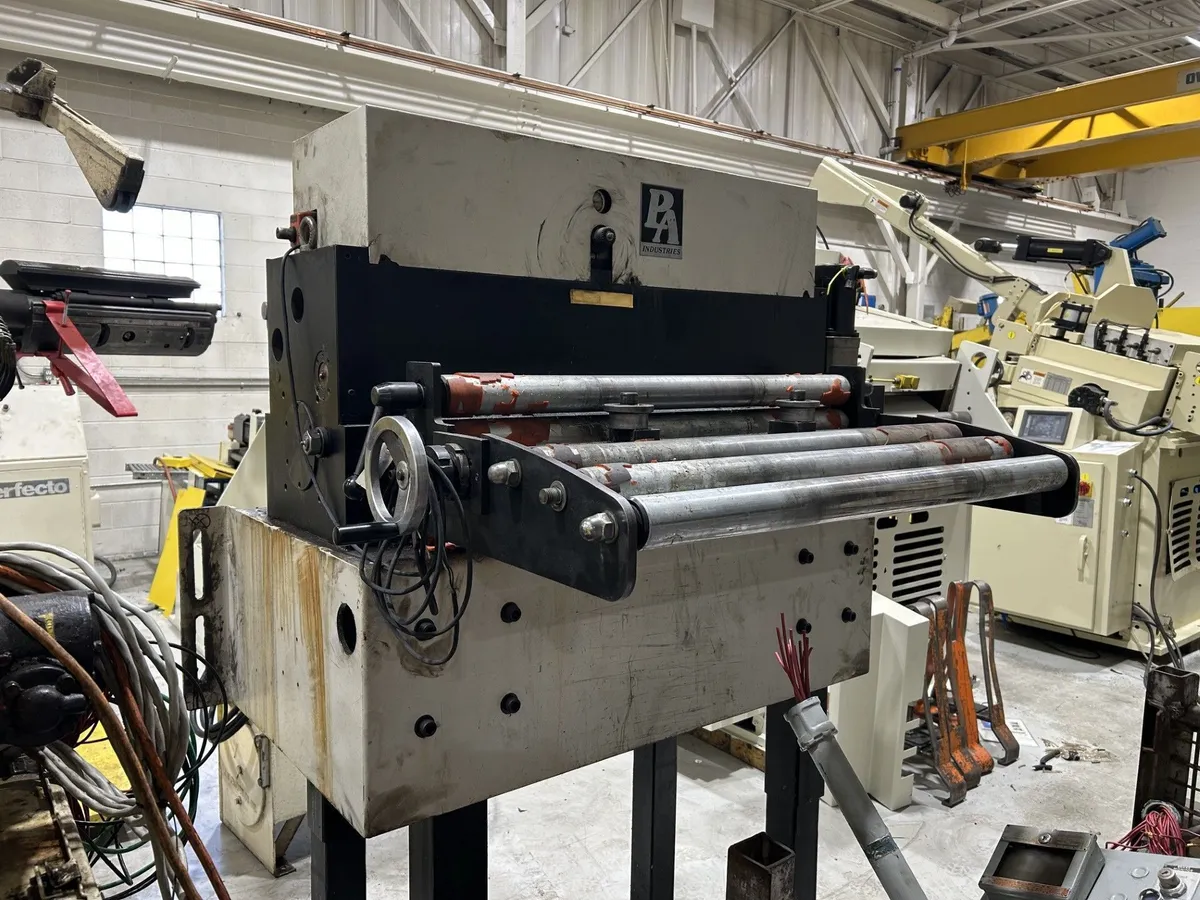

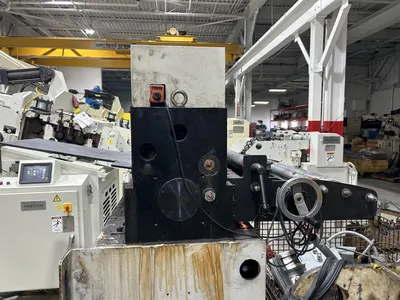

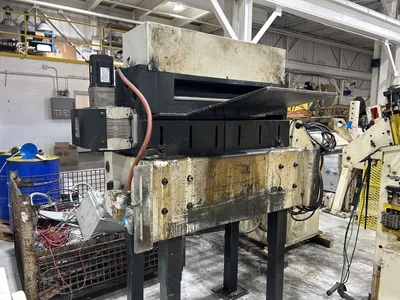

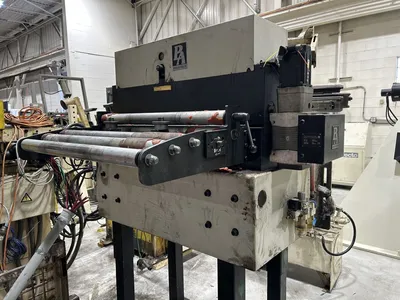

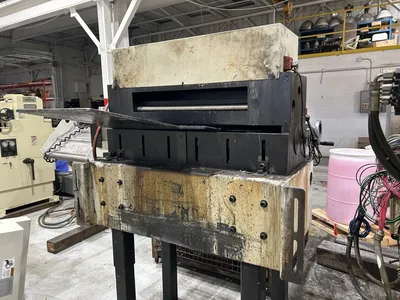

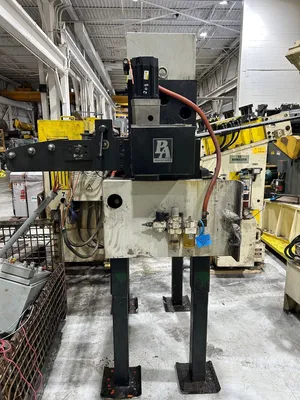

PA Industries 36" wide Servo Roll Feed
Stock width capacity: 36"
Stock thickness capacity: .125" x 36" Wide
Stock thickness capacity: .200" x 12" Wide
Minimum Stock Thickness.... 0.030"
Maximum Feed Length........ 999.99 inches
Material Feed Accuracy within 0.003 inches
Required Air Pressure Supply 60-80 PSI
4.72” diameter upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Centralized lubrication points
Cabinet base mounted with heavy duty pass line adjustment
Adjustable stock width edge guides
Three roll cascade loop support roller section
AC servo roll feed drive and controls
End of stock detector for automatic shut-off
Job memory storage
Batch counting
On the fly micro adjustment

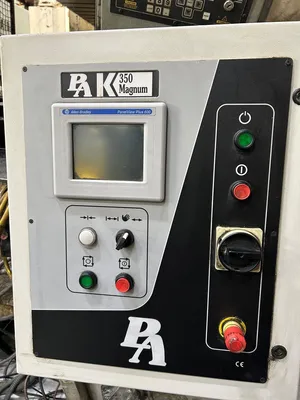

Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
PA Industries 36" wide Servo Roll Feed
Imperial
| Coil Width Capacity | 36" |
| Stock Thickness Capacity at Full Width | 0.125" |
Stock width capacity: 36"
Stock thickness capacity: .125" x 36" Wide
Stock thickness capacity: .200" x 12" Wide
Minimum Stock Thickness.... 0.030"
Maximum Feed Length........ 999.99 inches
Material Feed Accuracy within 0.003 inches
Required Air Pressure Supply 60-80 PSI
4.72” diameter upper and lower servo feed rolls
Matte chrome finish on servo feed rolls
Air operated upper servo feed roll adjustment / pilot
Centralized lubrication points
Cabinet base mounted with heavy duty pass line adjustment
Adjustable stock width edge guides
Three roll cascade loop support roller section
AC servo roll feed drive and controls
End of stock detector for automatic shut-off
Job memory storage
Batch counting
On the fly micro adjustment
Free standing sloped front servo roll feed control console
Remote pendant control for jog forward and reverse
Fused disconnect
