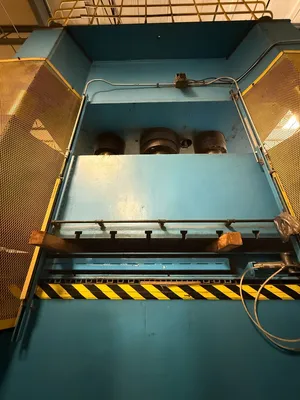

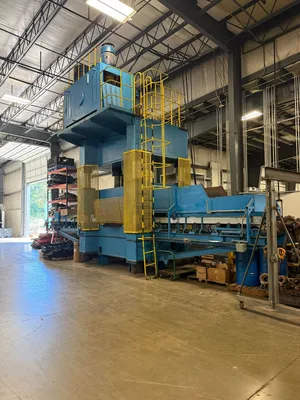

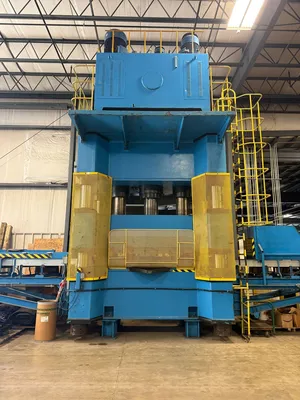

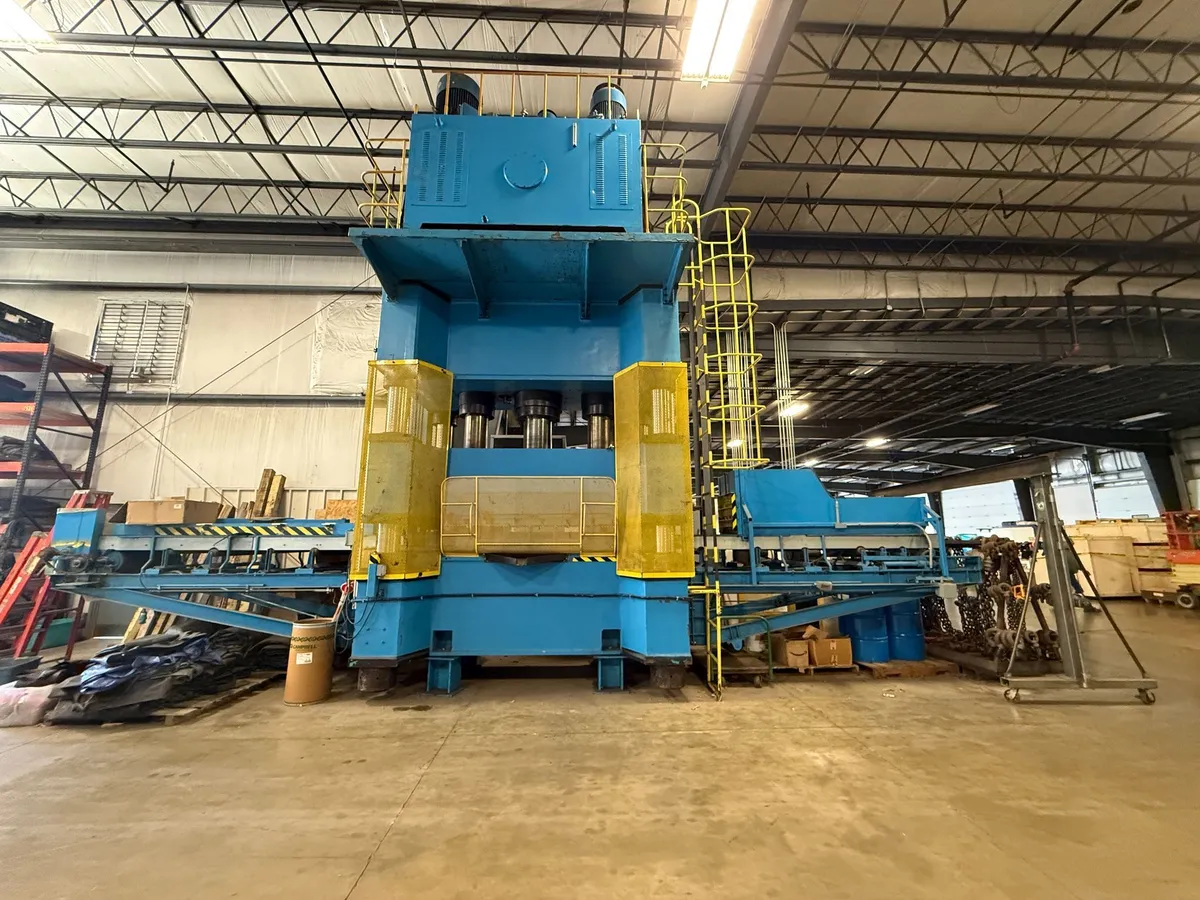

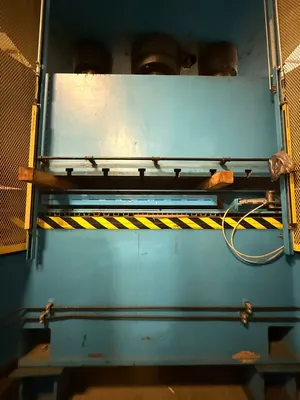

880 Metric Ton 4-Post Hydraulic Compression Press: 106.3" x 57.48" Platten Area, 30.51" Stroke, & 33.46" Shut Height.
Press controls have been upgraded to a fully automated Allen Bradley PLC programmable control system.
Tonnage: 970 US Tons (880 Metric Tons / 8000KN)
Maximum Work Pressure of Liquid: 3625.94 psi (25 MPa)
Max Stroke of Slide: 30.51 inches (775 mm)
Press Opening: 33.64 inches (850 mm)
Height from work table to ground: 19.69 inches (500 mm)
Slide Speed - Fast Down: 354.3 Inches Per Minute (150 mm/s)
Slide Speed - Work: 78.74 Inches Per Minute (20 mm/s)
Slide Speed - Return Stroke: 236.2 Inches Per Minute (100 mm/s)
Work Table Size (L-R): 106.3 inches (2700 mm)
Work Table Size (F-B): 57.48 inches(1460 mm)
Footprint: 140.94 inches (L-R) x 91.34 inches (F-B) x 256.69 inches (Height)
3580 mm (L-R) x 2320 mm (F-B) x 6250 mm (Height)
Machine Total Power: 80.5 KW
Machine Total Weight: 84.88 US Tons (77 Metric Tons)
Original start up for this press was in 2008. This press was set up and used for demonstration only. Very low hours. Electrical panel was upgraded with an automated Allen Bradley PLC promgrammable control system. This press was designed to compress water out of slude.

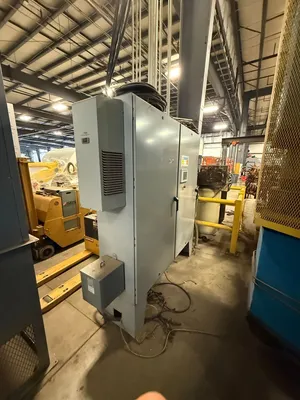

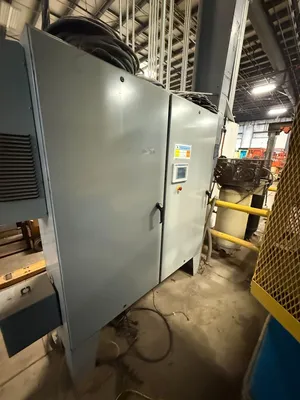

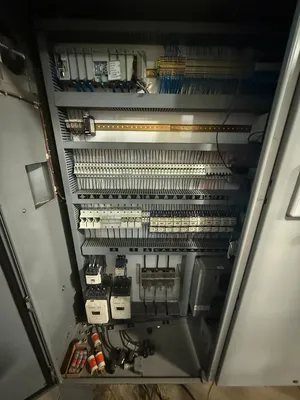

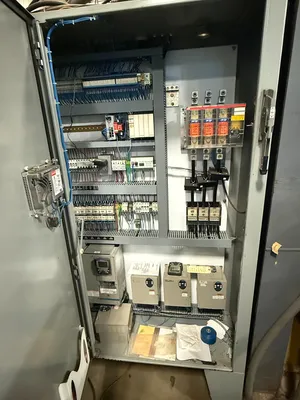

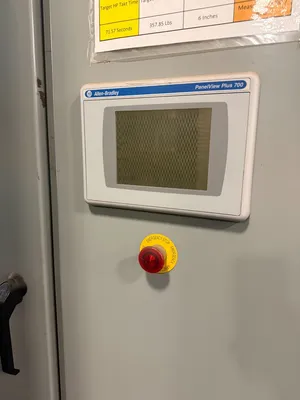

Allen Bradley PLC programmable control system

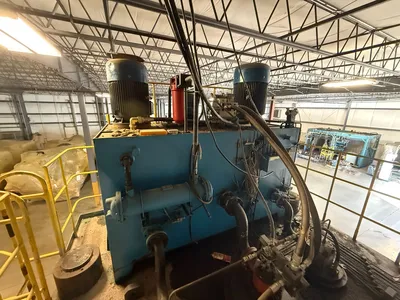

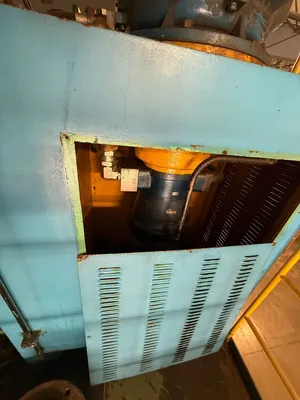

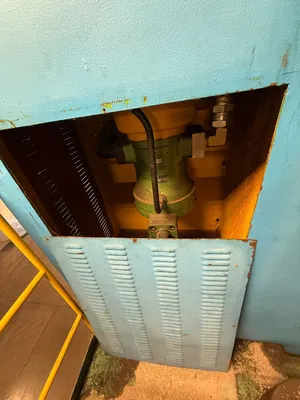

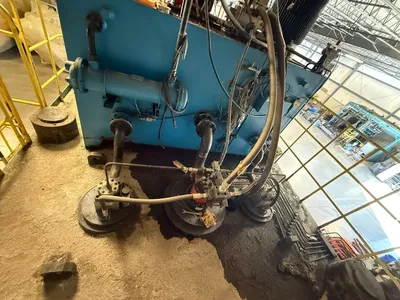

Hydraulic Pump

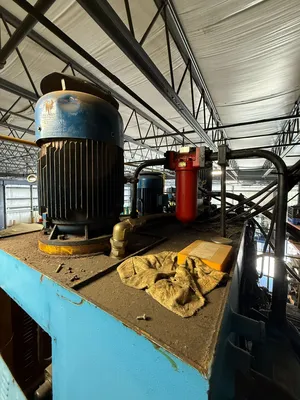

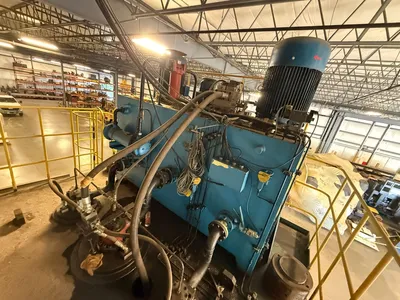

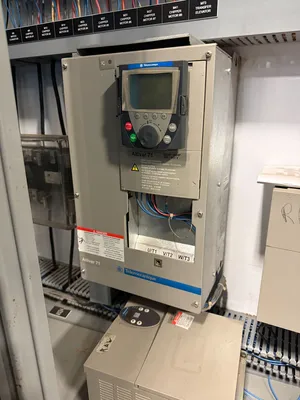

Motors and Controls

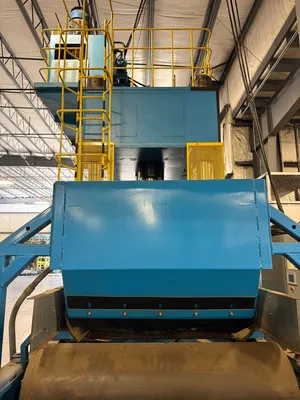

Feed System
880 Metric Ton 4-Post Hydraulic Compression Press: 106.3" x 57.48" Platten Area, 30.51" Stroke, & 33.46" Shut Height.
Press controls have been upgraded to a fully automated Allen Bradley PLC programmable control system.
Imperial
| Tonnage | 970 T |
| Stroke | 30.51" |
| Shut Height | 33.46" |
| Bed area (Left to right) | 106.3" |
| Bed area (Front to back) | 57.48" |
| Daylight | 33.46" |
| Fast Closing Speed | 354.3 in/min. |
| Pressing Speed | 0.8 in/min. |
| Fast Return Speed | 236.2 in/min. |
Tonnage: 970 US Tons (880 Metric Tons / 8000KN)
Maximum Work Pressure of Liquid: 3625.94 psi (25 MPa)
Max Stroke of Slide: 30.51 inches (775 mm)
Press Opening: 33.64 inches (850 mm)
Height from work table to ground: 19.69 inches (500 mm)
Slide Speed - Fast Down: 354.3 Inches Per Minute (150 mm/s)
Slide Speed - Work: 78.74 Inches Per Minute (20 mm/s)
Slide Speed - Return Stroke: 236.2 Inches Per Minute (100 mm/s)
Work Table Size (L-R): 106.3 inches (2700 mm)
Work Table Size (F-B): 57.48 inches(1460 mm)
Footprint: 140.94 inches (L-R) x 91.34 inches (F-B) x 256.69 inches (Height)
3580 mm (L-R) x 2320 mm (F-B) x 6250 mm (Height)
Machine Total Power: 80.5 KW
Machine Total Weight: 84.88 US Tons (77 Metric Tons)
Original start up for this press was in 2008. This press was set up and used for demonstration only. Very low hours. Electrical panel was upgraded with an automated Allen Bradley PLC promgrammable control system. This press was designed to compress water out of slude.
Allen Bradley PLC programmable control system
Hydraulic Pump
Motors and Controls
Feed System
