Dallas 72" wide x 40,000 # Space Saver Servo Feedline, New in 2016

Dallas Travelling Coil Load Car

Model#: LC-40,000# x 72
Coil Load Car Track
Powered Lift and Travel
Narrow Coil Supports

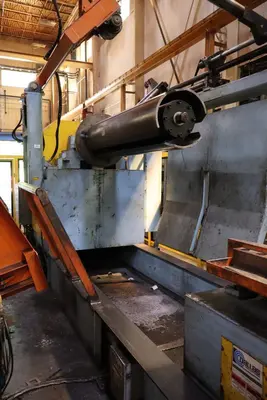

Automated Coil Guide Rolls Interlocked with Load Car
Model#: CGR-40,000# x 72-RH
Coil Restrictor
Model#: CR-40,000# x 72-RH

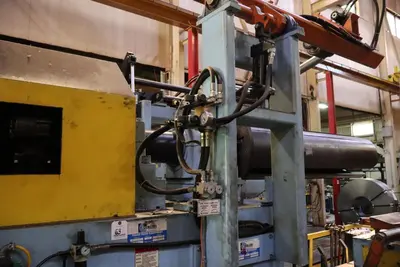

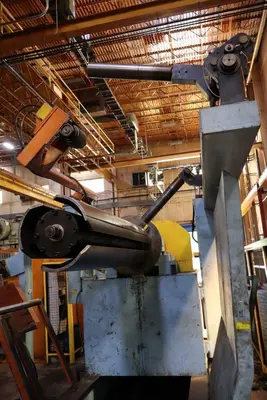

Coil Hold Down Arm with Motorized End Wheel

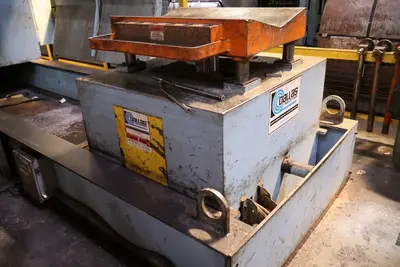

Dallas Industries Thread Table with Peeler Blade

Model#: PTT-72-RH

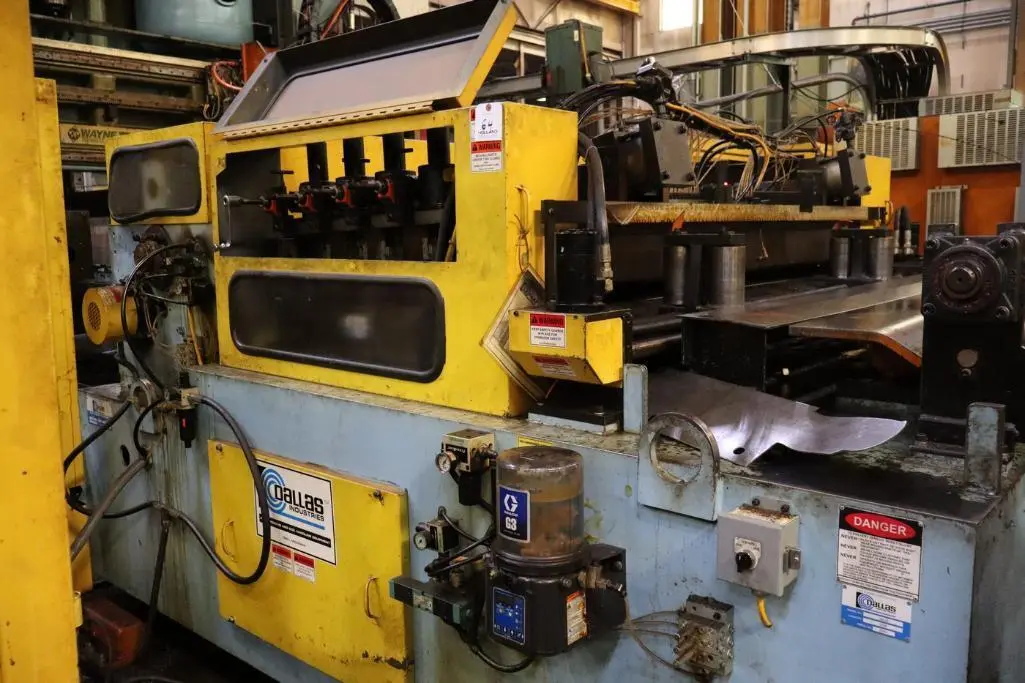

Dallas Industries Servo Roll Feed Pull Thru Straightener Combination

Model#: PPTSV-4-9-5T-72-RH
Piloting Pull Thru Straightener

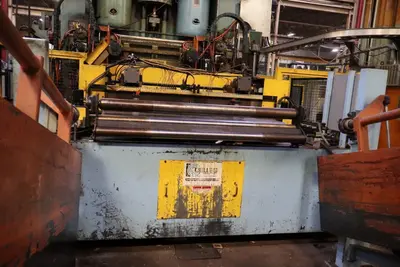

9 Roll Straightener
4” Diameter Straightening Rolls

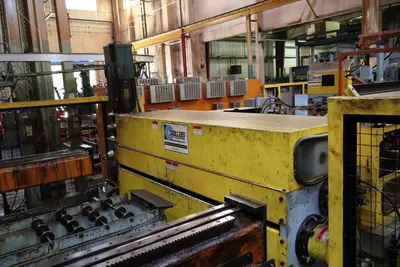

Dallas Industries Servo Roll Feed

Model#: DRFXS-872-RH
Dallas Feed Controls
8” diameter Feed Rolls
Matte Chrome Finish on Servo Feed Rolls
Air operated upper servo feed roll adjustment / pilot (dual cylinder)
Centralized lubrication points
Roller stock width edge guides with individual or unison upper roll adjustments
Cabinet base mounted with heavy duty pass line adjustment
Motorized pass line adjustment
Solenoid controlled pilot release
Air pressure/regulators flush mounted in cabinet base
Nine coil straightening rolls
Individual upper coil straightening roll adjustments
Motorized coil straightener pinch roll for stock threading
Air operated upper coil straightener pinch roll adjustment
Cascade loop support rollers Stock width reference scale

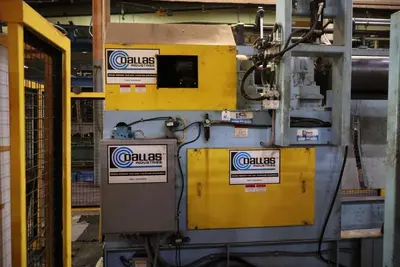

AC servo roll feed drive and controls
• 40 HP servo drive
• AB Powerflex 755 Drive on Ethernet
• Operator control console with eight feet of cable.
• Digital servo controller and a high performance AC brushless servo motor.
• Self diagnostic electronics.
• 200 job memory.
• Length setting in .001 inch increments.
• 10.0 full color touch screen.
• Touch screen display for length and speed job data entry (conventional trapezoidal motion profile).
• Hand help jog control pendent with fast or slow speed selection.
• Integrated jog to length for single stroke operation.
• Profile select job screen (smooth sinusoidal motion profile).
