Coe 24" wide x 15,000 # Servo Feedline, Coe Reel, Coe Straightener, Coe Servo Feed
ConditionUsed
1 available
15,000 # x 24" wide Coe Servo Feedline, Coe Coil Reel with Coil Car, Coe Powered Straightener, Coe Servo Feed Press Mounted, Capacity: 24" wide x 0.125" thick material
Coil Weight Capacity 15,000 #
Model………………………………………. 46317
Model Number………………………CPRF-S324/CPPS-350-24/CPR-DE-PO-15024
Year of Manufacture……………………….. 2007
Coil Width Capacity 24”
Stock Thickness Capacity……………………24” wide x .125”
Min. Capacity………………………………... 24” wide x 0.025”
Coil I.D. Range………………………………. 19.5”-24.5”
Coil Line speed………………………………. 409 FPM
Coil O.D. 72”
Power Supply………………………………. 460/3/60
Feed Direction……………………………… Right to Left

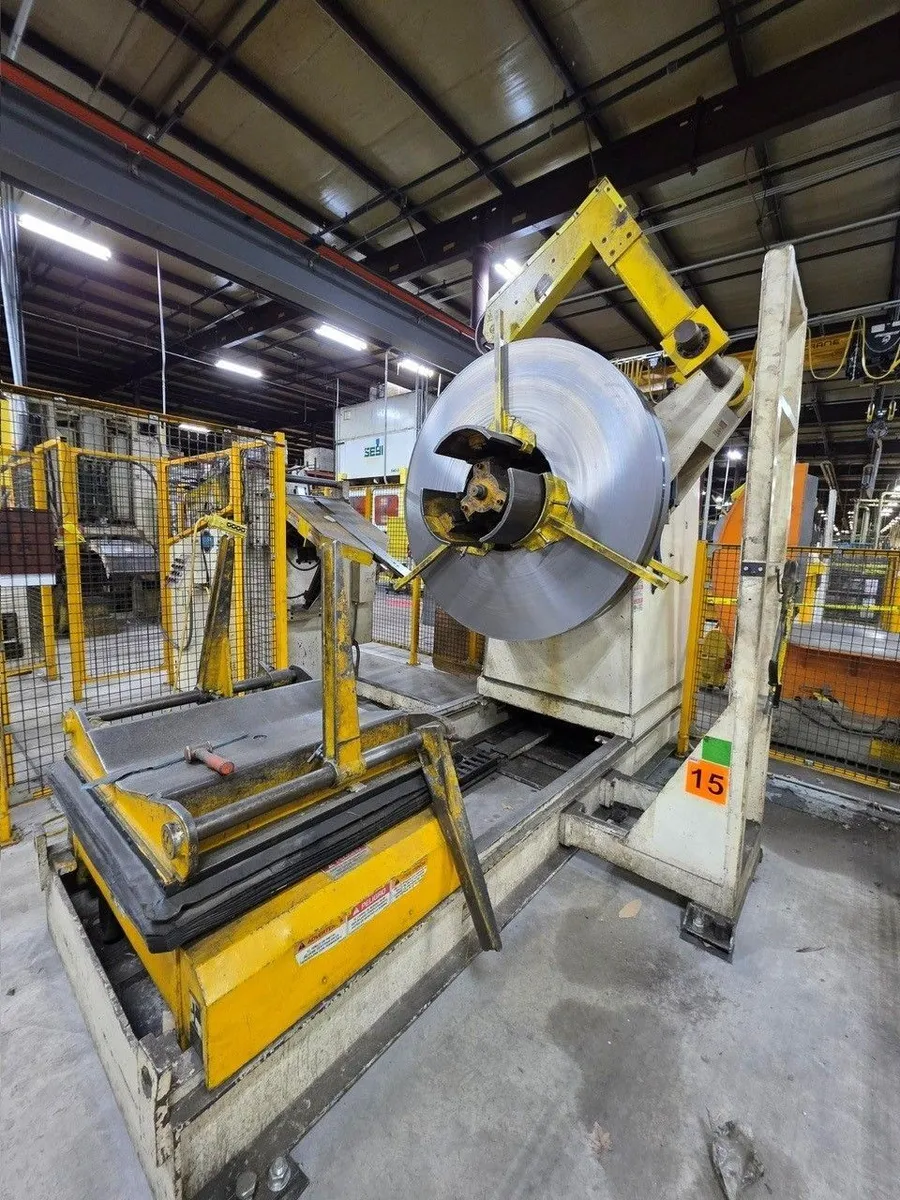

Coe Coil Reel Model No. CPR-PO-15024
Three Pad Mandrel Construction
27” diameter heavy duty backplate
One set of (6) Quick Release Narrow Coil Keepers
Material Width Scale on Mandrel Pad
Hydraulic Mandrel Expansion
Hydraulic Threading Drive
Powered Indexing Feature
Air Disc Drag Brake to Prevent Coil Over Run
One Set of (3) Coil Keepers
Coil Hold Down Arms with Motorized End Wheel
Remote Jog Pendant for Coil Car
Hydraulic Travelling Coil Car

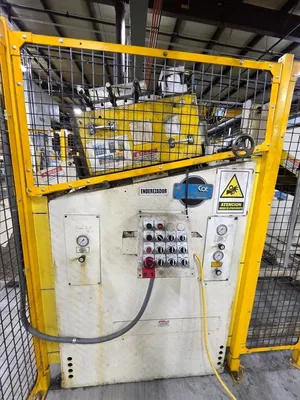

Centralized Controls for Straightener and Reel
Remote Jog Pendant for Material Threading
Coil Clock Spring Guard

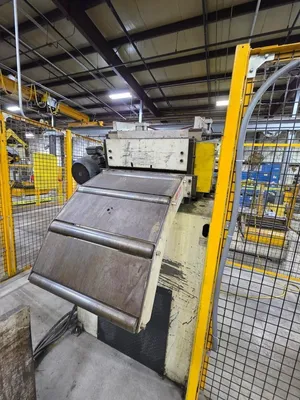

Coe Powered Coil Straightener Model No. CPPS-350-24
Capacity: .125” @ 24” wide
Min. Cap.- .025” @24” wide
Payoff Rate: 80 FPM maximum speed
Pinch Roll Diameter: 5”
Entrance Side Pinch Rolls
Pneumatic Raise and Lower of Upper Pinch Rolls
Seven (7) Straightener Rolls- 3.5” diameter
Independent Adjustment of Upper Straightening Rolls
Precision Worm Gear Adjustment of Upper Straightening Rolls
Cluster Gear Driven for all Lower Straightening Rolls
Four (4) Roll Catenary Section for Proper Material Support
Direct Mount Drive System for Efficient Torque Transfer
Central Point Lubrication System

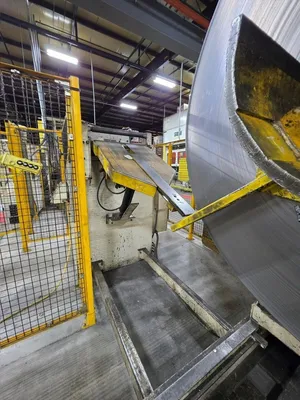

Peeler Table with Integral Material Debender
Centralized Controls for Straightener and Reel
Self Centering Hand Crank Entrance Edge Guides
10 HP AC Variable Speed Drive-Digital Control
Reel to Straightener Tie in Brackets
Ultra Sonic Variable Speed Loop Control with 3 Position Selector Swith
Single Side Table, with Adjustable Passline Feature
Air Raise and Lower of Threading Table

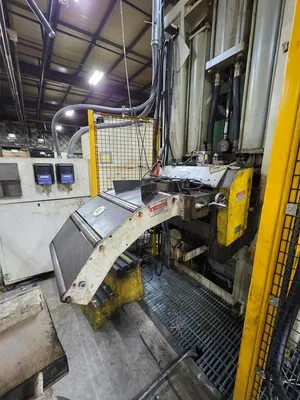

Coe Servomaster Series 3 Roll Feed 24” wide
CPRF-S324, 18” wide capacity Servo Feed
2 Rolls x 3” diameter
317 FPM Roll Speed
High Performance Maintenance Free AC Brushless Servo Motor
Emergency Stop Push Button
Remote Jog Pendant
Single Cycle Pushbutton for Set up at Jog Speed

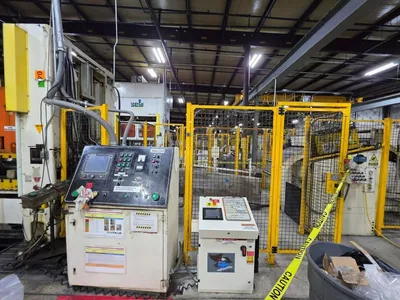

ServoMaster Controller
4 Roll Catenary Support Section
Low Inertia Drive System
Slotted Press Mount Plates for Precise Alignment and Height Adjustment
Air Pressure Regulator for Exact Feed Roll Pressure
Air Operated High Speed Pilot Pin Release Mechanism
Partial Width Upper and Lower Feed Rolls (12” wide)
Handcrank Adjustable Height Mounting Bracket
