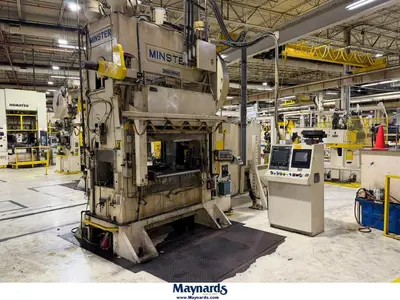

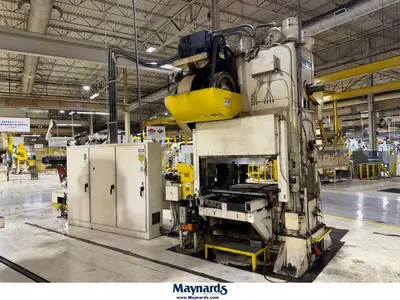

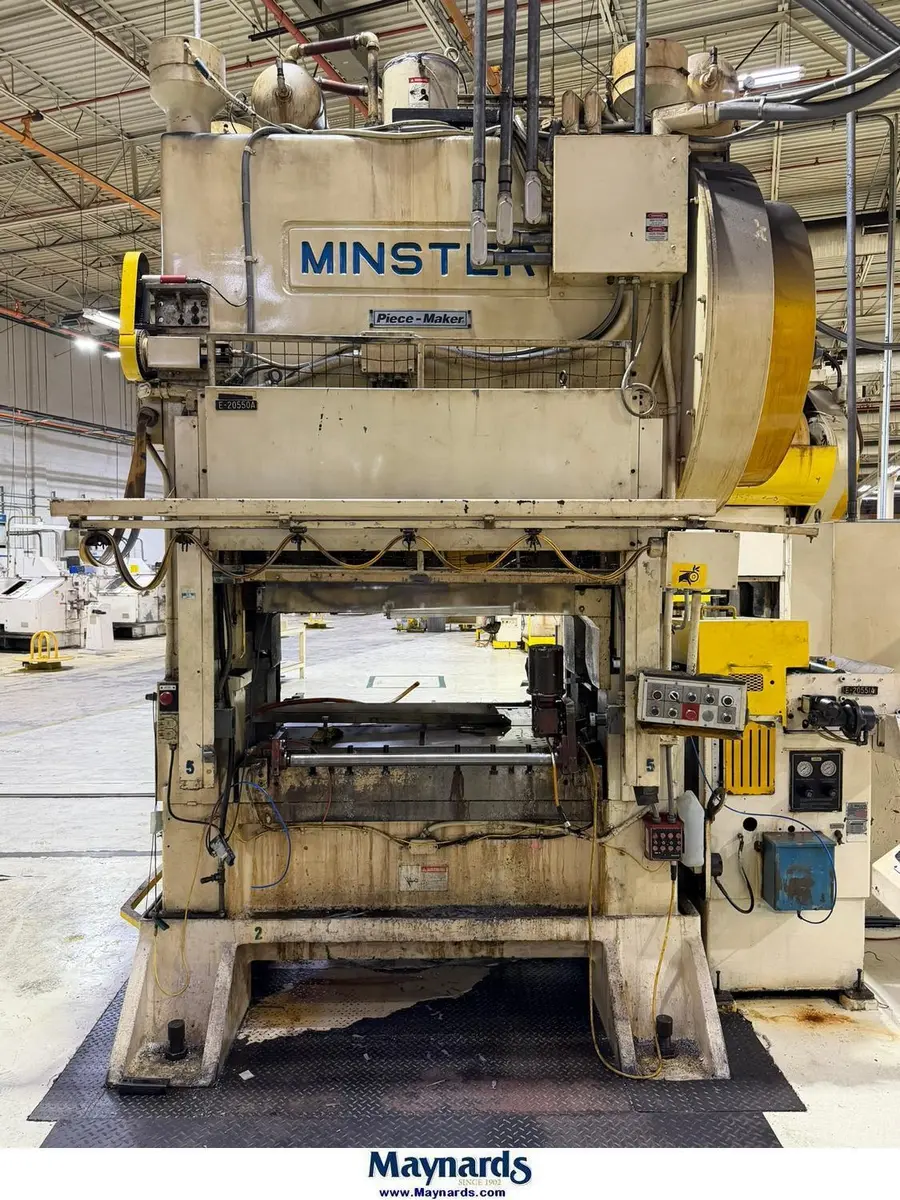

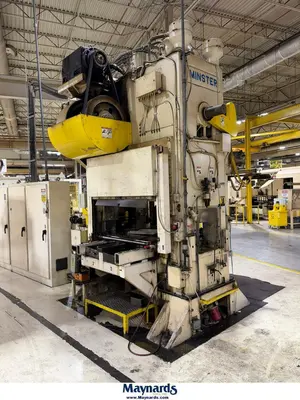

150 Ton Minster Piecemaker Geared High Speed Mechanical Press, 60" x 40" bed
ConditionUsed
1 available
Minster Piecemaker 150 Ton Straight Side Geared, High Speed Mechanical Press 60" x 40" bed, 5" stroke, 45-120 SPM, 23.5" Shut Height, 20" wide x 10,000 # Minster Servo Feedline

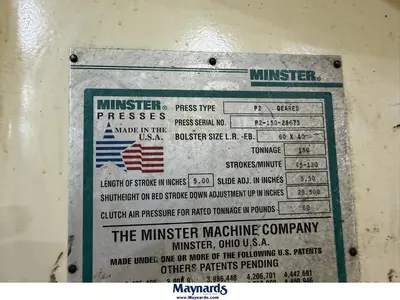

Model Number: P2-150-Geared
Serial Number: P2-150-28673
Bed Area: 60” x 40”
Stroke: 5”
Strokes per Minute: 45-120
Shut Height: 23.5” over bolster
Bolster Plate: 6” thick t-slotted plate
Slide Adjustment: 5.5”
Windows: 20” wide window
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Minster Monitor Flow Lubrication System
Power: 480 Volt/3 Phase
Dual Ross Valve

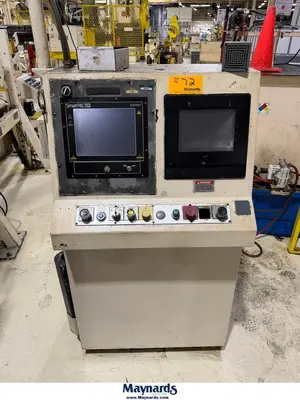

Wintriss Smart Pac PRO Press Control
Wintriss Resolver
AC Variable Speed Main Motor
Vibration Isolation Levelers
8 Point Gibbing
Motors and Controls
Motorized Ram Adjustment
Optional Minster Servo Feedline (Includes the following):
20” wide x 10,000 # Minster Double End Coil Reel
Model#: MR10-20D
S/N: 13-70354
3 Leaf Mandrel
Dual Hold Down Arms
Adjustable Rotation of Mandrel
60” OD/ 16-20” ID
Minster Powered Straightener
20” wide Capacity
.200” thickness capacity
Model#: MS20-20-7
Serial#: 1350302
60-600 IPM

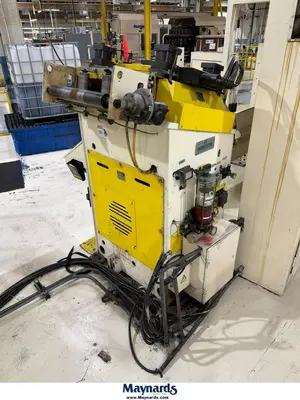

Minster 20” wide Feed
Model: MEF4-20
Serial#: 1850555
Minster Piecemaker 150 Ton Straight Side Geared, High Speed Mechanical Press 60" x 40" bed, 5" stroke, 45-120 SPM, 23.5" Shut Height, 20" wide x 10,000 # Minster Servo Feedline
Imperial
| Tonnage | 150 T |
| Stroke | 5" |
| Shut Height | 23.5" |
| Bed area (Left to right) | 60" |
| Bed area (Front to back) | 40" |
| SPM min. | 45 strokes/min. |
| SPM max. | 120 strokes/min. |
| Adjustment | 5.5" |
| Windows Width | 20" |
Model Number: P2-150-Geared
Serial Number: P2-150-28673
Bed Area: 60” x 40”
Stroke: 5”
Strokes per Minute: 45-120
Shut Height: 23.5” over bolster
Bolster Plate: 6” thick t-slotted plate
Slide Adjustment: 5.5”
Windows: 20” wide window
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Minster Monitor Flow Lubrication System
Power: 480 Volt/3 Phase
Dual Ross Valve

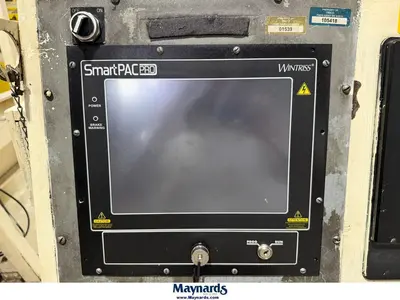

Wintriss Smart Pac PRO Press Control
Wintriss Resolver
AC Variable Speed Main Motor
Vibration Isolation Levelers
8 Point Gibbing
Motors and Controls
Motorized Ram Adjustment

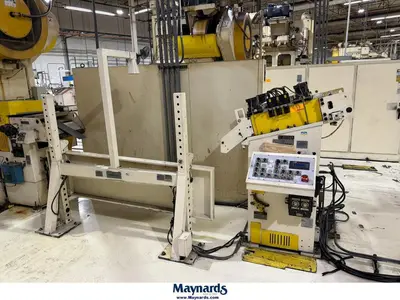

Optional Minster Servo Feedline (Includes the following):

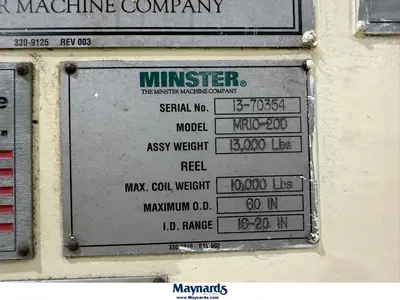

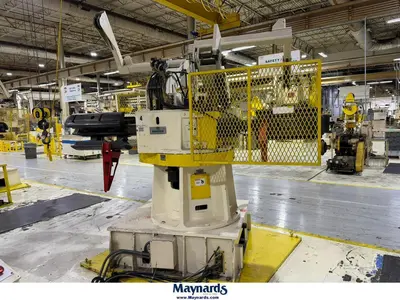

20” wide x 10,000 # Minster Double End Coil Reel
Model#: MR10-20D
S/N: 13-70354
3 Leaf Mandrel
Dual Hold Down Arms
Adjustable Rotation of Mandrel
60” OD/ 16-20” ID

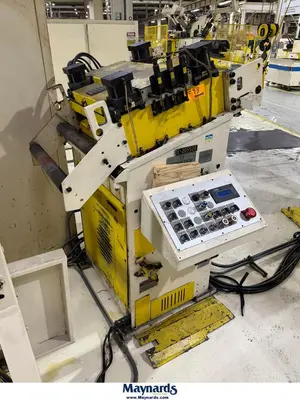

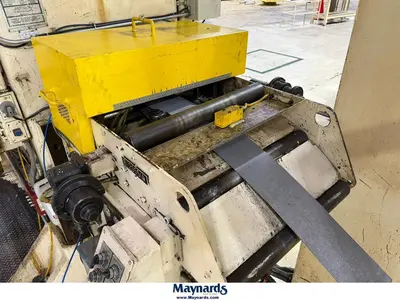

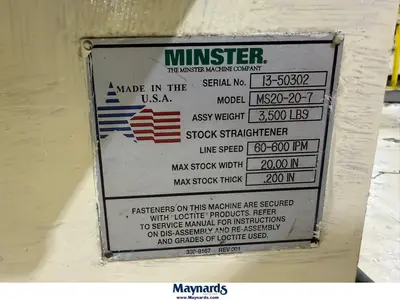

Minster Powered Straightener
20” wide Capacity
.200” thickness capacity
Model#: MS20-20-7
Serial#: 1350302
60-600 IPM

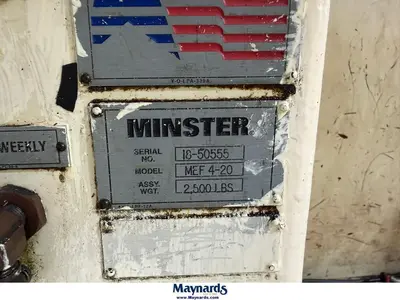

Minster 20” wide Feed
Model: MEF4-20
Serial#: 1850555
