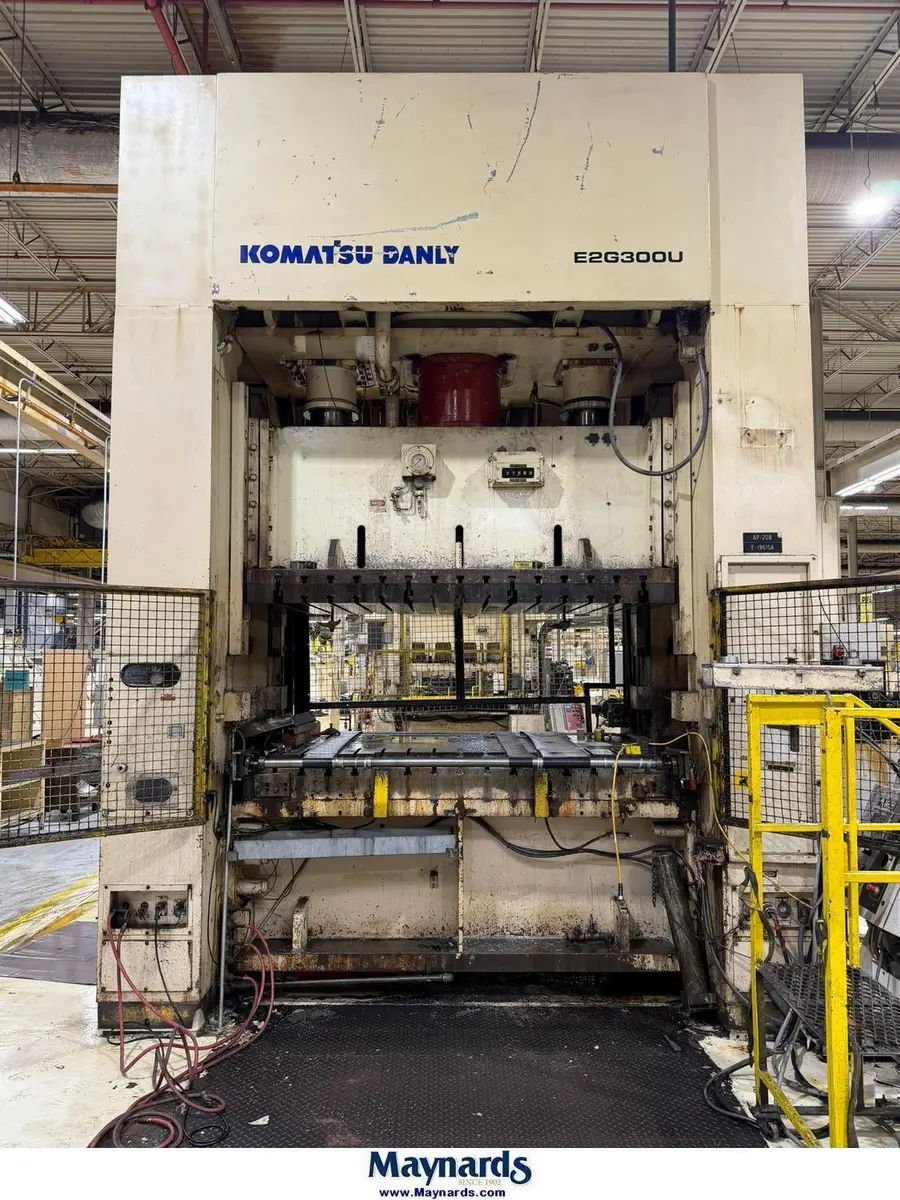

Komatsu 300 Ton SSDC Mechanical Press, 98.4" x 49.2" bed area, 14.2" stroke, 20-40 SPM
ConditionUsed
1 available

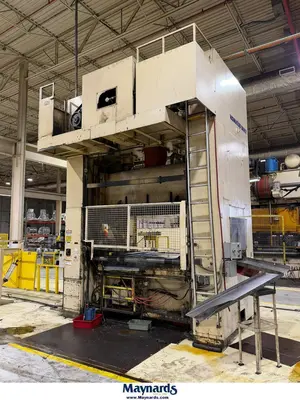

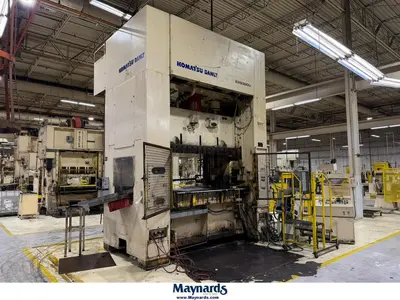

300 Ton Komatsu Straight Side Mechanical Press, 98.4" x 49.2" bed, 14.2" stroke, 20-40 SPM, 32" Shut Height, 36" wide windows
Model Number: E2G-300U
Serial Number: 91750101
Capacity: 300 Tons US Tons
Year of Manufacture: 1991
Bed Area: 98.4” x 49.2”
Slide Area: 98.4” x 49.2”
Stroke: 14.2”
Adjustment: 10.2”
Shut Height: 32.3” over bolsterSDAU
Strokes per Minute: 20-40
Bolster: 7.5” thick
Ram Riser Plate: 4”
Bolster Riser Plate: 2.5”
Windows: 36” wide
Overall Height: 18’4” floor to top of press
Overall Dimensions: 149” LR x 118” FB
Footprint Dimensions: 127.5” x 81.3”
Floor to top of bed dimension: 45.1”
Recirculating Lubrication System
Power Supply: 480V/60 HZ/ 3 Phase

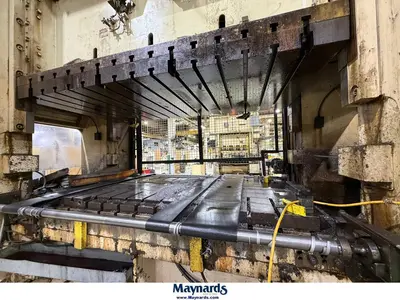

T-slotted Bolster and Ram

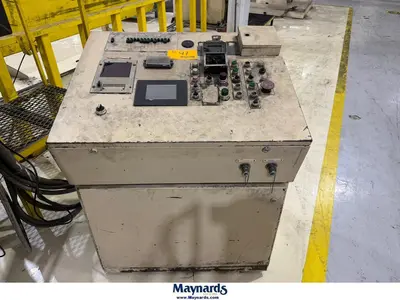

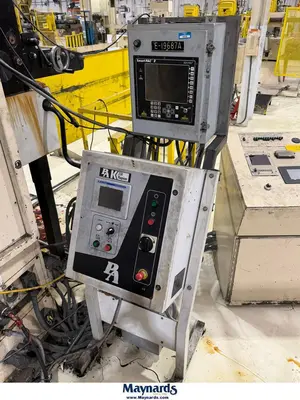

Wintriss Smart Pac 2 Press Controller
DSI Wintriss Die Protection (8 Inputs)
Wintriss Light Curtains (1) Set
Wintriss Palm Button Stand
Hydraulic Overloads
Hydraulic (Air Actuated) Clutch/Brake Assembly
8 Point Gibbing

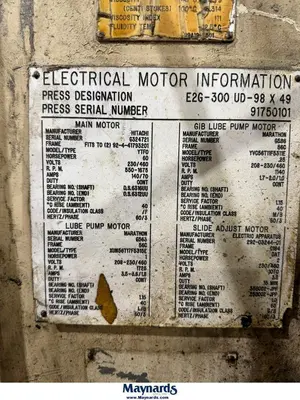

Variable Speed Motor
Air Clutch and Brake Assembly
Air Counterbalances
Vibration Isolation Levelers
300 Ton Komatsu Straight Side Mechanical Press, 98.4" x 49.2" bed, 14.2" stroke, 20-40 SPM, 32" Shut Height, 36" wide windows
Imperial
| Tonnage | 300 T |
| Stroke | 14.2" |
| Shut Height | 32" |
| Bed area (Left to right) | 98.4" |
| Bed area (Front to back) | 49.2" |
| SPM min. | 20 strokes/min. |
| SPM max. | 40 strokes/min. |
| Adjustment | 10" |
| Windows Width | 36" |
| Dimensions | 148" LR x 220" Long x 118" tall |
| Weight | 100,000# |
Model Number: E2G-300U
Serial Number: 91750101
Capacity: 300 Tons US Tons
Year of Manufacture: 1991
Bed Area: 98.4” x 49.2”
Slide Area: 98.4” x 49.2”
Stroke: 14.2”
Adjustment: 10.2”
Shut Height: 32.3” over bolsterSDAU
Strokes per Minute: 20-40
Bolster: 7.5” thick
Ram Riser Plate: 4”
Bolster Riser Plate: 2.5”
Windows: 36” wide
Overall Height: 18’4” floor to top of press
Overall Dimensions: 149” LR x 118” FB
Footprint Dimensions: 127.5” x 81.3”
Floor to top of bed dimension: 45.1”
Recirculating Lubrication System
Power Supply: 480V/60 HZ/ 3 Phase
T-slotted Bolster and Ram
Wintriss Smart Pac 2 Press Controller
DSI Wintriss Die Protection (8 Inputs)
Wintriss Light Curtains (1) Set
Wintriss Palm Button Stand
Hydraulic Overloads
Hydraulic (Air Actuated) Clutch/Brake Assembly
8 Point Gibbing
Variable Speed Motor
Air Clutch and Brake Assembly
Air Counterbalances
Vibration Isolation Levelers
