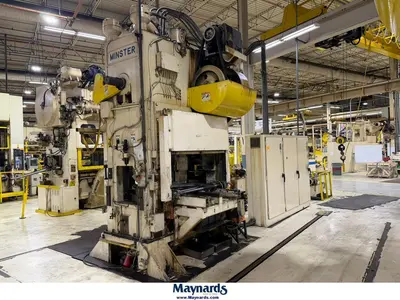

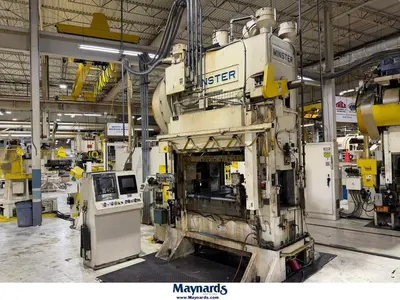

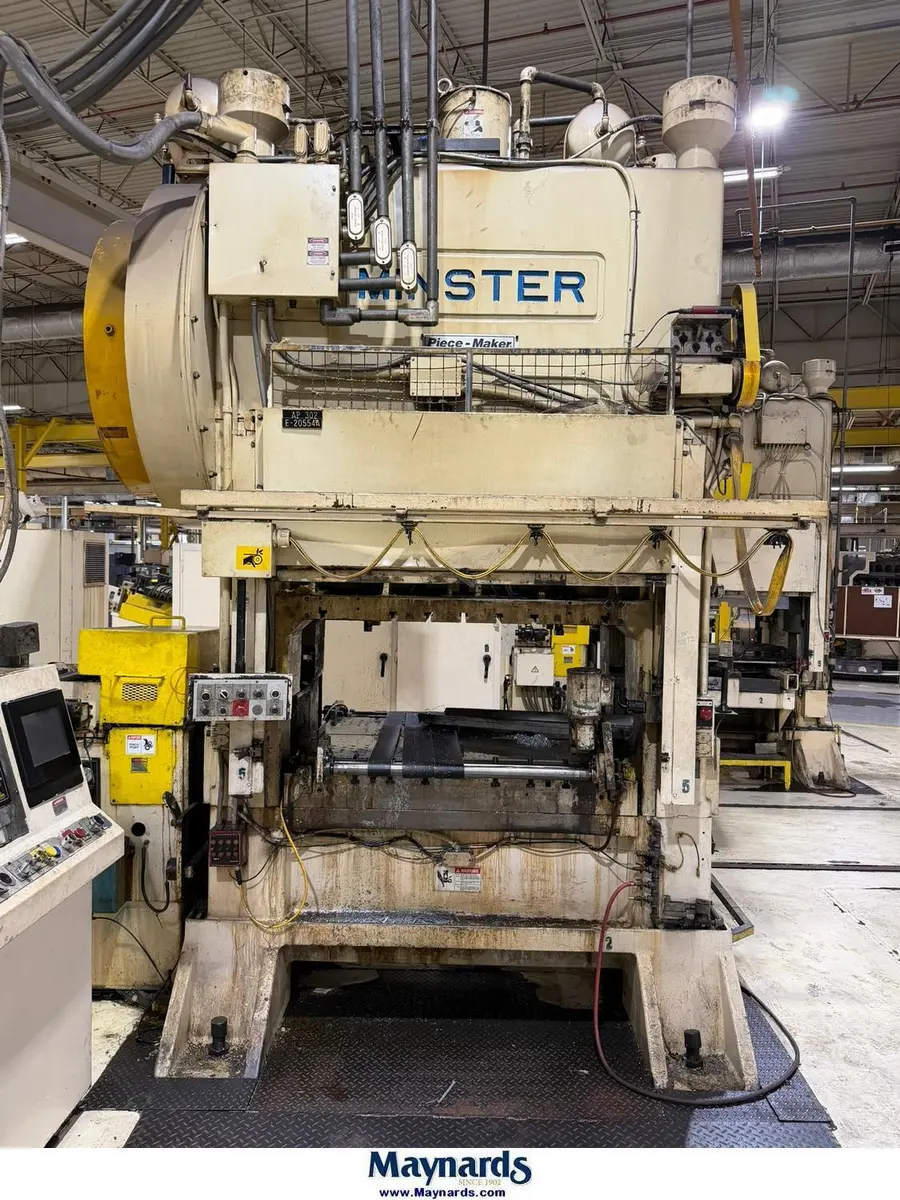

Minster Piecemaker 150 Ton Straight Side Geared High Speed Mechanical Press
ConditionUsed
1 available

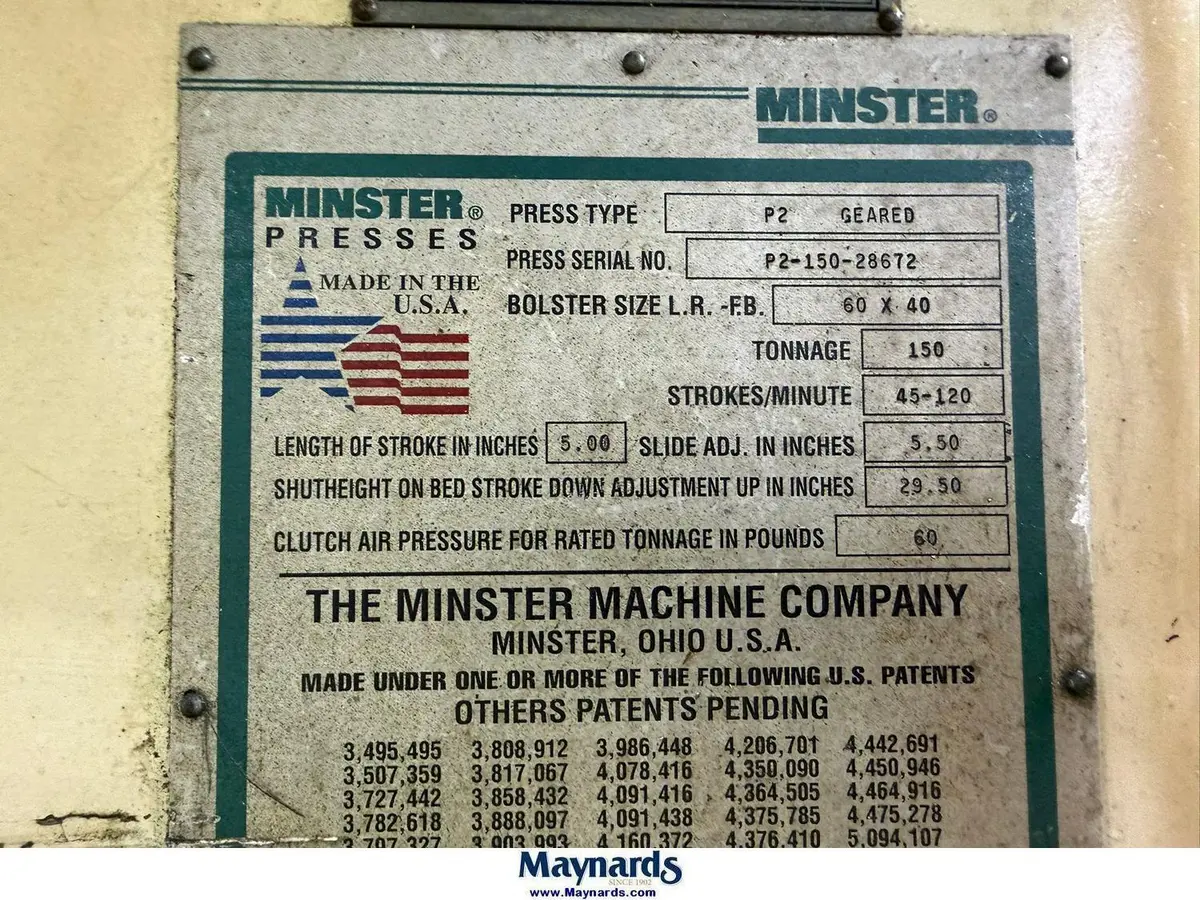

150 Ton Minster Piecemaker, Model: P2-150-Geared, 60" x 40" bed area, 5" stroke, 45-120 SPM, 23.5" Shut Height over bolster, New in 1995, Equipped with 20" wide x 10,000 # Minster Servo Feedline
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System

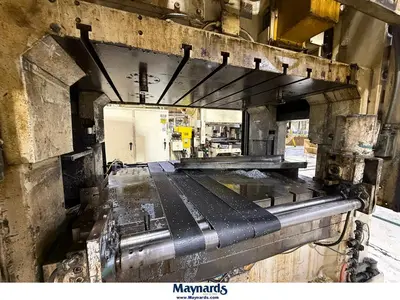

T-Slotted Ram and Bolster
Minster Monitor Flow Lubrication System
Power: 480 Volt/3 Phase
Dual Ross Valve

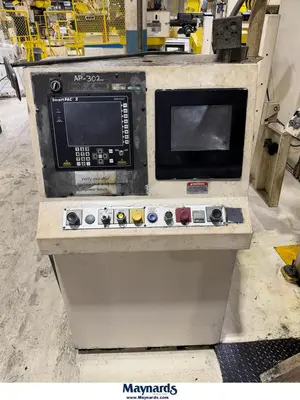

Wintriss Smart Pac 2 Press Control
Wintriss Resolver
AC Variable Speed Main Motor
Vibration Isolation Levelers
8 Point Gibbing

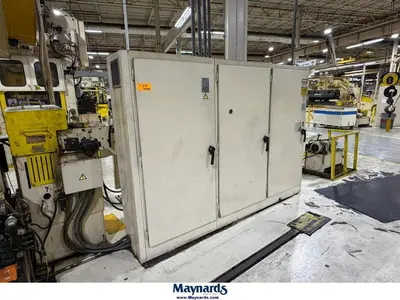

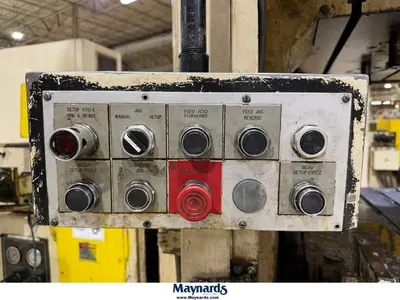

Motors and Controls
Motorized Ram Adjustment

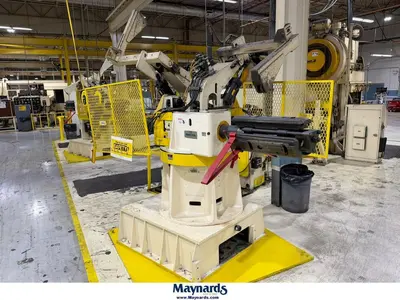

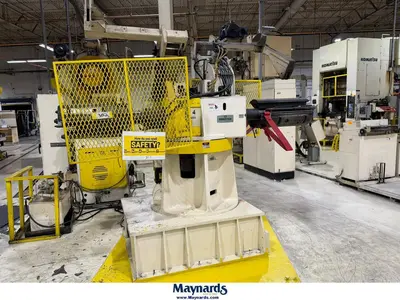

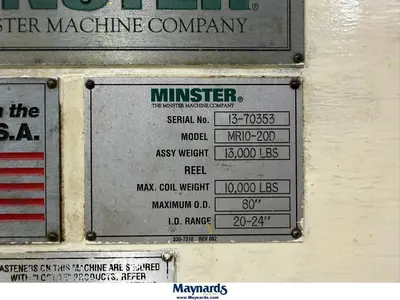

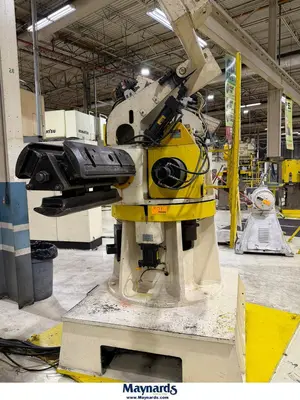

20” wide x 10,000 # Minster Double End Coil Reel
Model#: MR10-20D
S/N: 13-70353
3 Leaf Mandrel
Dual Hold Down Arms
Adjustable Rotation of Mandrel
Hydraulic Power Expansion
Pneumatic Brake
Adjustable Back Keeper Arms
Non Driven Hold Down Arm for each Mandrel
60” OD/ 20-24” ID
Feed Direction: Left To Right

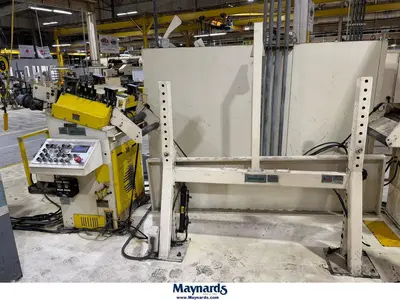

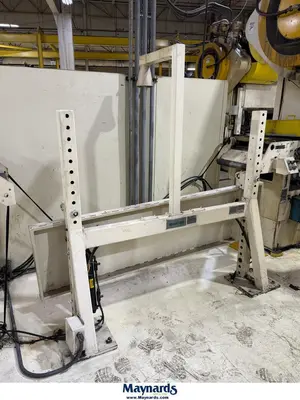

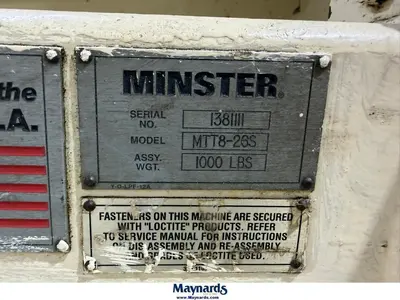

Minster Thread Table: Model: MTT8-26S
8’ table length x 26” max. width

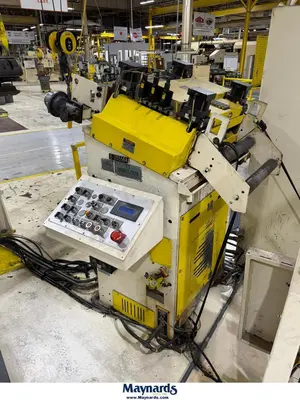

Minster Powered Straightener
20” wide x 0.110” thick material Capacity
Max. Thickness: 0.200” @ 5” wide
7 Straightening Rolls
Two Sets of Air Actuated Pinch Rolls x 3.33” diameter
Motorized Work Roll Adjustment
Fully Automated Centralized Grease Lubrication System
Motorized Stock Guide Adjustment
AC Servo Straightener Drive Speeds up to 1200 IPM
Ultrasonic Loop Control
.200” thickness capacity

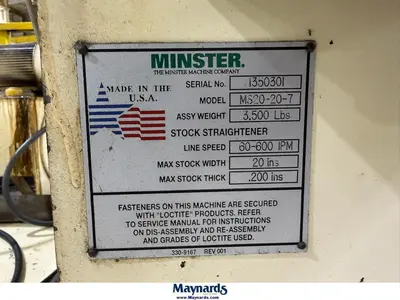

Model#: MS20-20-7
Serial#: 1350301
60-600 IPM

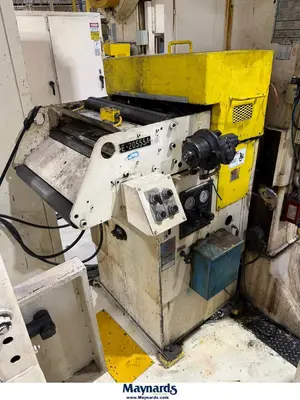

Minster 20” wide Feed
Model: MEF4-20
Serial#: 1850554
Capacity: 20” wide x 0.090” thick material
Max. Thickness: 0.187” x 9” wide
Min. Thickness: 0.020”
