Coe 12" wide x 8,000lbs Servo Feed Line
ConditionUsed
1 available

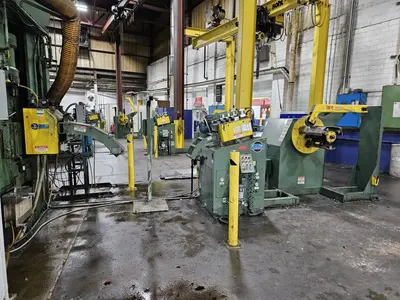

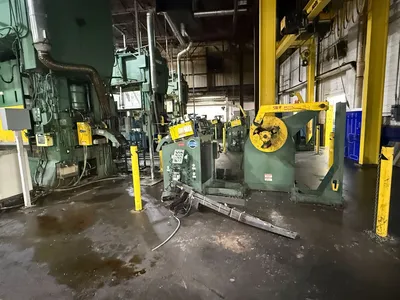

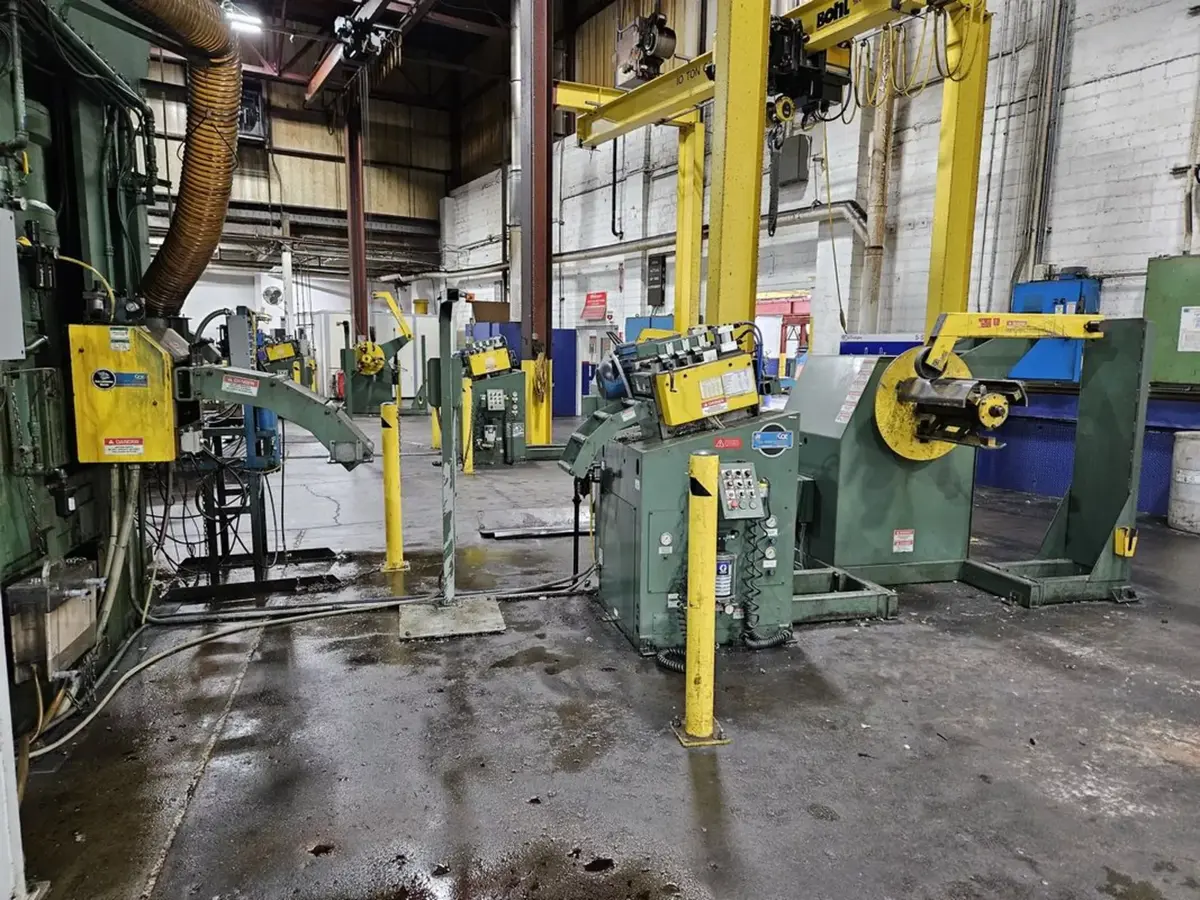

Coe 12" wide x 8,000lbs Complete Coil Feed Line
Coil Weight Capacity: 8,000 lbs
Model: CPR-PO-8018 / CPPS-250-12 / CPRF-S312
Serial Number: 52363
Coil Width Capacity: 12”
Stock Thickness Capacity: 12” wide x .187” thick material
Min. stock Thickness: 0.030”
Coil I.D. Range: 20-24”
Coil O.D.: 60”
Power Supply: 460/3/60
Feed Direction: Right to Left

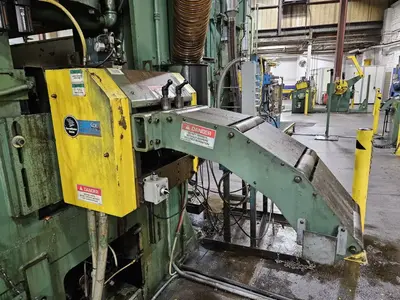

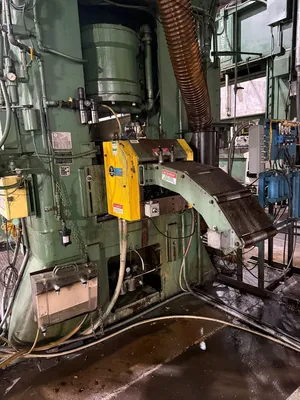

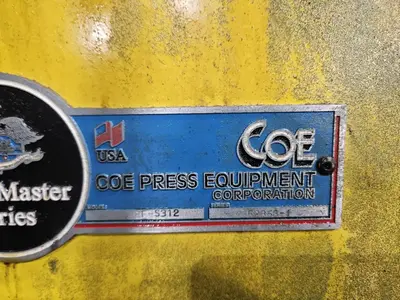

COE PRESS Servo Roll Feed - Model: CPRF-S312 / Serial No. 52363-1
Three inch diameter feed rolls
Piloting upper roll
Adjustable edge guides
Press mounted

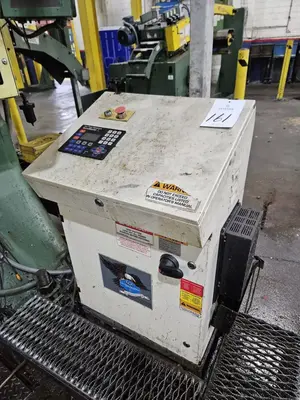

AC Servo Controls

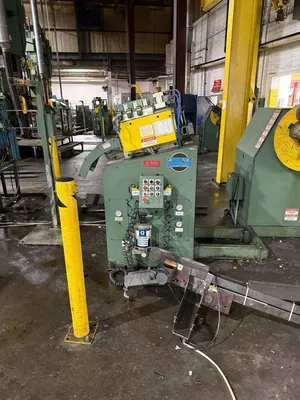

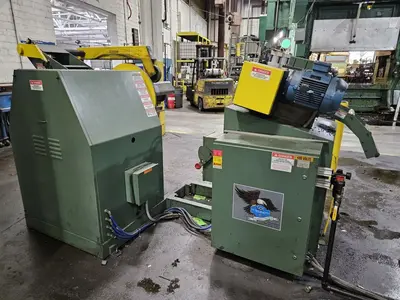

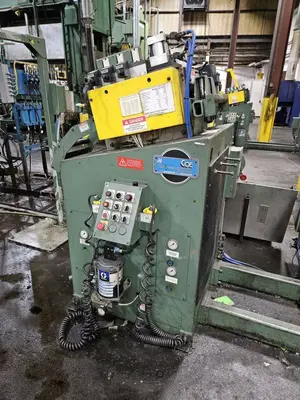

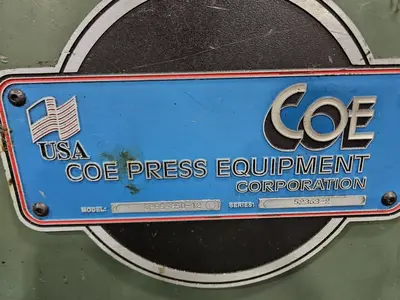

COE PRESS Powered Coil Straightener - Model: CPPS-PO-250-12 / Serial No. 52363-2
Entry pinch rolls with air operated adjustment
Seven Straightening rolls x 2.50" diameter
Individual upper roll adjustment with position readouts
Adjustable stock width edge guides
Automatic lubrication system
AC VF Drive and control system

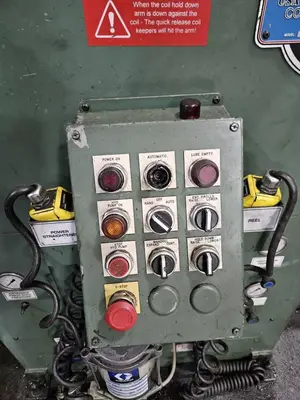

Operator's control station
Jog forward and reverse
Auto / Run cycle with loop control

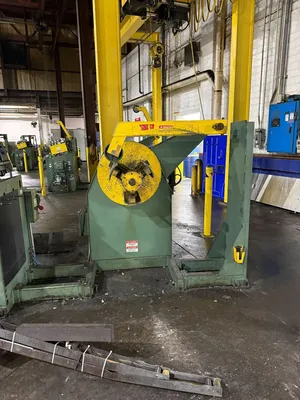

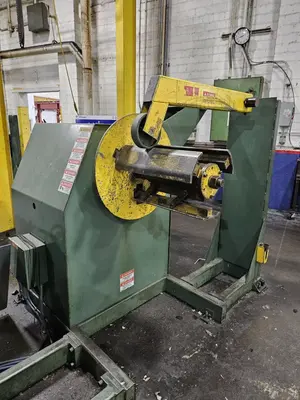

COE PRESS Coil Reel Uncoiler - Model: CPR-PO-8012 / Serial No. 53263-3
Three leaf mandrel with hydraulic expansion
Coil hold down arm
Air Brake with adjustable tensioning
Self contained hydraulics
