Coe 54" wide x 20,000 lbs Complete Servo Coil Feed Line
ConditionUsed
1 available
Coe 54" wide x 20,000lbs Coil Feed Line
Stock Thickness: 54" wide x 0.060" thick
..............................36" wide x 0.125" thick
Coil Weight Capacity: 15,000lbs
Model: CPR-PO-20054
Model Number: CPPS-300-54
Coil Width Capacity: 54”
Stock Thickness Capacity: 54” wide x .060” thick material
Max. Capacity: 36” wide x 0.125” thick
Min. stock Thickness: 0.020” x 54” wide
Coil I.D. Range: 20-24”
Coil O.D.: 72”
Power Supply: 460/3/60
Feed Direction: Left to Right
Note: Includes new Coe Servo Master Drive and Controller. Reel and Straightener will be cycled and checked out to make sure that they are in production running condition.

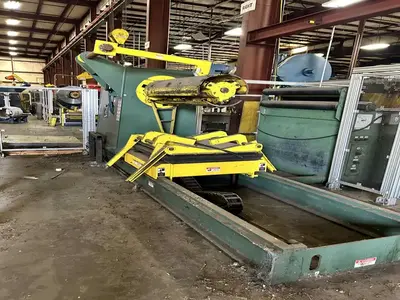

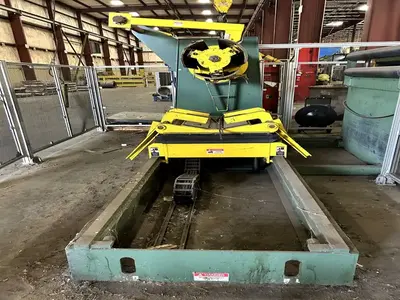

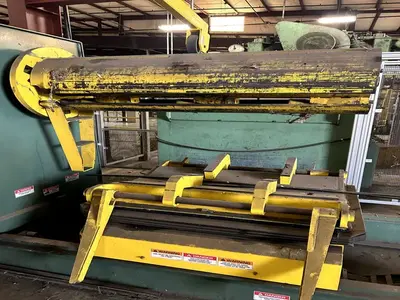

Coe Press Coil Reel Uncoiler Model No.: CPR-PO-20054
Three leaf mandrel coil reel
Heavy duty wedge type hydraulic coil reel mandrel expansion
Coil reel keeper arms
Threading drive for jog forward and reverse
Air brake mounted on main coil reel spindle
Adjustable tensioning

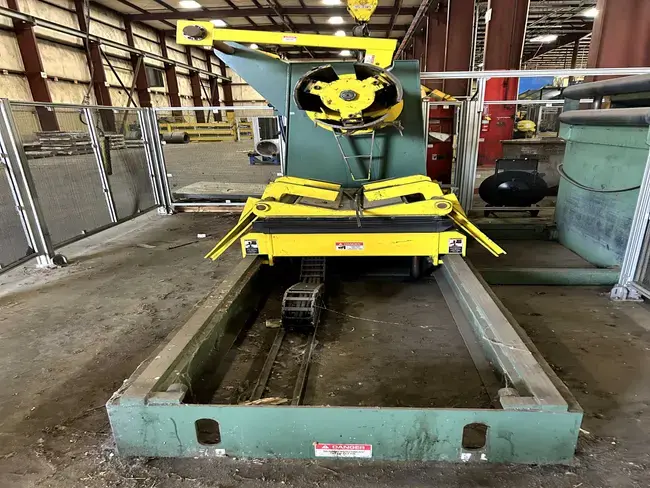

Traveling coil load car
Powered lift and travel
Hold Down Arm mounted on Coil Reel

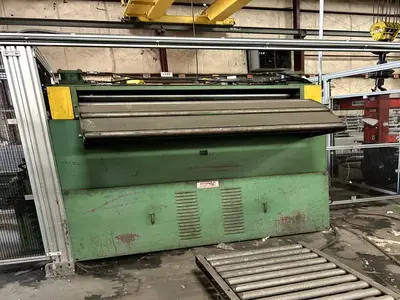

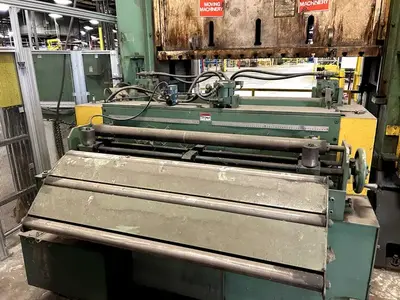

Coe Press Powered Coil Straightener Model No.: CPPS-PO-300-54
Individual operated adjustments
Seven x 3.0" diameter coil straightening rolls
Manual upper straightener rolls adjustments via screw jacks
Hand crank stock width edge guides
Powered coil straightener head
Exit cascade loop support rollers
Hand held pendant control for jog forward and reverse
Variable speed powered coil straightener drive and control package

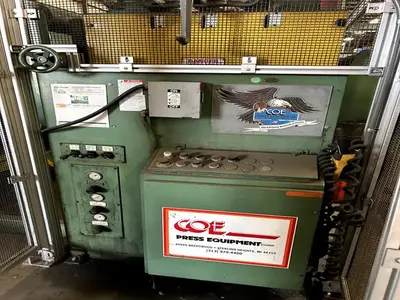

Common operator control station
Auto/Run cycle
Variable speed loop control
Coe Press Exit Threading Table Model No.: ETT
Bombay door style
Air operated actuation

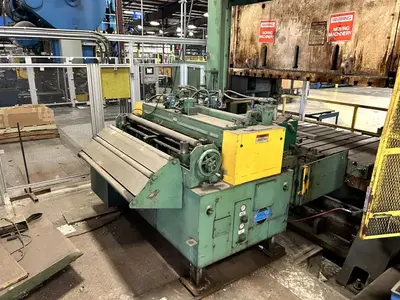

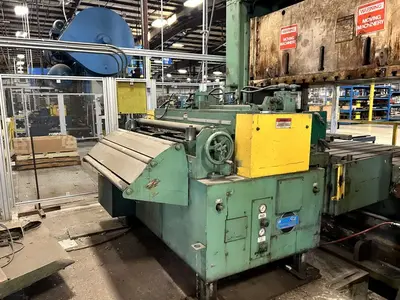

Coe Press Servo Roll Feed Press Feed Model No.: CPRF-454
Upper and lower matte chrome finished servo feed rolls four inch diameter
Air operated upper servo feed roll lift / pilot (dual cylinder)
Cabinet base mounted with pass line adjustments
Hand crank entry stock width edge guides

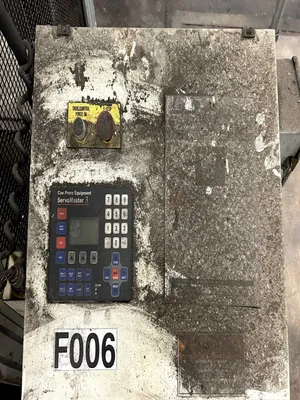

Coe Press Mounted Servo Master 3 Control
