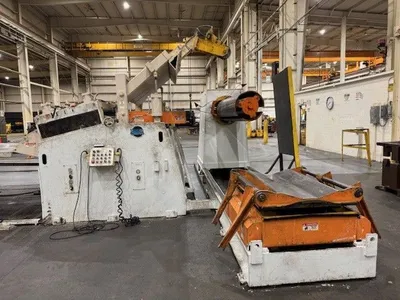

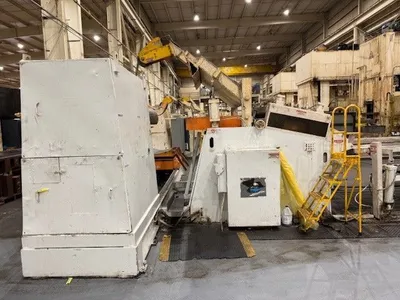

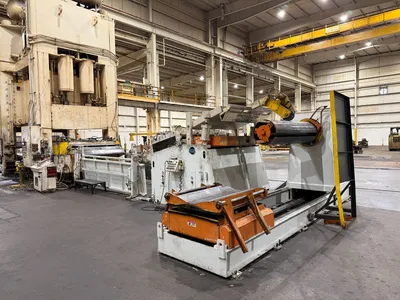

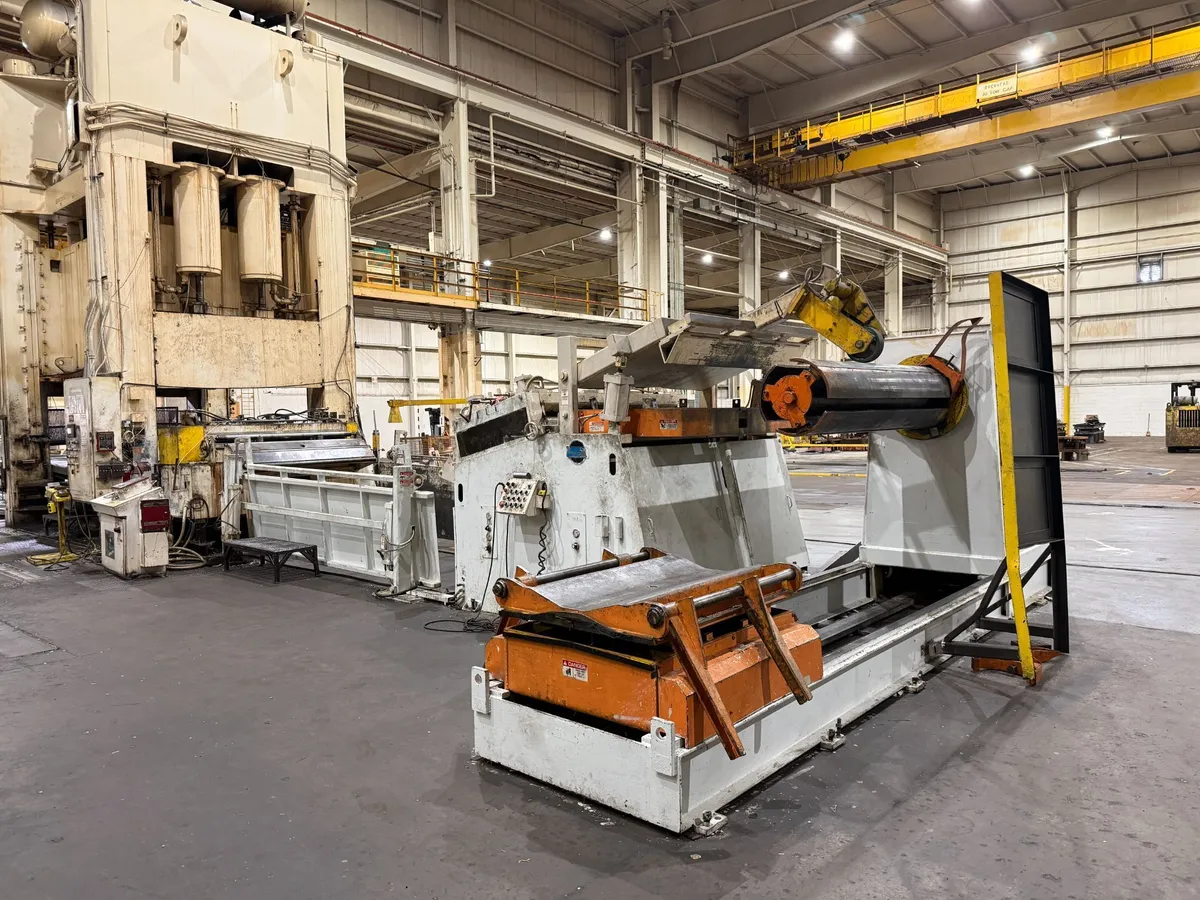

Coe 72” wide x 30,000 # Coil Reel and Powered Straightener with Cabinet Mounted Servo Feed
ConditionUsed
1 available

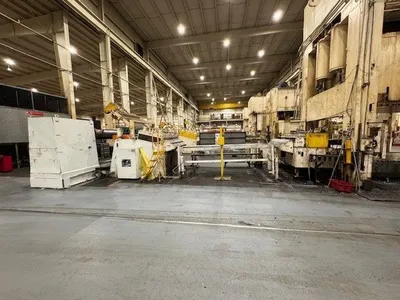

Coe 72" wide x 30,000lbs Coil Feedline
Stock Thickness Capacity: 72” wide x .0090” thick material
............................................ 36” wide x 0.125” thick material
Coil I.D. Range: 20-24”
Coil O.D.: 72”
Power Supply: 460/3/60
Feed Direction: Right To Left
Model: CPTCC-30072 / CPPS-305-72 / CPRF-772
Serial #: 32882
Coil Weight Capacity: 30,000lbs
Coil Width Capacity: 72”
Stock Thickness Capacity: 72” wide x .0090” thick material
............................................ 36” wide x 0.125” thick material
Coil I.D. Range: 20-24”
Coil O.D.: 72”
Power Supply: 460/3/60
Feed Direction: Right To Left

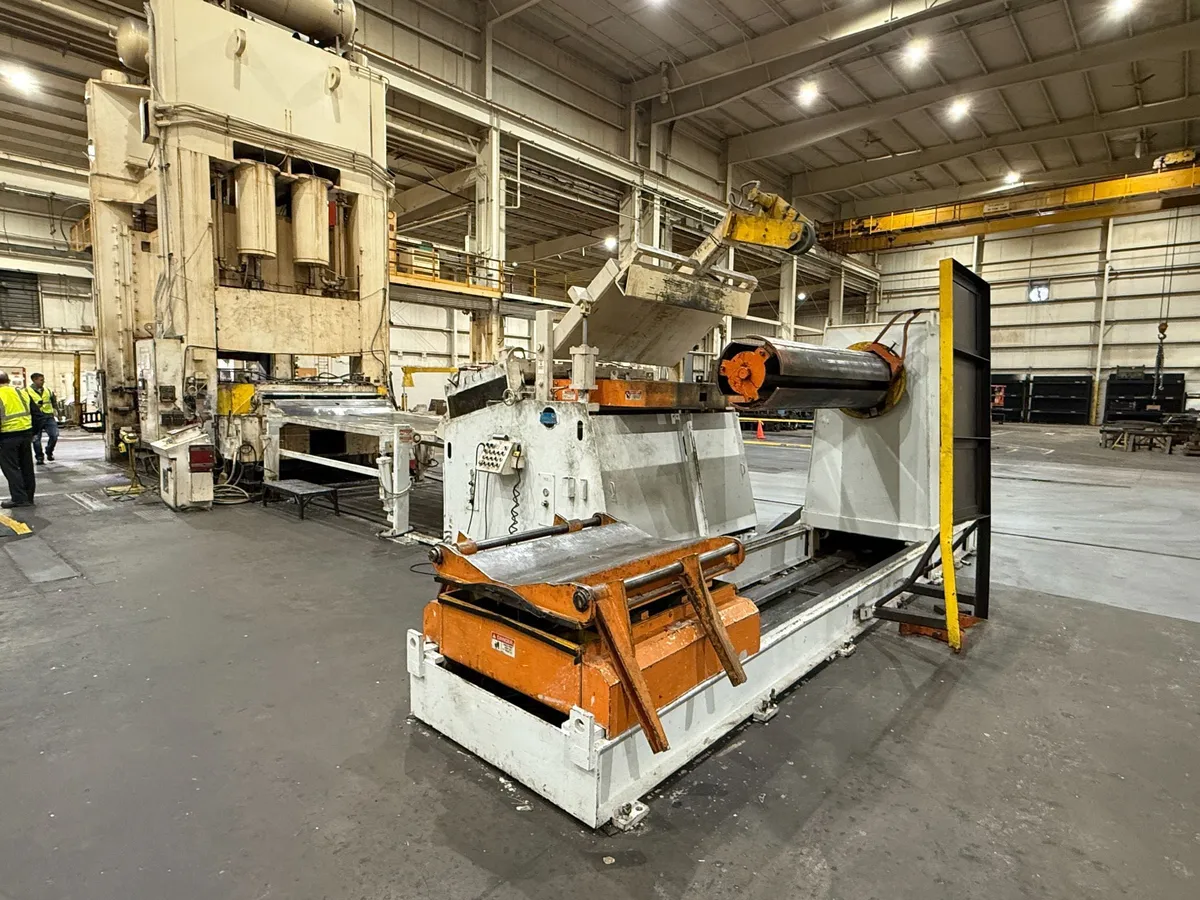

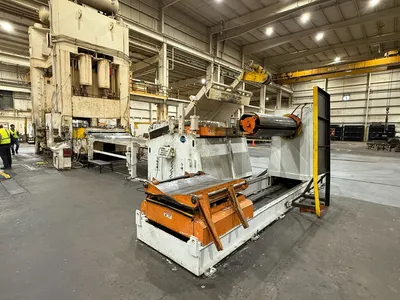

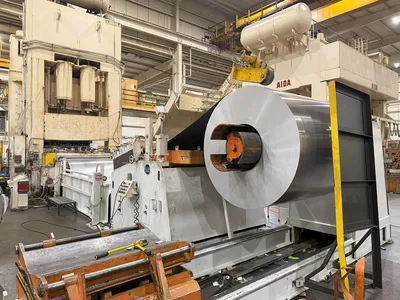

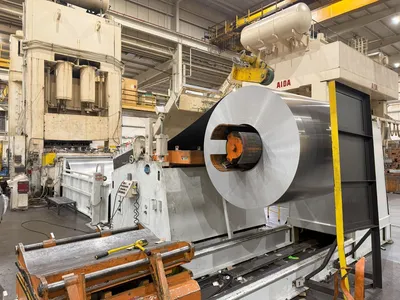

Coe Coil Reel (Model: CPTCC-30072)
Three leaf mandrel
Hydraulic mandrel expansion
Air brake (adjustable tensioning)
Jog drive for threading
Travelling Coil Load Car (Model: CPTCC)
Hydraulic Lift for Coils
Spindle Jog Forward/Reverse
Coe Powered Coil Straightener (Model: CPPS-305-72)
Seven straightening rolls x 3” diameter
Siko Indicators above rolls
Allen Bradley Powerflex 700 Variable Speed Drive
30 HP AC Drive Assembly
Individual upper straightening roll adjustments
Pinch rolls with air operated adjustments
Hold Down Arm (Hydraulically Actuated)
Peeler/Threader/Debender Unit
Motorized End Wheel
Exit and Entry Pinch Rolls
Adjustable stock width edge guides
Exit cascade loop support rollers
Variable speed drive
Auto / run loop control
Operator's stations
Air Operated Dual Thread Table with Ultrasonic Loop Control

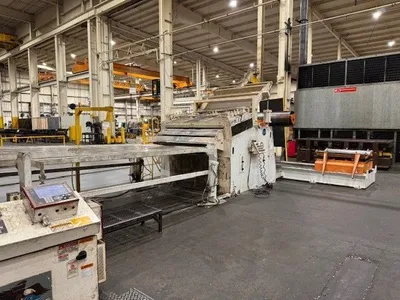

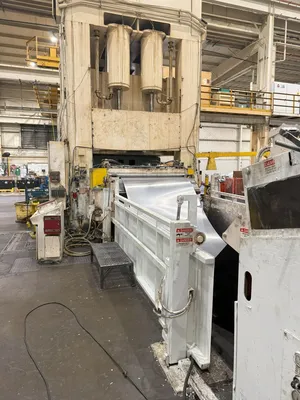

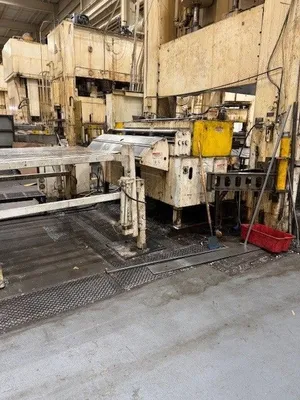

Coe 72" wide Cabinet Mounted Feeder (Model: CPRF-772)
Capacity: 72” wide x 0.090” thick mat.
36” x 0.125” thick mat.

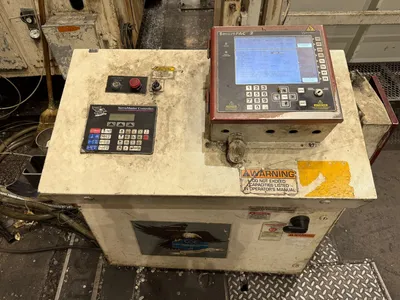

Coe Servo Master Control Console
Adjustable Base Feeder (+/- 4”)
7” diameter Feed Rolls
Entry Edge Guides
Entry Cascade Rollers
Motors and Controls
