Coe 72" wide x 30,000lbs Servo Feedline

Coe 72" wide x 30,000 # Complete Servo Feedline, 72" wide x 0.187" thick material, 36" wide x 0.250" thick material, Coe Coil Reel with Travelling Coil Car, Coe Powered Straightener, Coe Cabinet mounted servo feed

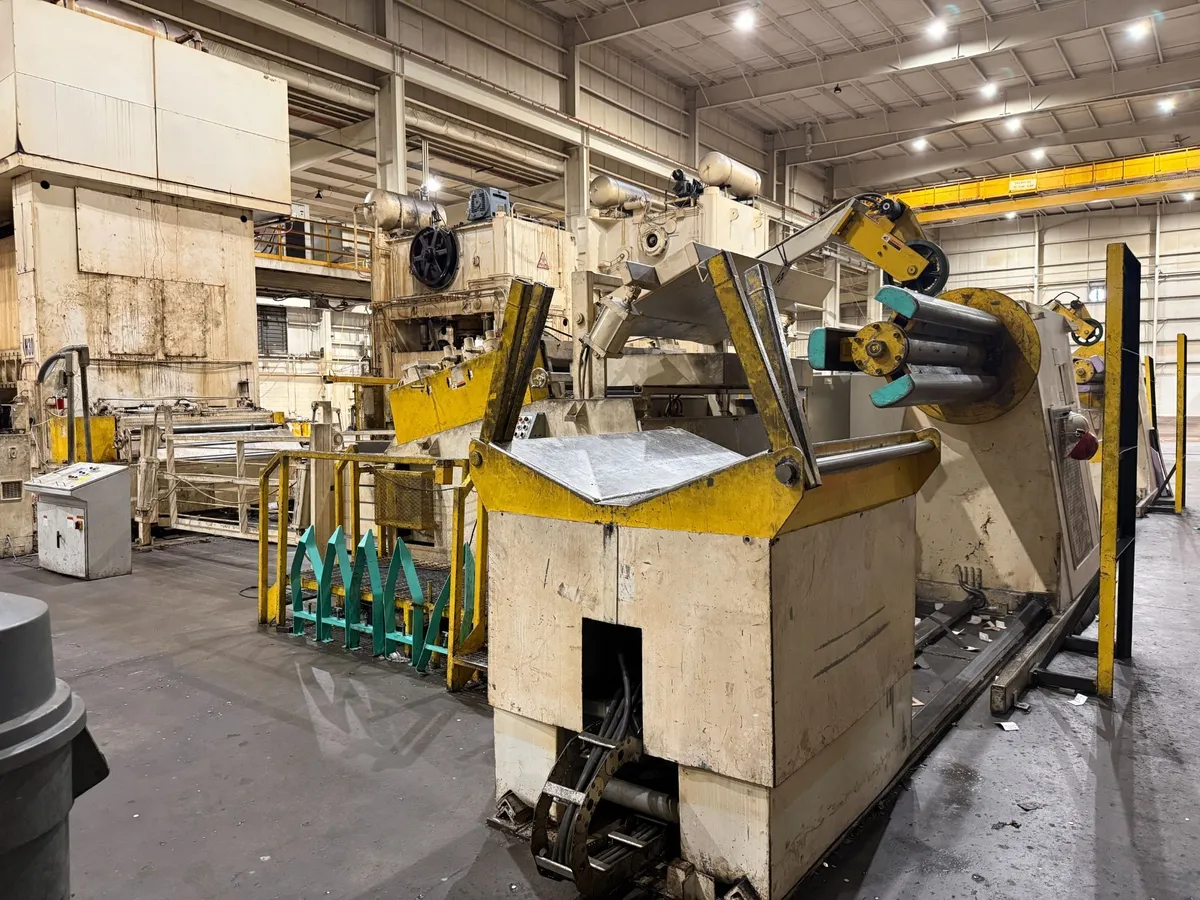

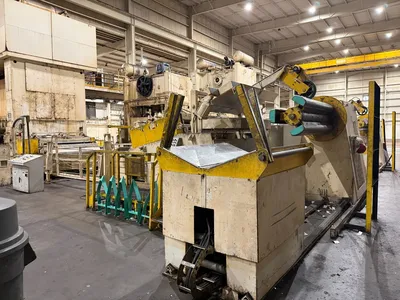

Coe Coil Reel (Model: CPR-PO-300-72)
Three leaf mandrel
Hydraulic mandrel expansion
Air brake mounted on main spindle
Jog drive for threading
Travelling Coil Load Car (Model: CPTCC)
Hydraulic Lift for Coils

Coe Powered Coil Straightener (Model: CPPS-PO-500-72)
Seven straightening rolls x 5” diameter
Individual upper straightening roll adjustments
Pinch rolls with air operated adjustments
Hold Down Arm (Hydraulically Actuated)
Motorized End Wheel
Stock Peeler table with integrated end De-bender
Exit and Entry Pinch Rolls
Exit cascade rollers
Adjustable stock width edge guides
Exit cascade loop support rollers

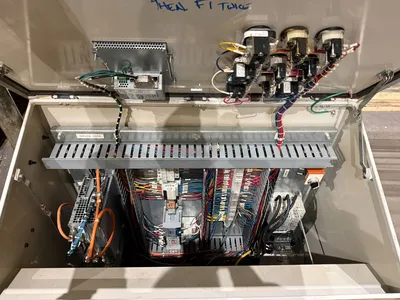

Updated Allen Bradley AC Variable Freq Drive and control system
Auto / run loop control

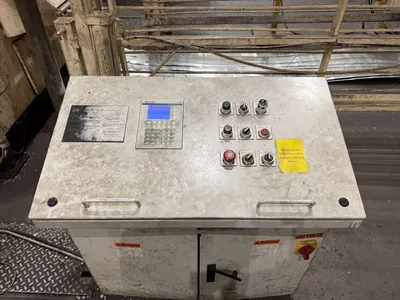

Operator's stations

Dual Thread Table with Loop Control (Model: CPTT-1572)

Coe Cabinet Mounted Feeder (Model: CPRF-872)
8” diameter Upper and Lower Feed Rolls
Pilot Release of upper rolls
Cabinet Base Mounted
Entry Cascade Loop Support Rollers
AC Servo Drive and Controls
Adjustable Base Feeder
Motors and Controls
