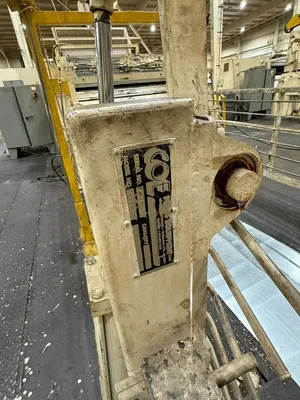

Coe 72" wide x 30,000 # Servo Feedline
ConditionUsed
1 available
Coe 72" wide x 30,000 # Complete Servo Feedline, 72" wide x 0.187" thick material, 36" wide x 0.250" thick material, Coe Coil Reel with Travelling Coil Car, Coe Powered Straightener, Coe Cabinet mounted servo feed
Model: CPR-30072 / CPPS-PO-50072 / CPRF-8-72
Serial #: S387207
Coil Weight Capacity: 30,000lbs
Coil Width Capacity: 72”
Stock Thickness Capacity…………72” wide x .187” thick material
....................……………………………….. 36” wide x 0.250” thick material
Coil I.D. Range: 23-27”
Coil O.D.: 72”
Power Supply: 460/3/60
Feed Direction: Right To Left
Coe Coil Reel (Model: CPR-300-72)
Three leaf mandrel
Hydraulic mandrel expansion
Air brake mounted on main spindle
Jog drive for threading
Travelling Coil Load Car
Hydraulic Lift for Coils
Coe Powered Coil Straightener (Model: CPPS-PO-500-72)
Seven straightening rolls x 5” diameter
Individual upper straightening roll adjustments
Pinch rolls with air operated adjustments
Hold Down Arm (Hydraulically Actuated)
Motorized End Wheel
Stock Peeler table with integrated end De-bender
Exit and Entry Pinch Rolls
Exit cascade rollers
Adjustable stock width edge guides
Exit cascade loop support rollers
Updated Allen Bradley AC Variable Freq Drive and control system
Auto / run loop control
Operator's stations
Dual Thread Table with Loop Control (Model: CPTT-1572)
Coe Cabinet Mounted Feeder (Model: CPRF-8-72)
8” diameter Upper and Lower Feed Rolls
Pilot Release of upper rolls
Cabinet Base Mounted
Entry Cascade Loop Support Rollers
AC Servo Drive and Controls
Adjustable Base Feeder
Motors and Controls
