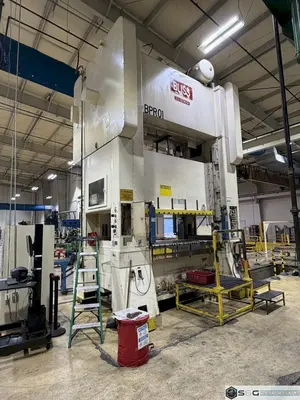

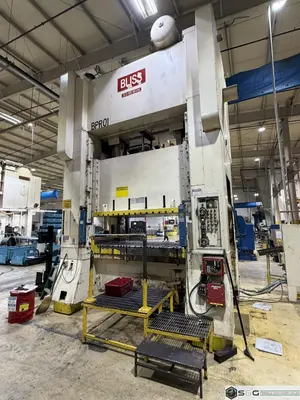

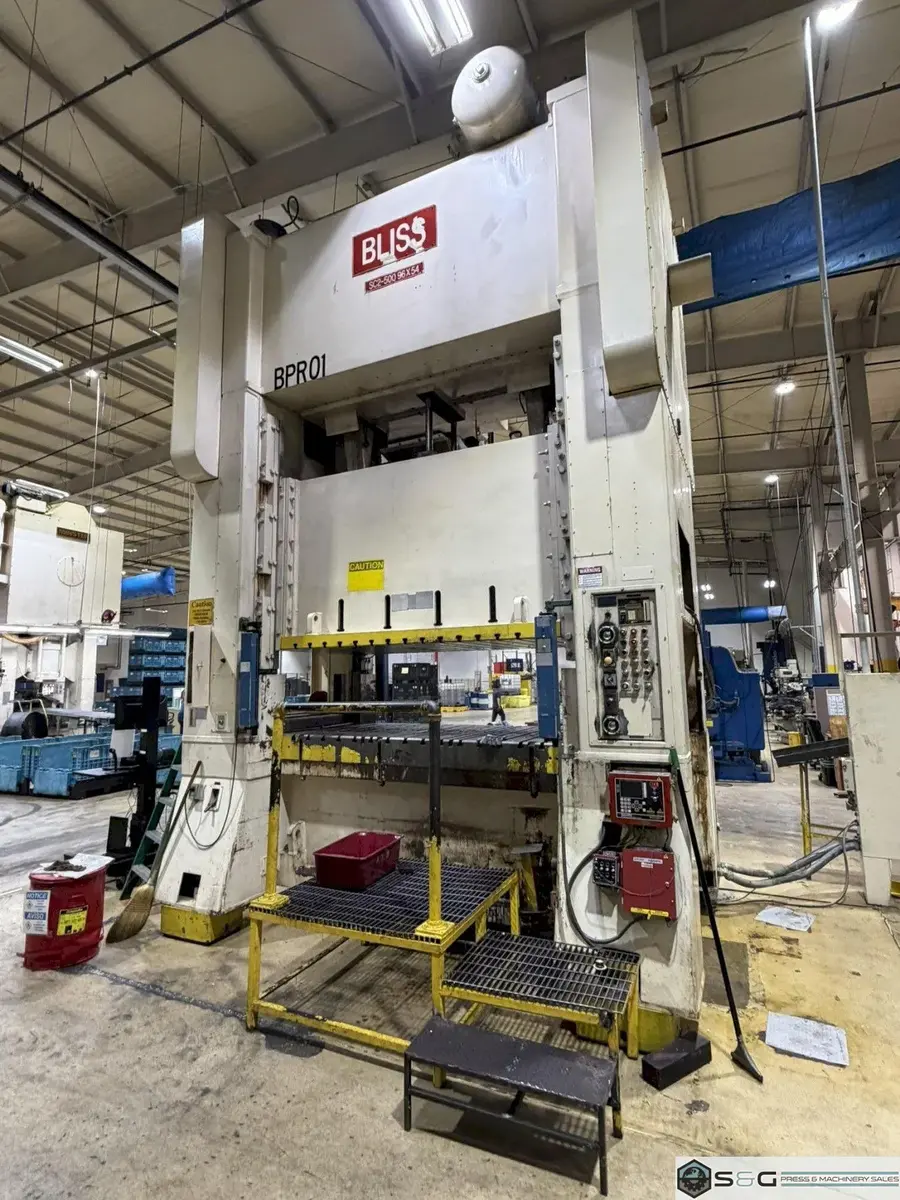

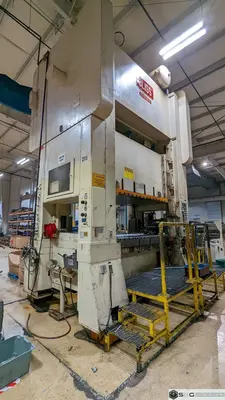

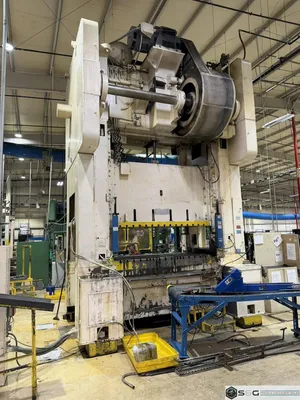

500 Ton Bliss SSDC Mechanical Press, SC2-500-96-54
ConditionUsed
1 available
Bliss 500 Ton Straight Side Mechanical Press, Bed Area: 96" x 54", Stroke: 12", 20-50 SPM, 37" Shut Height, 43" wide window, New in 1990, Smart Pac Press Control
Model Number: SC2-500-96-54
Year of Manufacture: 1990
Bed Area: 96” x 54”
Slide Area: 96” x 54”
Stroke: 12”
Strokes per Minute: 20-50
Shut Height: 37” SDAU over bolster
Bolster Plate: 8” thick t-slotted plate
Slide Adjustment: 12”
Windows: 43” wide window
Overall Height: 20’10” floor to top of Main Motor
Footprint Dimensions: 158” LR x 107” FB
Overall Weight: 163,470 lbs
Floor Standing
Type ‘AK’Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
Hydraulic Tie Rod Nuts
T-Slotted Ram and Bolster
75 HP DC Dynamatic Main Motor (1650-560 RPM)
Dual Ross Valve
8 Point Gibbing
Motors and Controls
Wintriss Shadow 9 Light Curtains
Wintriss Resolver

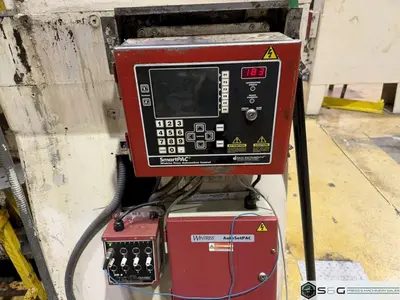

Wintriss Smart Pac Control
Wintriss Programmable Outputs
Wintriss Die Protection DSI 2 8 input
Wintriss Auto Set Pac
Motorized Ram Adjustment
Vibration Isolation Levelers
