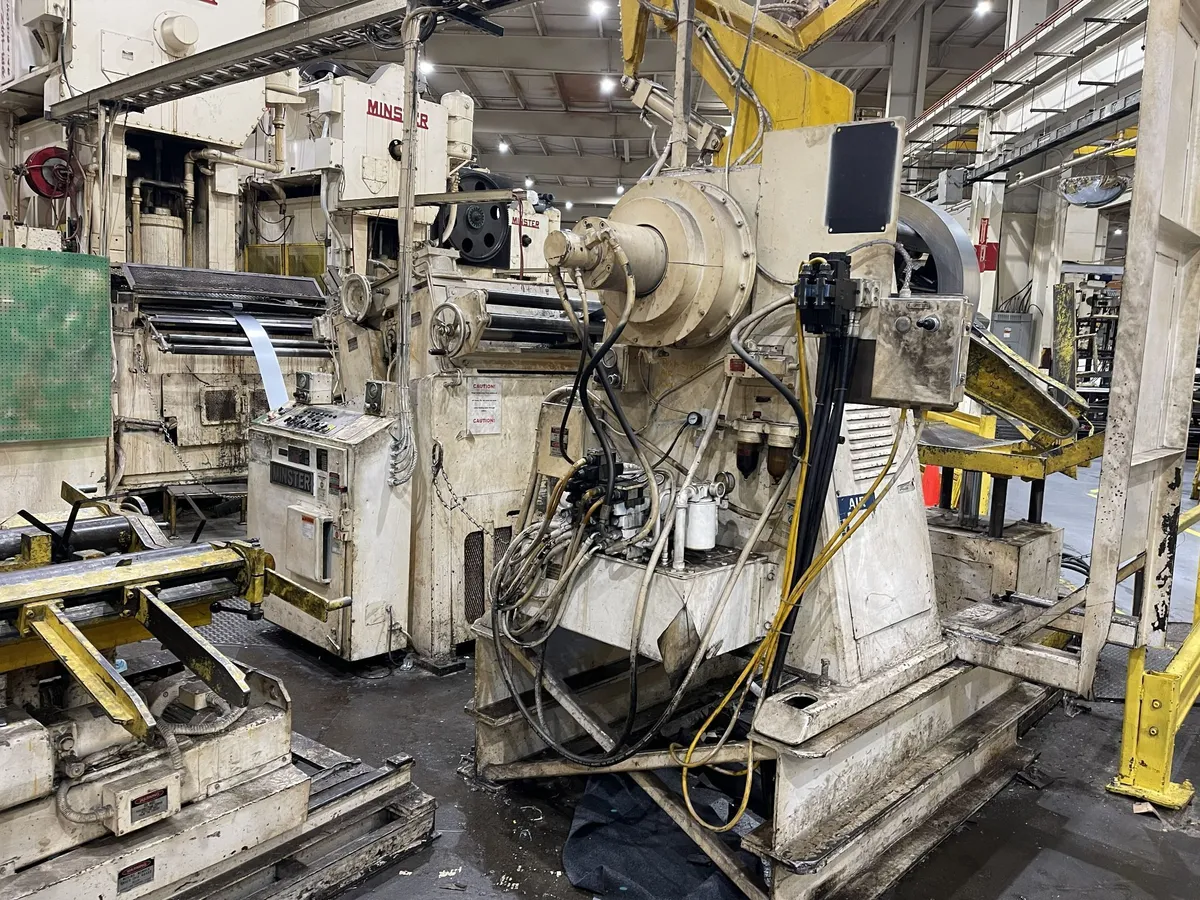

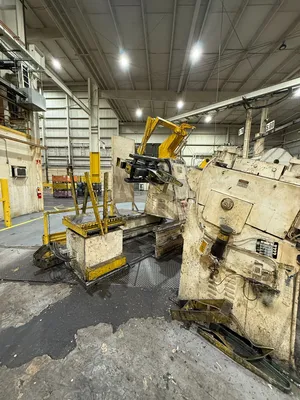

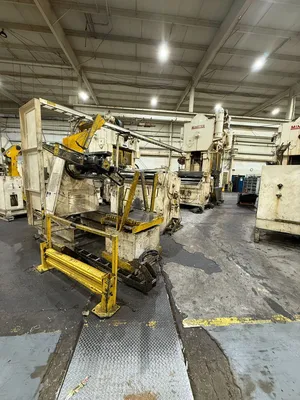

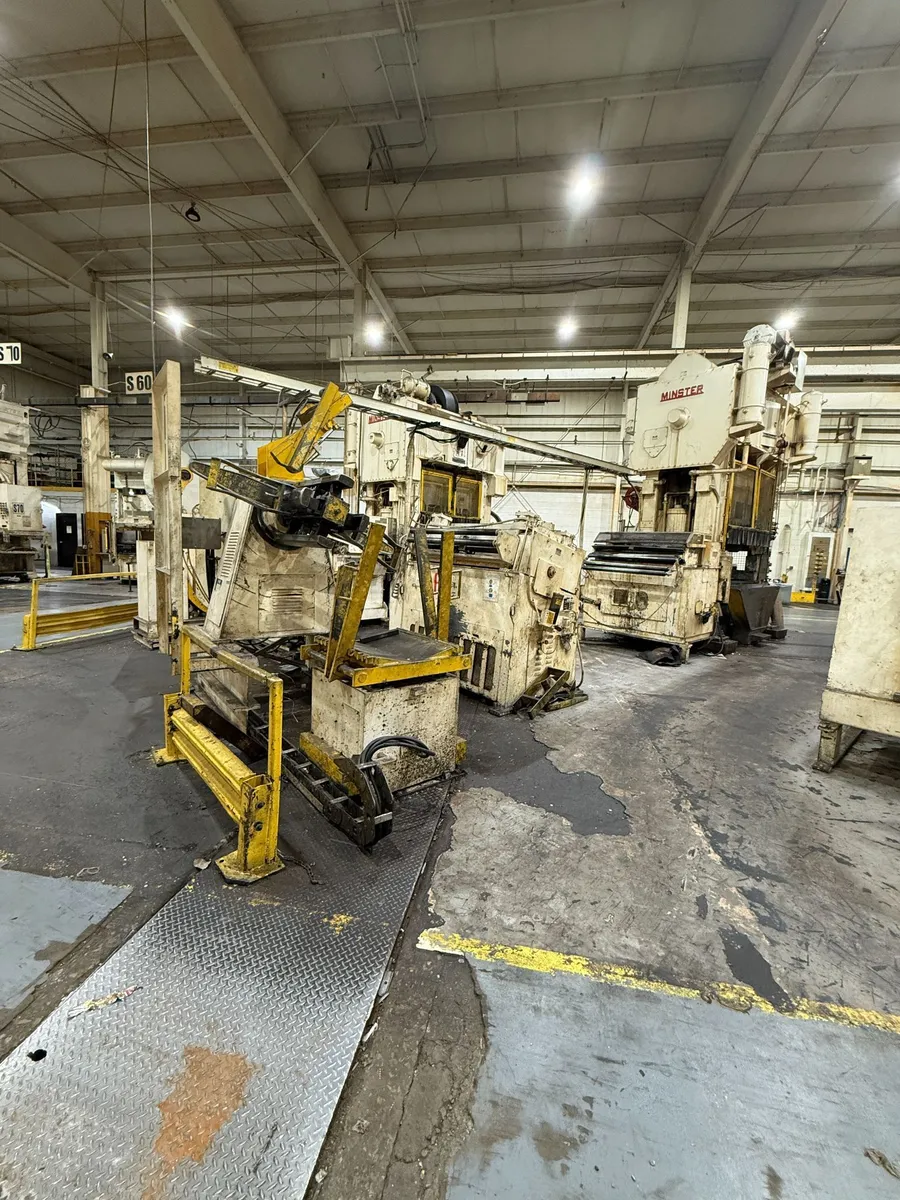

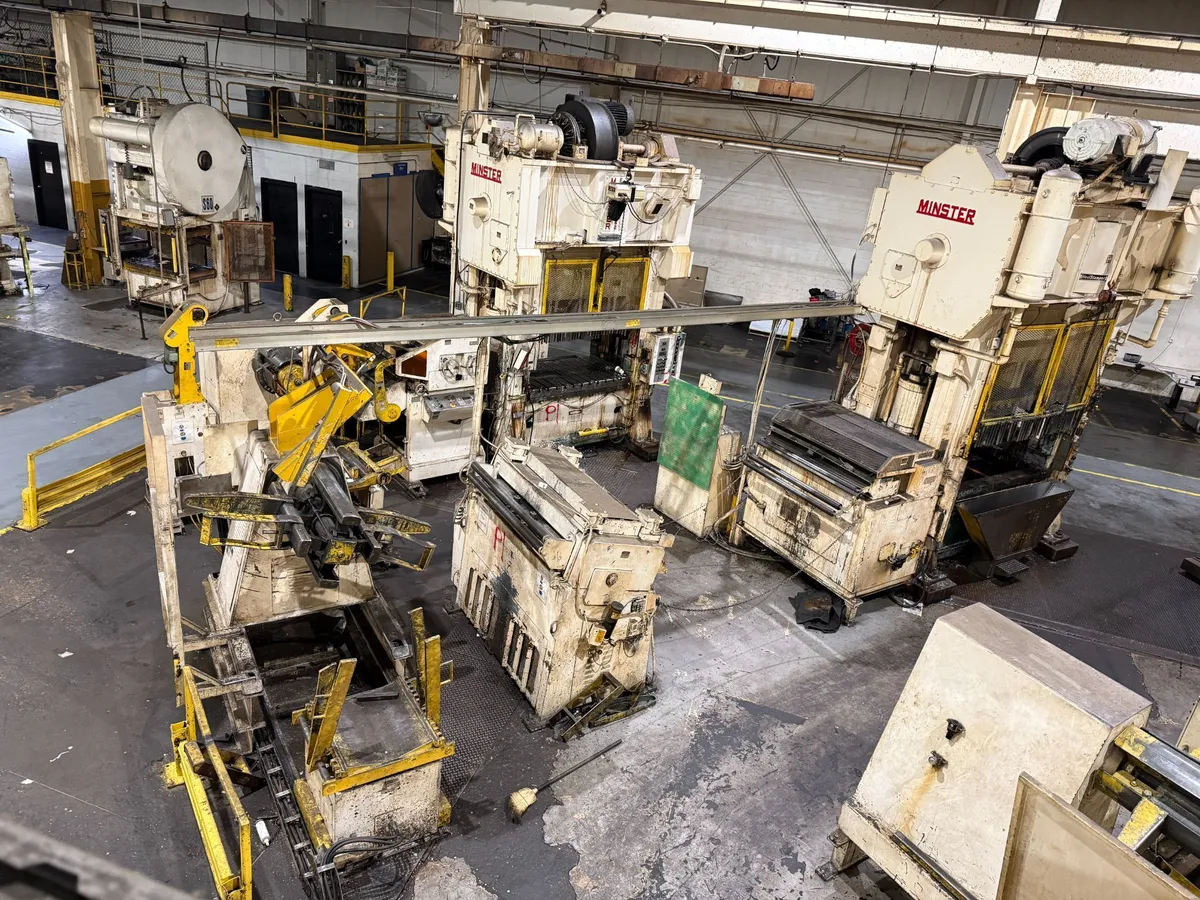

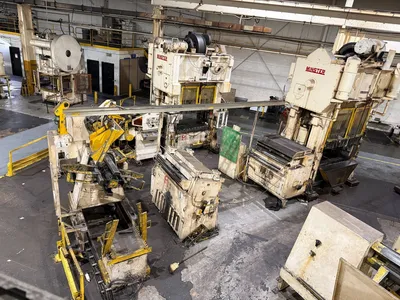

Minster 32" wide x 10,000lbs Coil Feed Line

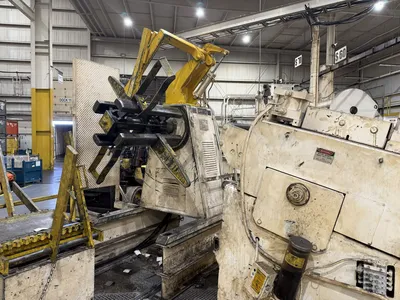

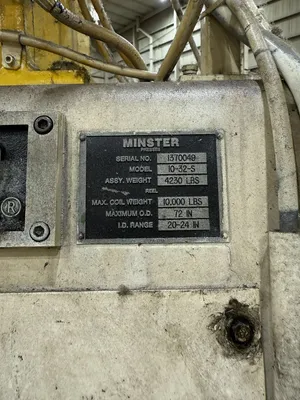

MINSTER SINGLE HEAVY DUTY NON-DRIVEN AUTOMATIC CENTERING REEL (Model: 10-32-S)
Four (4) arm expansion hydraulic link type mandrels with a solenoid operated valve.
Guiding by followers with center guide on mandrel segments.
Two (2) keeper arms per each mandrel segment with locking mechanism.
SAE 4140 mandrel shaft mounted in tapered roller bearings.
Pneumatic drag tension brake mounted on mandrel shaft adjusted thru pressure regulator
Payoff direction: Right to Left
Coil Weight: Maximum: 10,000 lbs
Coil Width: Maximum 32"
Coil I.D. Range: 20" to 24"
Coil O.D., Maximum: 72"
Maximum Line Speed: 100 FPM (1200" Per Min.)
Max. Strip Thickness: 0.250
Voltage: 480/3/60

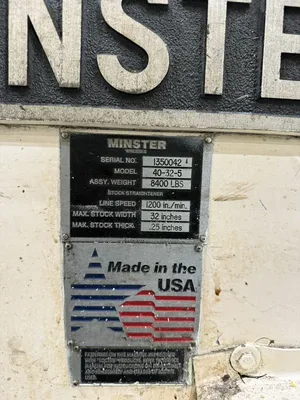

MINSTER HEAVY DUTY VARIABLE SPEED STOCK STRAIGHTENING MACHINE (Model: 40-32-5)
Furnished with five (5) work rolls mounted in anti-friction bearings 4.00" diameter x 34.12" wide smooth chrome finish.
Upper rolls adjustable individually or collectively, by manual handwheel with indicator.
Two (2) sets of air actuated pinch rolls mounted in anti-friction bearings; 6.28" diameter x 34.12"
wide, smooth chrome finish.
Pinch rolls and work rolls (upper and lower) driven through a gear train. Driven by a 15 HP, eddy current
motor through a reducer and chain to gear train.
Overstock loop arm controlling the eddy current motor to maintain the loop of stock between straightener
and press

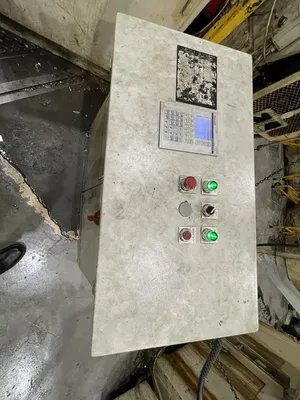

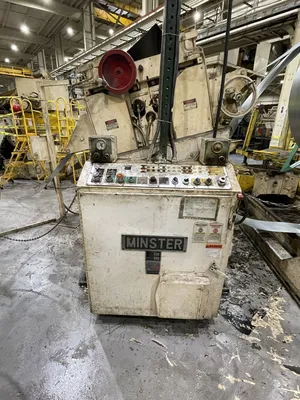

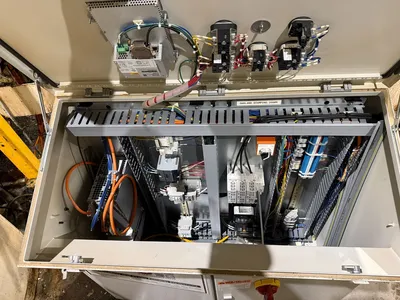

All electrical controls included
Feed line height - 56" at exit end of 15 degree inclined head.
Feed direction is right to left.
Includes stock catenary on exit end and individually
operated stock guides for centerline or offset
positioning of strip on entry side.
Timed lube pump with reservoir for lube system.
Strip Thickness: 0.25" Maximum - 0.034" Minimum
Strip Width: 32"
Material: Mild steel (40,000 PSI yield strength)
Speed : 1200" Per Minute with 10% overspeed (maximum).
Voltage: 480/3/60

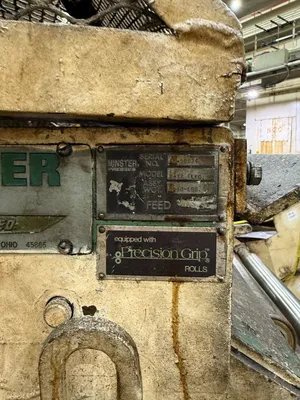

Minster Single Roll Electric Drive Feed (Model: 7-32)
Low inertia feed rolls are 6.366" in diameter
Standard hardened and ground smooth chrome finish
Both upper and lower feed rolls are mounted in anti-friction bearings and are driven thru precision square gearing to maintain full tooth engagement during roll lift and varying material thicknesses.
Includes electro-hydraulic automatic roll lifters
Roll lift dwell and position is totally adjustable thru a programmable limit switch.
A manual control is provided to open rolls for strip
Material is automatically clamped in event of a power loss.
Power feed line height adjustment thru full range driven by a hydraulic motor
Voltage: 480/3/60
