| Tonnage | 400 T | 362.874 t |
| Stroke | 10" | 254 mm |
| Shut Height | 24" | 609.6 mm |
| Bed area (Left to right) | 96" | 2,438.4 mm |
| Bed area (Front to back) | 48" | 1,219.2 mm |
| SPM max. | 25 strokes/min. | 25 strokes/min. |
400-ton Capacity
10" Stroke
32" Shut Heigh on Bed
24" Shut Heigh on Bolster
10" Motorized Adjustment
96" LR x 48" FB Bed Area
96" LR x 48" FB Slide Area
21-61 VSPM
Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
8" Thick T-Slotted Ram and Bolster
Wintriss Shadow V Light Curtains
Wintriss AutoSet 1504
Wintriss Brake Monitor

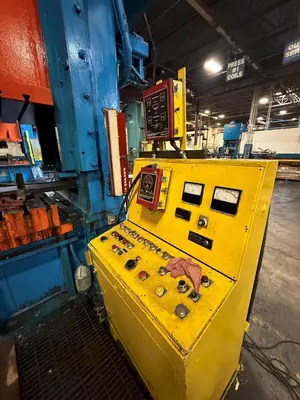

Free Standing Console Controls
Wide Windows
Vibro Dynamic Floor Pads
Floor Standing
