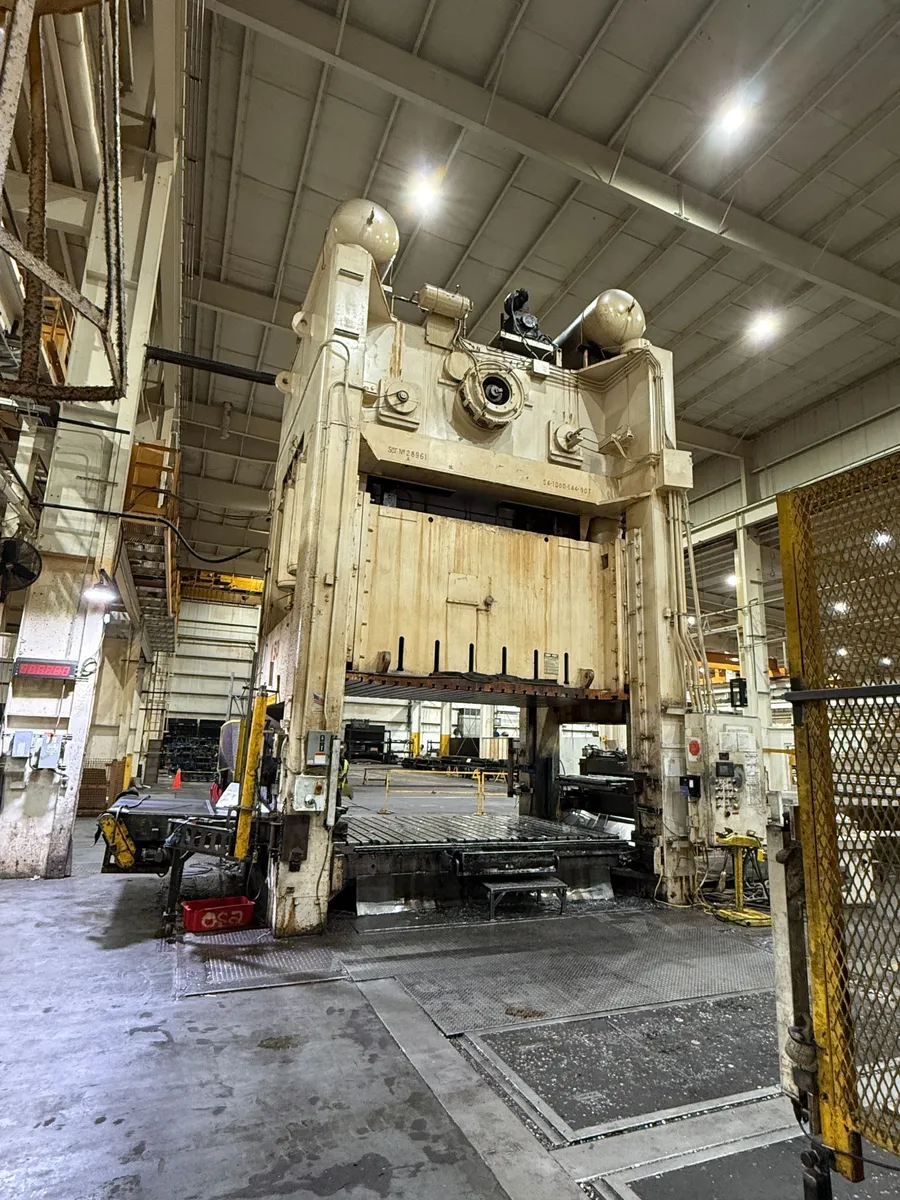

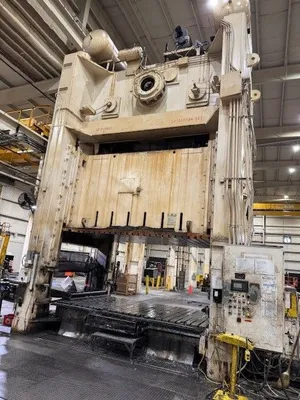

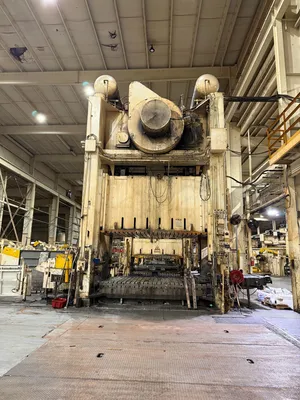

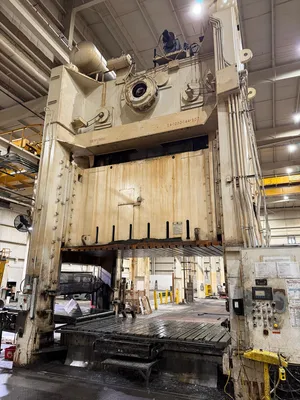

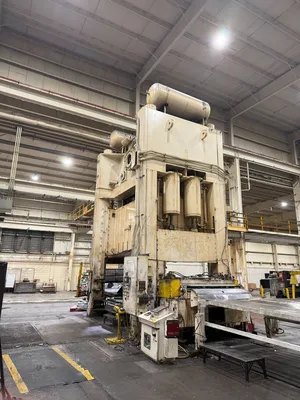

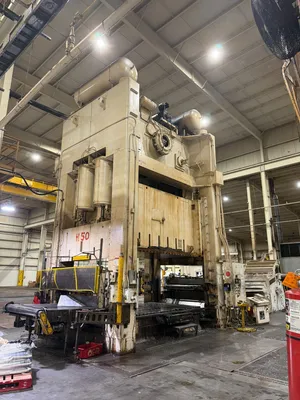

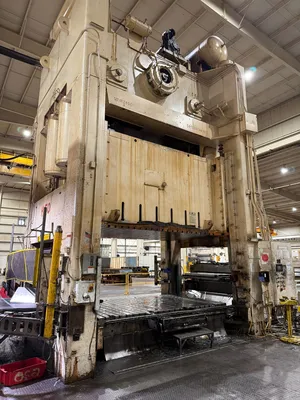

Verson 1000 ton Straight Side Mechanical Press, 144" x 90" Bed Area, 24" Stroke, 10-20 SPM, 70" Shut Height
Capacity.... ................................................. 1000 Tons
Model Number……………………………... SE4-1000-144-90T
Year of Manufacture……………………….. 1990
Bed Area........................................................ 144” x 90”
Slide Area………………………………….. 144” x 90”
Stroke............................................................. 24”
Adjustment..................................................... 24”
Shut Height.................................................... 70” over bed SDAU
Shut Height (Over Bolster)………………… 50” over rolling bolster
Shut Height over rolling bolster&bolster…..40”
Strokes per Minute......................................... 10-20
Windows…………………………………… 96” wide x 72” high
Footprint Dimensions……………………… 197” LR x 195” FB
Bolster Plate Thickness……………………. 10” Thick T-slotted
Overall Height……………………………... 27’ 7” floor to top of Air Tank
Air Clutch and Brake

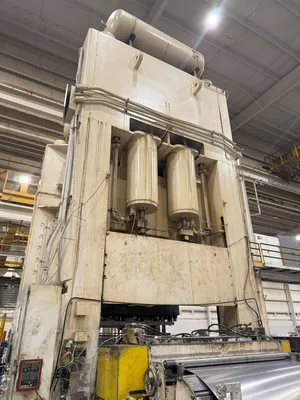

Air Counterbalances
Recirculating Lube System
8 Point Gibbing
T-Slotted Ram and Bolster

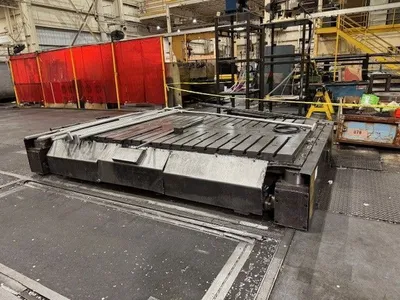

Rolling Bolster
Hydraulic Tie Rod Nuts
Hydraulic Overloads
Wintriss Programmable Outputs

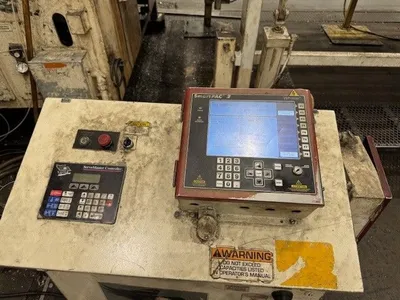

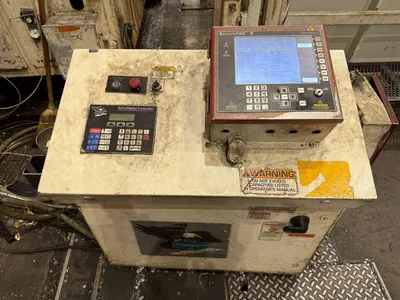

Wintriss Smart Pac 2 press Control
Variable Speed Drive
Main Motor: 200 HP DC Variable Speed Motor
Motors and Controls
