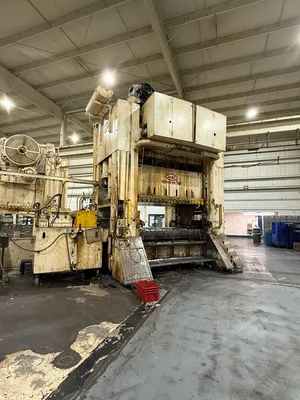

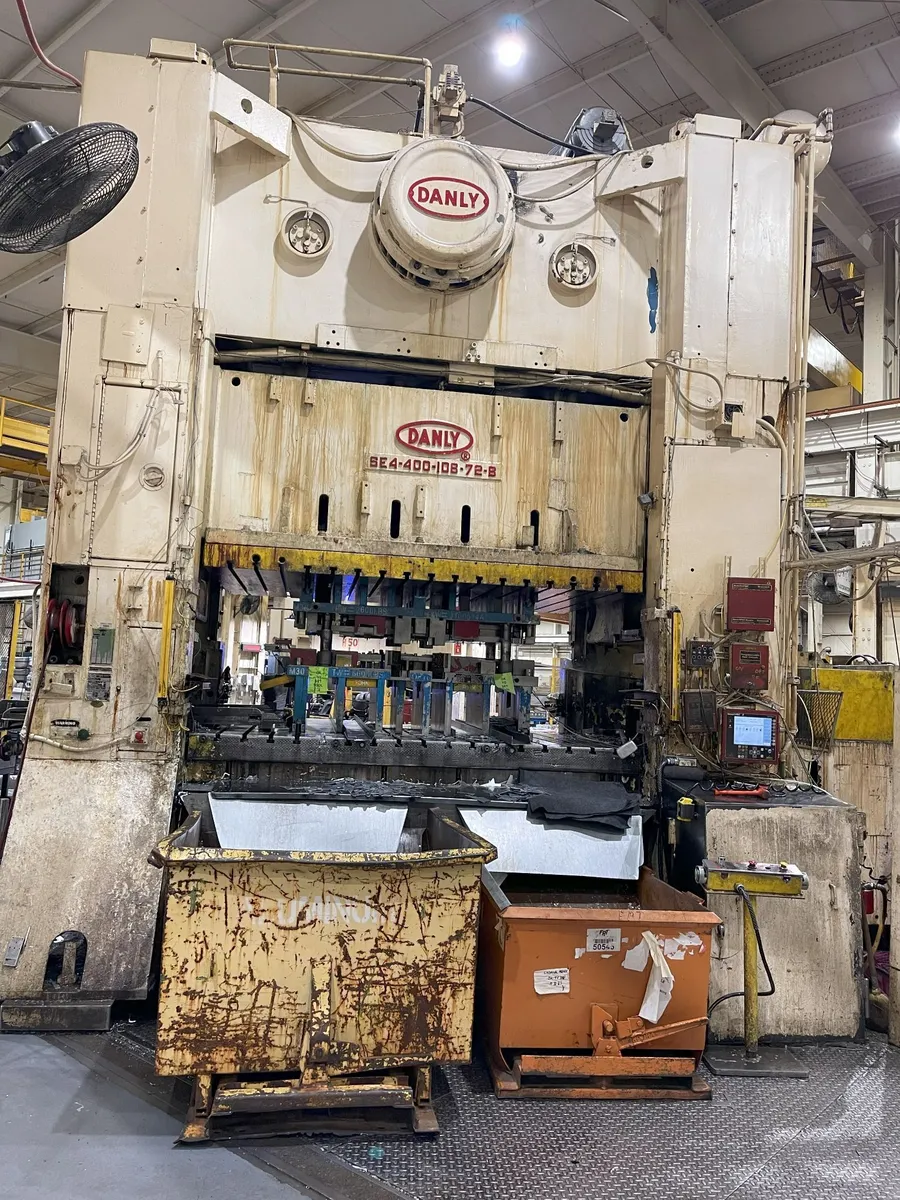

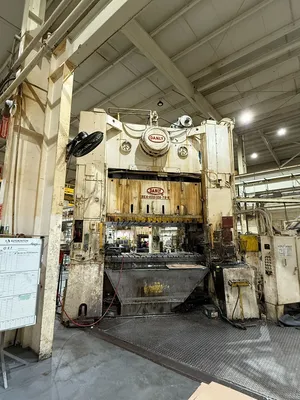

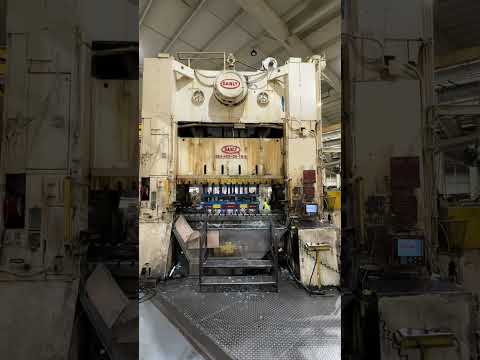

Danly 400 Ton Straight Side Mechanical Press

Sell Your DANLY SE4-400-108x72B
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
Sell Your DANLY SE4-400-108x72B

Overview

Type:
Straight Side Mechanical Stamping Presses
Manufacturer:
DANLY
Model:
SE4-400-108x72B
Year:
1979
Stock #:
710-02560
Status:
For Sale

Description

Danly 400 Ton Straight Side Mechanical Press, 108" x 72" Bed Area, 12" Stroke, 42" Shut Height, 20 - 40 SPM

Tonnage400 T362.874 t
Stroke12"304.8 mm
Shut Height42"1,066.8 mm
Bed area (Left to right)108"2,743.2 mm
Bed area (Front to back)72"1,828.8 mm
SPM min.20 strokes/min.20 strokes/min.
SPM max.40 strokes/min.40 strokes/min.
Adjustment10"254 mm

Model Number: S4-400-108-72
Bed Area: 108” x 72”
Slide Area: 108” x 72”
Stroke: 12”
Strokes per Minute: 20-40
Shut Height: 42” over bed
Shut Height: 35” over bolster
Bolster Plate: 7” thick t-slotted plate
Slide Adjustment: 10”
Windows: 36” wide approx..
Footprint: 174” LR x 141” FB
Overall Height: 19’11 ½”
Floor to top of bed: 44”
Floor Standing

Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Bolster and Ram ( On 6” centers)
Dual Ross Air Valve

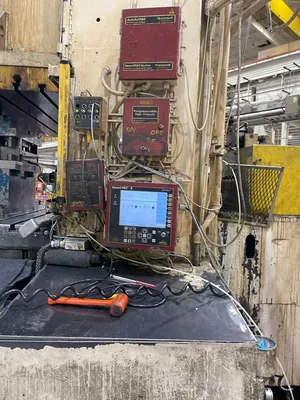

Wintriss Smart Pac 2 Press Control
Wintriss DSI 2 Die Protection
Wintriss Programmable Outputs
Wintriss Autoset Pac
8 Point Gibbing
Motors and Controls
Recirculating Lubrication System
Motorized Ram Adjustment
