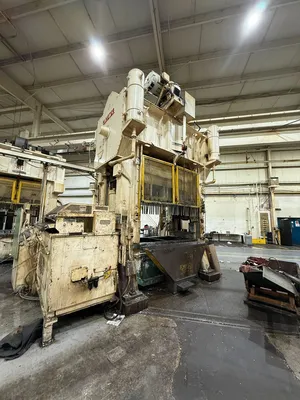

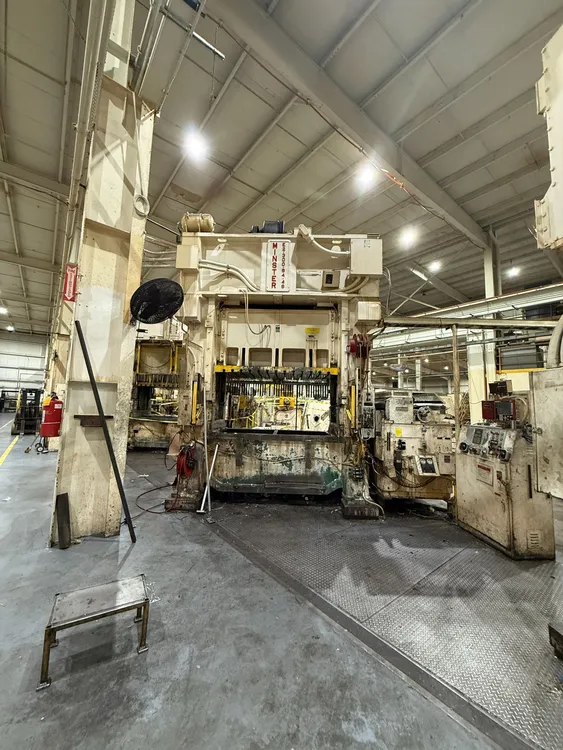

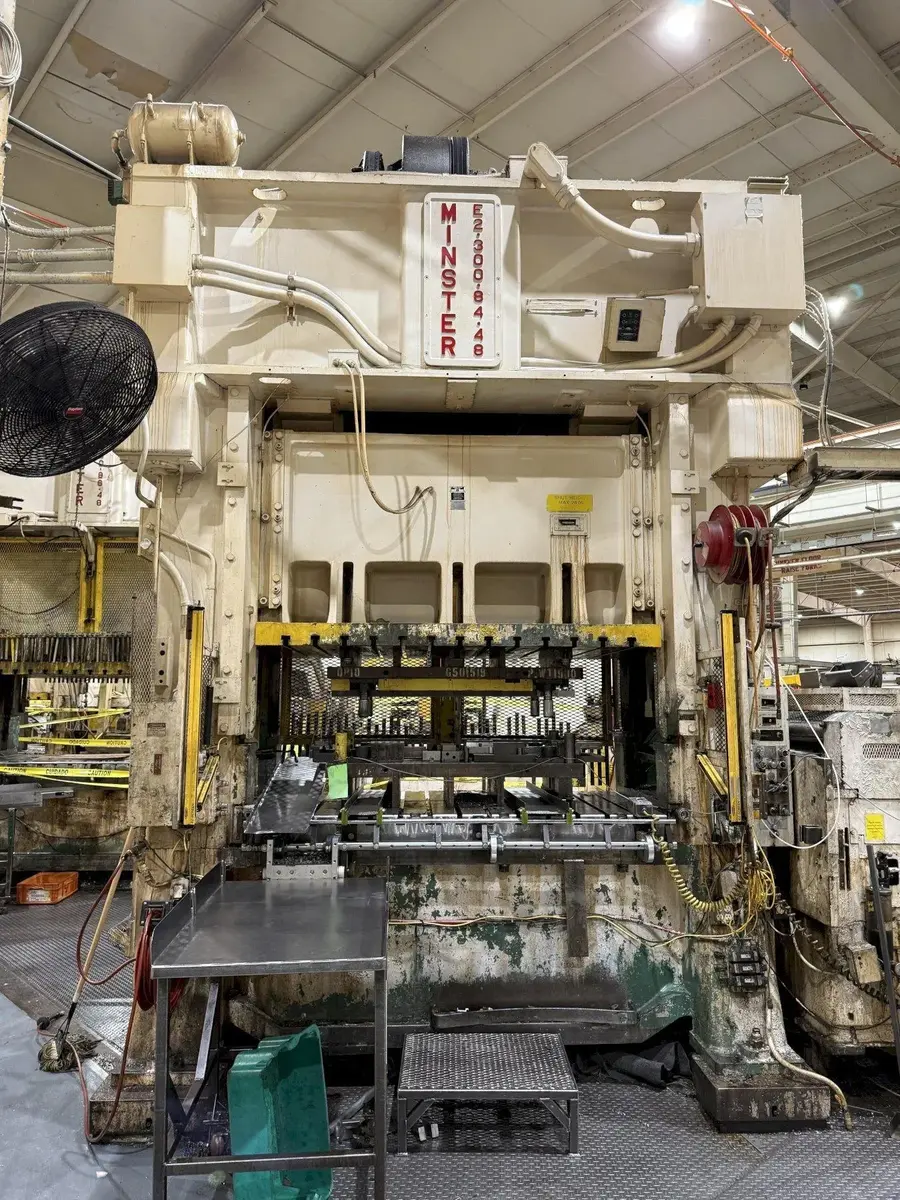

Minster 300 Ton HeviStamper

Sell Your MINSTER E2-300
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
Sell Your MINSTER E2-300

Overview

Type:
Straight Side Mechanical Stamping Presses
Manufacturer:
MINSTER
Model:
E2-300
Year:
1986
Stock #:
710-02559
Status:
For Sale

Description

Minster 300 Ton HeviStamper, 84" x 48" Bed Area, 12" Stroke, 32" Shut Height, 0 - 80 SPM

Tonnage300 T272.156 t
Stroke12"304.8 mm
Shut Height33"838.2 mm
Bed area (Left to right)84"2,133.6 mm
Bed area (Front to back)48"1,219.2 mm
SPM min.0 strokes/min.0 strokes/min.
SPM max.80 strokes/min.80 strokes/min.
Adjustment6"152.4 mm
Windows Width28"711.2 mm

Model Number: E2-300-84-48
Year of Manufacture: 1986
Bed Area: 84” x 48”
Slide Area: 84” x 48”
Stroke: 12”
Strokes per Minute: 0-80
Shut Height: 32” over bed
Shut Height Over Bolster: 26”
Bolster Plate: 6” thick t-slotted plate
Slide Adjustment: 6”
Windows: 27” wide
Main Motor: 50 HP @ 1800 RPM
Floor Standing

Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster ( On 6” centers)
Dual Ross Air Valve

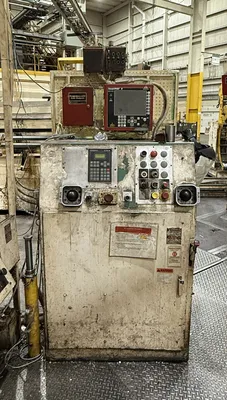

Wintriss Smart Pac 2 Press control
Vertical and Horizontal Light Curtains
Vari Speed Drive
8 Point Gibbing
Motors and Controls
Minster Monitor Flow Lubrication System
Motorized Ram Adjustment
Hydraulic Tie Rod Nuts
