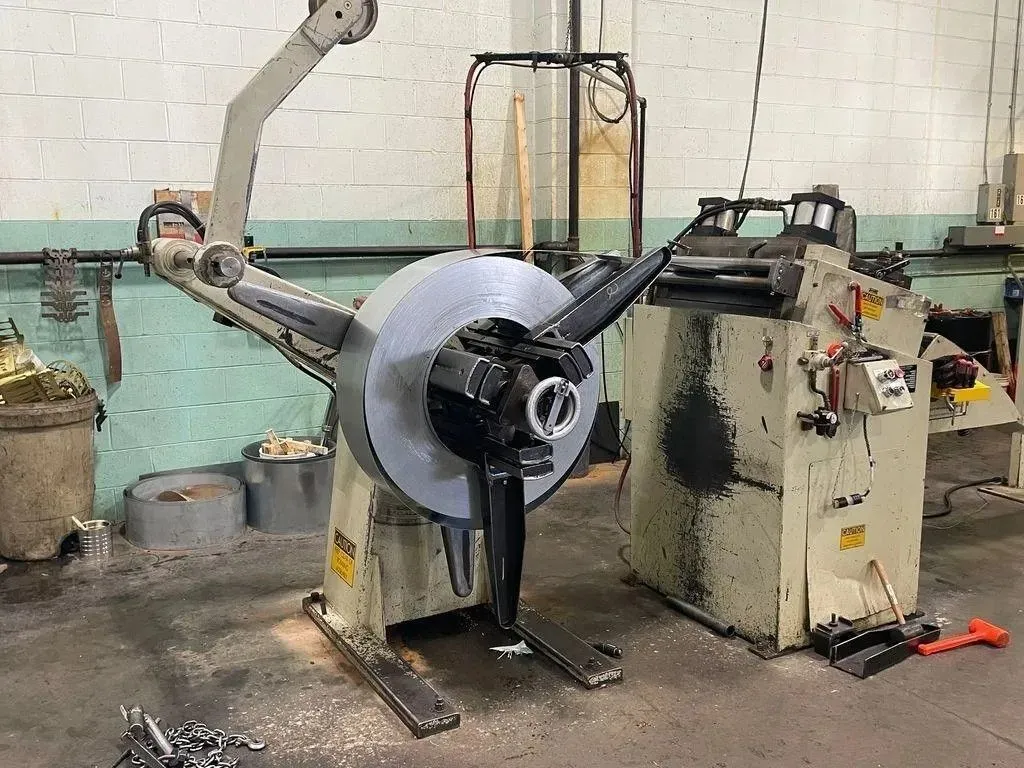

CWP 24" wide x 6,500lbs Double Ended Reel & Powered Straightener

CWP Coil Reel Uncoiler (Pull Off) Model No. 4R-24
Three leaf mandrel
Adjustable coil keeper arms
Front mounted expansion
ID Range 13" - 21" (with removable riser pads)
Air brake mounted on main spindle (adjustable tensioning)
Coil hold down arm

CWP Powered Coil Straightener Model No. 24C
Seven straightener rolls x 2.75" diameter
Entry pinch rolls with air operated adjustments
Adjustable stock width edge guides
Inclined head
Exit cascade loop support rollers
Variable speed payout
Operator's controls
Jog forward and reverse
Variable speed loop control
