| Tonnage | 600 T | 544.311 t |
| Stroke | 24" | 609.6 mm |
| Shut Height | 48" | 1,219.2 mm |
| Bed area (Left to right) | 108" | 2,743.2 mm |
| Bed area (Front to back) | 72" | 1,828.8 mm |
| SPM min. | 20 strokes/min. | 20 strokes/min. |
| SPM max. | 20 strokes/min. | 20 strokes/min. |
| Adjustment | 14" | 355.6 mm |
| Windows Width | 60" | 1,524 mm |

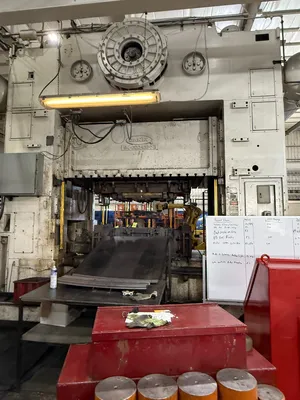

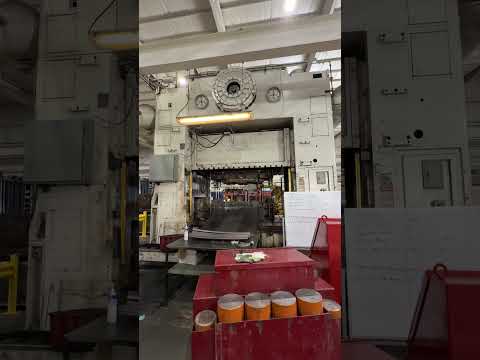

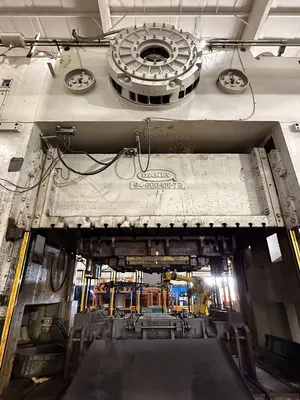

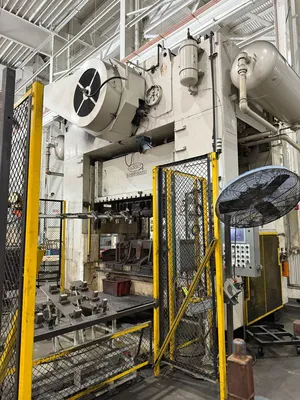

600-ton Danly Straight Side Mechanical
Metal Stamping Press Model #S4-600-108-72
Year 1983 - sn/ 83406201
600-ton Capacity
24" Stroke
38.5" Shut Height
6" Motorized Adjustment
108" LR x 72" FB Bed Area
108" LR x 72" FB Slide Area
20 SPM Fixed
Dimensions:
200" LR x 96" FB
Overall Height: 226.5" Tall Floor to Highest point
Weight: 235,000 lbs.
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Dual Ross Valve

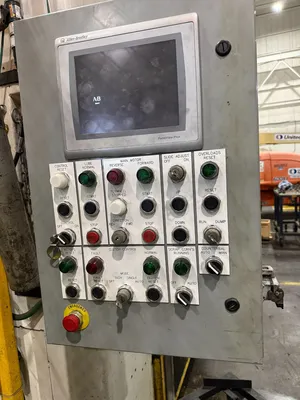

Allen Bradley Touch Screen Press Control
8 Point Gibbing
Motors and Controls
Hydraulic Tie Rod Nuts
Vibration Isolation Levelers
Motorized Ram Adjustment
