COE 24" wide x 15,000 lbs Servo Feed Line

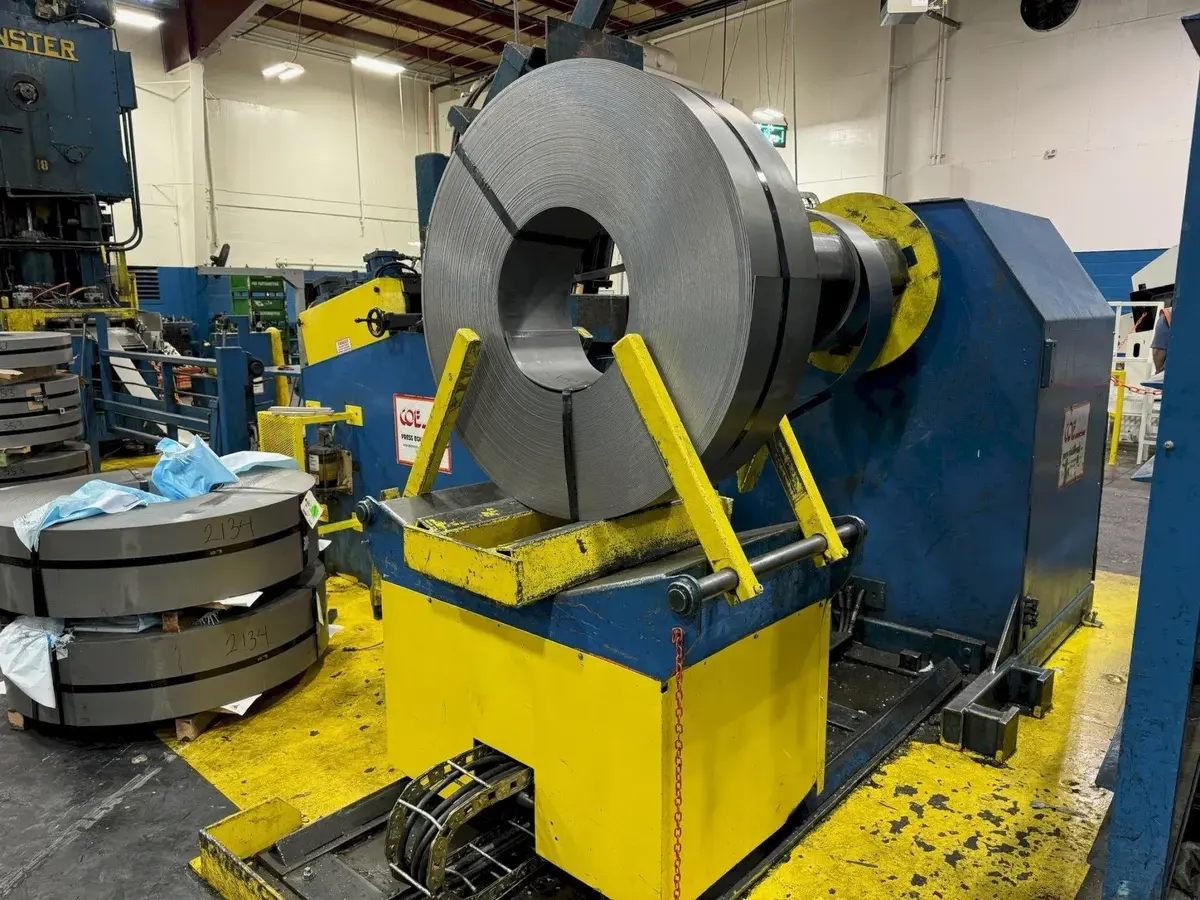

Coe Press Pull Off Coil Reel Uncoiler Model No.: CPR-PO-15024, Serial No.: 8314-4
Three leaf mandrel
Hydraulic wedge type madrel expansion
Adjustable coil keeper arms
Thread drive for jog forward and reverse
Air brake mounted on main spindle
Adjustable tensioning
Self contained hydraulic unit
Traveling coil load car
Powered lift and travel

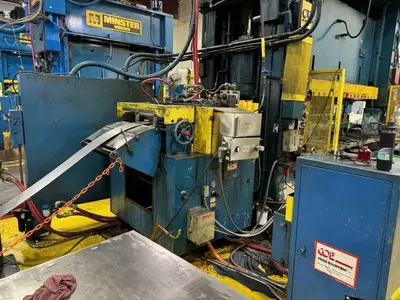

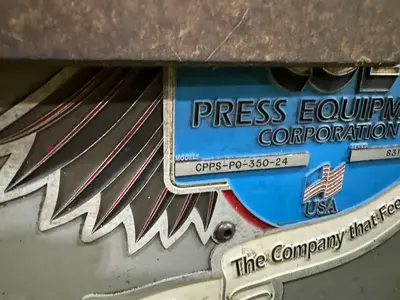

Coe Press Powered Straightener Model No.: CPPS-350, Serial No.: 8314-3
Entry and exit pinch rolls with air operated upper pinch roll adjustments
Seven straightening rolls x 3.5 inch diameter
Individual upper straightening roll adjustments via screw jacks
Adjustable stock width edge guides
Inclined head with exit cascade loop support rollers
Stock peeler - threading - debending station (PTH)
Air operated coil hold down arm with motorized end wheel
Air operated peeler table with spade extension
Out board lubrication points
Outboard air pressure regulator and gauges
Common operator's station for control functions
Hand held pendant for Jog forward and reverse
Auto / Run cycle
Loop control

Coe Press Exit Thread Table
Bomb bay style design

Coe Press Servo Roll Feed
Four inch diameter feed rolls
Matte chrome finish on upper and lower feed rolls
Precision cluster gear driven feed rolls
Pivoting upper feed roll assures gear mesh
Air operated upper roll adjustment / pilot
Heavy duty adjustable stock width edge guides
Cascade loop support rollers
Cabinet base mounted with heavy duty pass line adjustment
AC Servo drive and controls
