American Steel Reel w/ CWP Powered Straightener & Feeder

ConditionUsed

Quantity

1 available

Overview

Type:

Coil Feed Lines

Manufacturer:

Model:

20000 / 30-3.5 / SMX30H6

Stock #:

710-07252

Status:

For Sale

Serial #:

558 / 058818 / 058816

American Steel Reel w/ CWP Powered Straightener & Feeder. (R-L) Feed Direction.

Open to offers! Also open to splitting the line up.

ImperialMetric

Coil Weight Capacity	20,000 lb	9,071.9 kg
Stock Width Capacity	30"	762 mm
Max Stock Thickness Capacity at Full Width	0.125"	3.175 mm
Minimum Expansion Range	19"	482.6 mm
Maximum Expansion Range	24"	609.6 mm
Coil O.D. Capacity	60"	1,524 mm

American Steel Reel: 48" wide x 20,000lbs

CWP Powered Straightener: 30-3.5
30" wide
Capacity Mild Steel min/max: 0.028 - 0.219
3.5" diameter straightening rolls
3.5" diameter pinch rolls

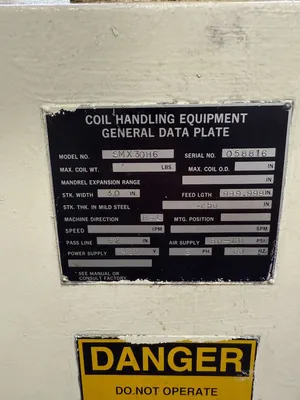

CWP Heavy Duty Feeder: SMX30H6
30" wide
0.250" thick @ 30" wide
62" Pass line height
Floor Standing Feeder

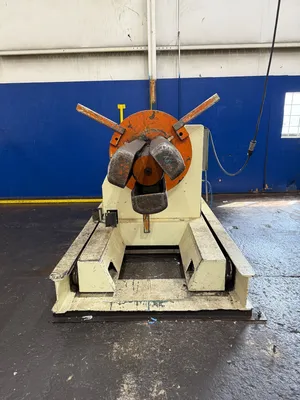

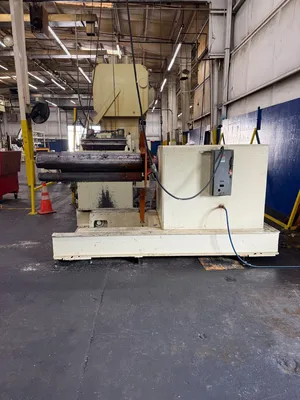

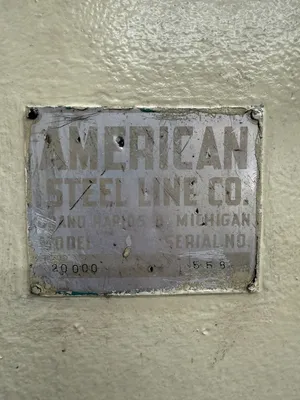

American Steel Reel

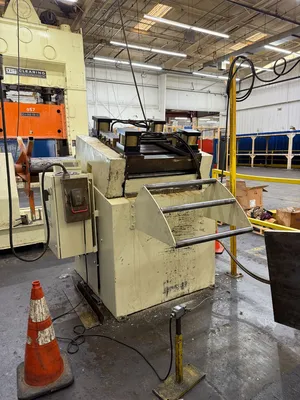

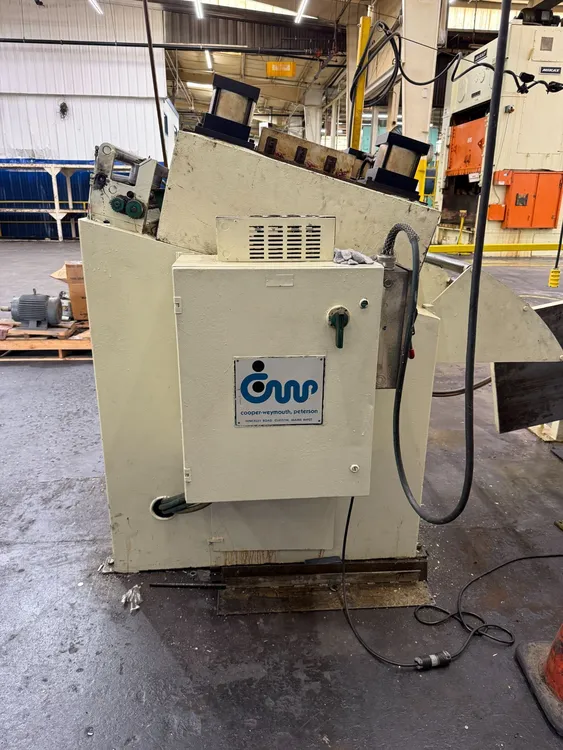

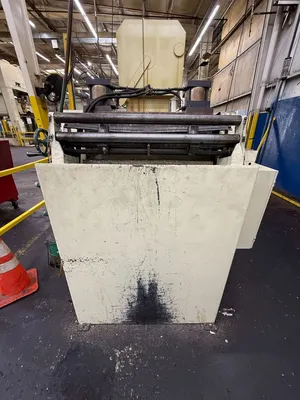

CWP Powered Straightener

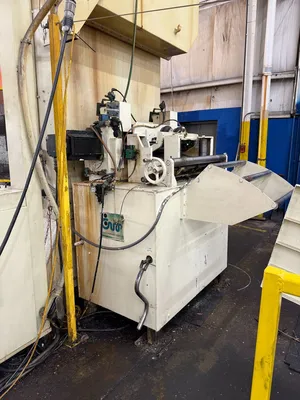

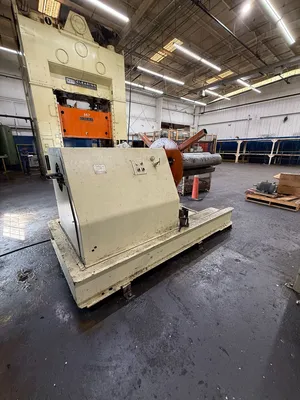

CWP Heavy Duty Feeder
Thread Table
Loop Sensor

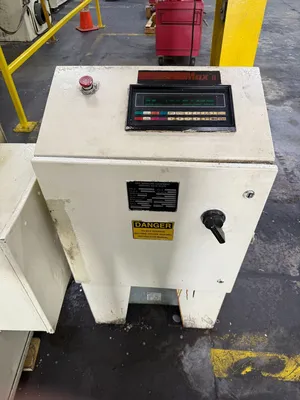

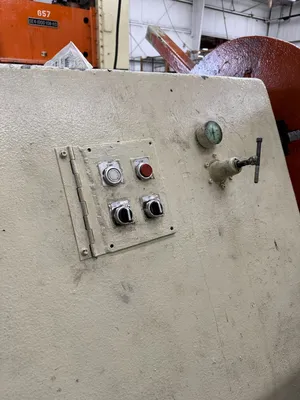

Feeder Control Console
