CWP 24" wide x 10,000 lbs Coil Feed Line

ConditionUsed

Quantity

1 available

Overview

Type:

Coil Feed Lines

Manufacturer:

Model:

4.5R-24 / SE24C / SMX24H

Stock #:

710-07249

Status:

For Sale

Serial #:

C63-5 / 052557 / SMX24H-11

CWP 24" wide x 10,000 lbs Coil Feed Line. Feed Direction L-R. 24" wide x 0.187" thick.

Open to offers!

ImperialMetric

Coil Weight Capacity	10,000 lb	4,535.9 kg
Stock Width Capacity	24"	609.6 mm
Max Stock Thickness Capacity at Full Width	0.187"	4.7498 mm
Minimum Expansion Range	18"	457.2 mm
Maximum Expansion Range	22"	558.8 mm
Coil O.D. Capacity	60"	1,524 mm

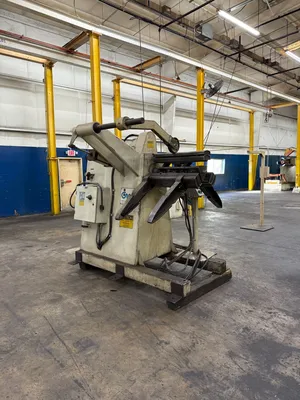

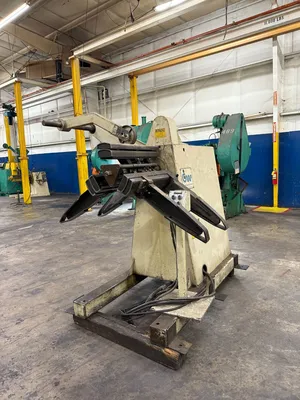

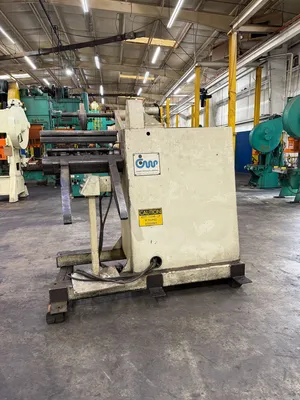

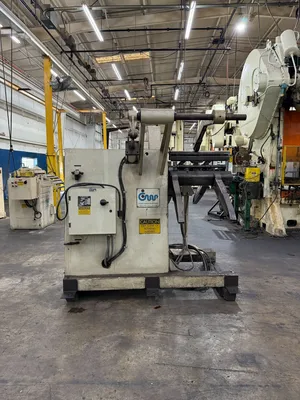

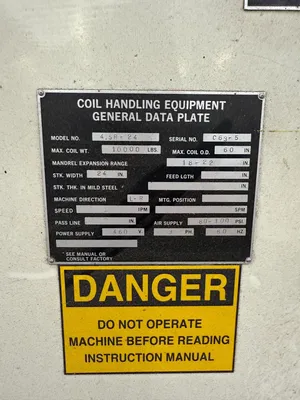

CWP Coil Reel: 4.5R-24
Coil Weight Capacity: 10,000lbs
Stock Width: 24"
Coil OD: 60"
Coil ID: 18" - 22"
Feed Direction: L-R
460/3/60

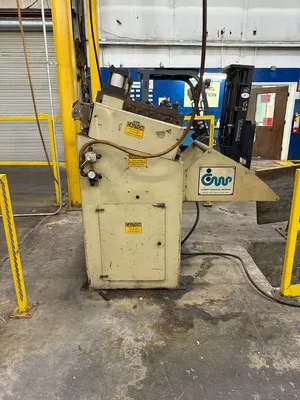

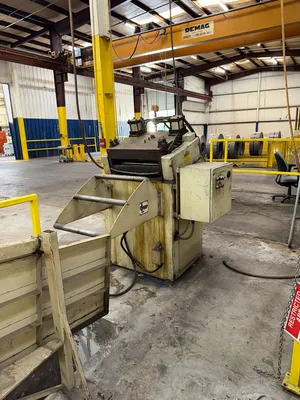

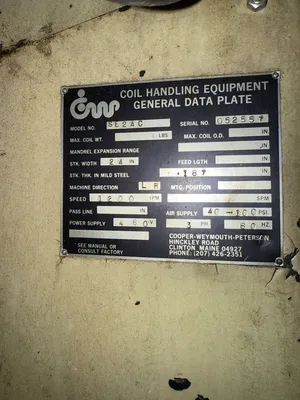

CWP Powered Straightener: SE24C
Stock Width: 24" wide
Stock Thickness: 0.187" thick
Feed Direction: L-R
Speed: 100 FPM
460/3/60

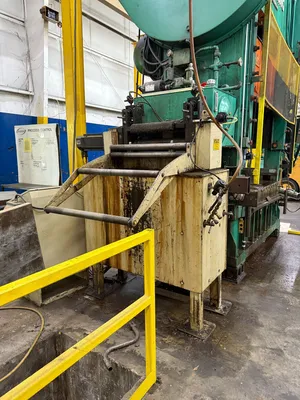

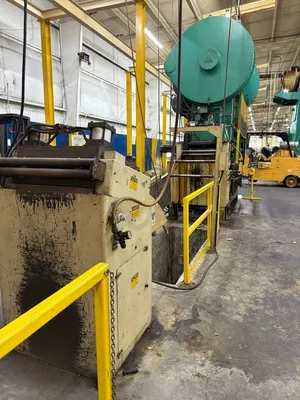

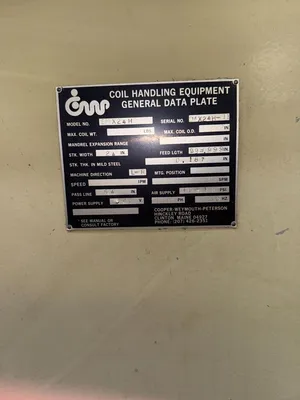

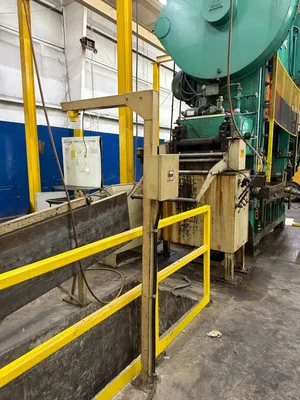

CWP Feeder: SMX24H
Stock Width: 24" wide
Stock Thickness: 0.187" thick
Pass Line: 54"
Feed Direction: L-R
Floor Standing
220/3/60

Thread Table
Loop Sensor

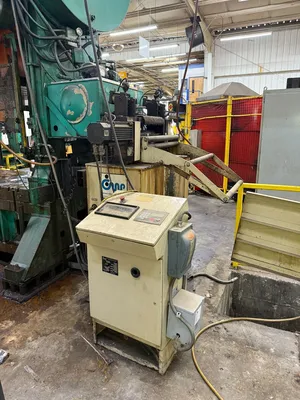

Feeder Control Console
Servo Motor
