Coe 30" wide x 20,000lbs Servo Feed Line

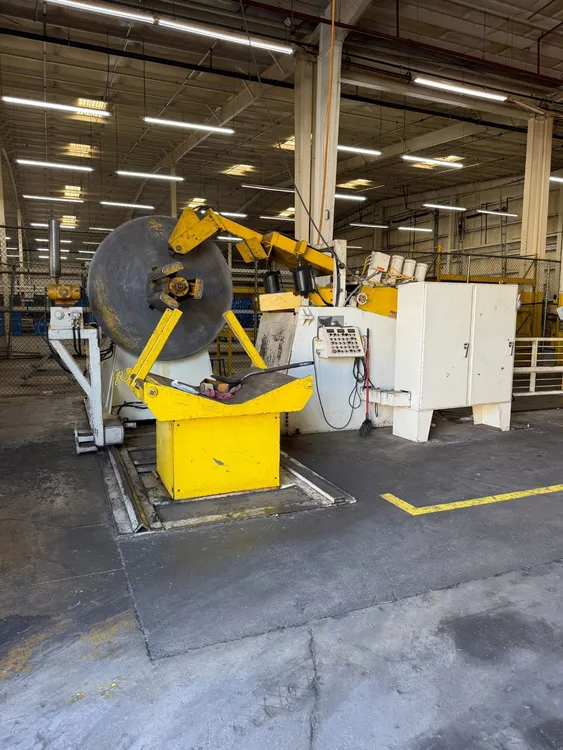

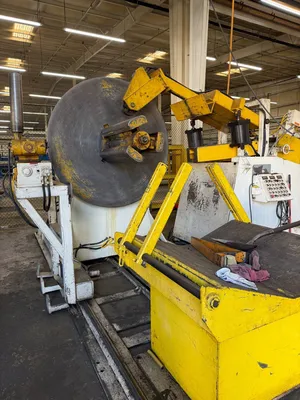

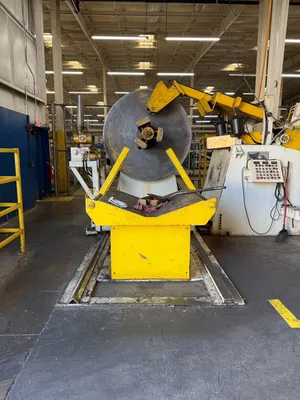

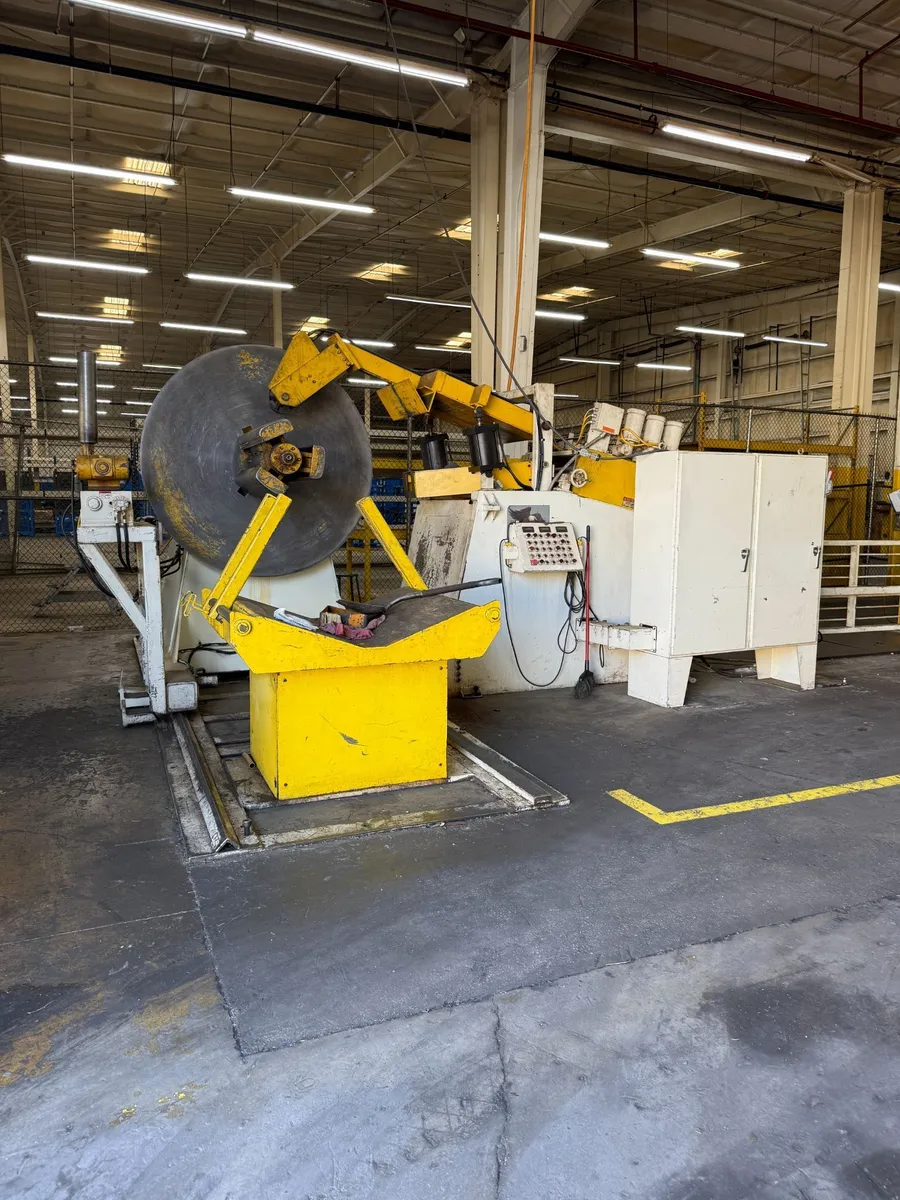

Coe Press Hydraulic Travelling Coil Reel with Stationary Coil Car
Model#: CPR-T-20030
Maximum Capacity: 20,000 # x 30” wide
Maximum OD: 72”
Mandrel Expansion Range: 19 ½” – 24 ½”
Full O.D. Backplate 72” diameter
3 Pad Mandrel
One set of (3) Coil Keepers
Hydraulic threading drive
Hydraulic Mandrel Expansion
Air brake with Pressure Regulator and Dual Pressure Circuitry
Jog Forward and Reverse
Remote Reel Jog Control with coil cord
Pneumatic Controls solenoid operated
Hydraulic controls solenoid operated
Stationary coil lift with hydraulic raise and lower
Air Operated coil guide assembly with motorized side adjustment

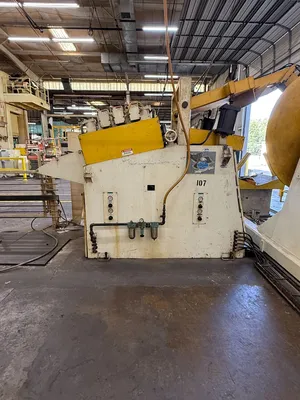

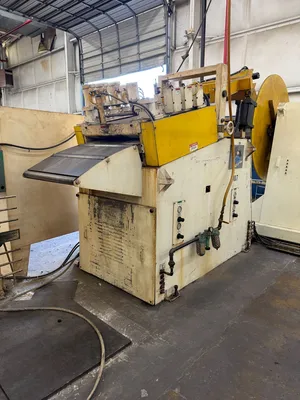

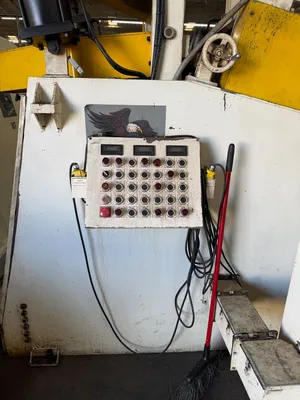

Coe Press Free Standing Powered Straightener for a Pull Off Operation
Model#: CPPS-PO-400-30
Capacity: 30” wide x 0.100” thick material
8” wide x 0.280” thick material
Payoff Rate: 80 FPM
7 Roll Straightener
Independently adjustable breaker rolls, raise and lower by means of 2 ½ tons screw jacks
Entrance and Exit cluster Gear Driven Pinch Rolls
Air Operated Entrance & Exit Pinch Rolls Raise and Lower with 5” bore cylinders
Pressure Regulators and Flow Controls on pinch roll cylinders
Crodon coated upper and lower entrance pinch rolls
3 roll exit catenary support section full sideplate with funnel
20 HP DC Variable Speed Drive
Jog Forward and Reverse
Remote Jog with coil cord
Push button solenoid operated control valves
Fused Electrical Safety Disconnect
Entrance Edge Guides with Self Centering hand crank adjustment 2 ¼ by 7.5” long rolls
Peeler/Threader/Hold Down Station withMotorized End Wheel and 4 position stock peeler for hands free threading capabilities
Ultra Sonic Loop Control system
Automatic Lube system with low level indicator light
Straightening rolls with motorized screw jacks and LED Readout
Special Option: P.C. Monitored straightener and reel through SLC/504

Coe Press Air Operated Thread Table Model: CPTT-3020
Air Raise and Lower
Adjustable Passline
Single Side Construction
Based on a 20’ loop

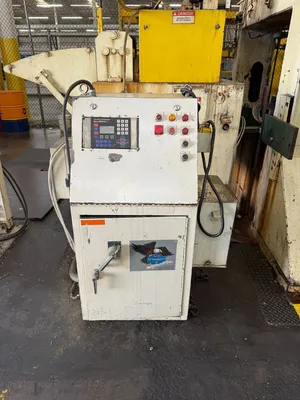

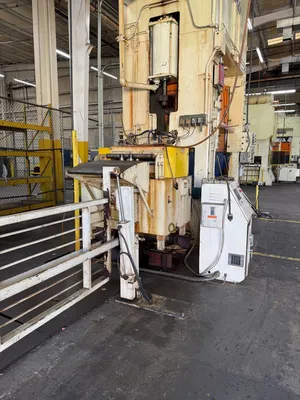

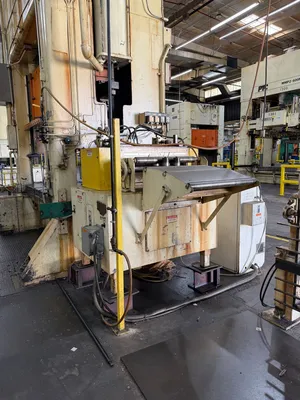

Coe Press AC Servo Drive Digital Roll Feed
Model: CPRF-530
5” diameter Feed Rolls
Capacity: 30” wide x 0.100” thick material
8” wide x 0.280” thick material
Max. Speed: 218 FPM
Acceleration: 45 Feet/Sec2
Feed Accuracy: +/- .003

Standard Features:
Close Tolerance Cluster-geared upper and lower feed rolls
Air Operated Pilot Release
Regulators for feed roll, raise & lower cylinders with flush mount regulator panel
Crodon coated Upper and lower feed rolls
AC brushless servo drive
Motor Shaft Encoder
Master Control Station
Jog Forward and Reverse
Single cycle pushbutton
Emergency Stop Button
Remote Jog with Coil Cord
Heavy duty cabinet base with passline adjustable +/- 5”
3 roll entrance catenary support section full sideplate with funnel

Standard Options
C.P.E.C. Controller- BG-2
Entrance Edge Guide with self centering and independent handcrank adjustment with 2 ¼” diameter rolls
End Coil Sensor
Special Option: Special press mount to match press with motorized passline height adjustment with air clamp bolted to bolster
