200 Ton Niagara Straight Side Mechanical Press

200 Ton Niagara Straight Side Mechanical Press

Sell Your NIAGARA BP2-200-72-36
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
Sell Your NIAGARA BP2-200-72-36

Overview

Type:
Straight Side Mechanical Stamping Presses
Manufacturer:
NIAGARA
Model:
BP2-200-72-36
Stock #:
710-02571
Status:
For Sale
Serial #:
49875

Description

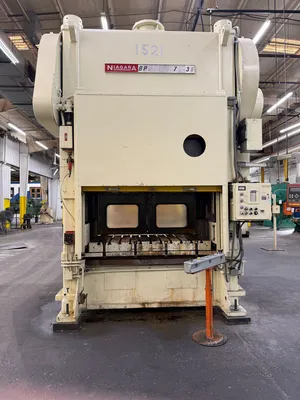

NIAGARA BP2-200-72-36 Straight Side Mechanical Stamping Press available. 200-ton capacity with a 10" stroke and 28" shut height. 40-80 SPM with a spacious bed area of 72" x 36".

Tonnage200 T181.437 t
Stroke10"254 mm
Shut Height28"711.2 mm
Bed area (Left to right)72"1,828.8 mm
Bed area (Front to back)36"914.4 mm
SPM min.40 strokes/min.40 strokes/min.
SPM max.80 strokes/min.80 strokes/min.
Adjustment10"254 mm

Model Number: BP2-200-72-36
Serial Number: 49875
Bed Area: 72” x 36”
Slide Area: 72” x 36”
Stroke: 10”
Strokes per Minute: 40-80
Shut Height: 28” over bed
Shut Height Over Bolster: 22” SDAU
Bolster Plate: 6” thick t-slotted plate
Slide Adjustment: 10”
Windows: To Be Confirmed
Overall Weight: Approx. 75,000#
Floor Standing

Air Clutch and Brake Assembly
Electro-Pneumatic Air Friction Clutch
Air Releasing Disc Brake
Air Counterbalances
Recirculating Lube System
DC Variable Speed Drive
T-Slotted Ram and Bolster
Dual Ross Air Valve

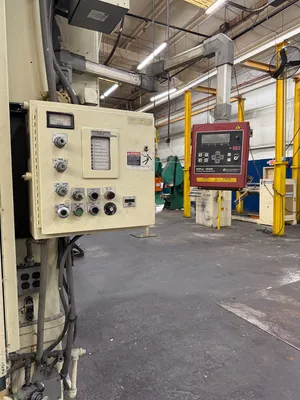

Motors and Control
Wintriss Die Protection (8 Input)
Wintriss Programmable Outputs
Wintriss Resolver
Trabon Recirculating Oil Lubrication System
8 Point Gibbing
Vibration Isolation Levelers
Motors and Controls
Motorized Ram Adjustment
