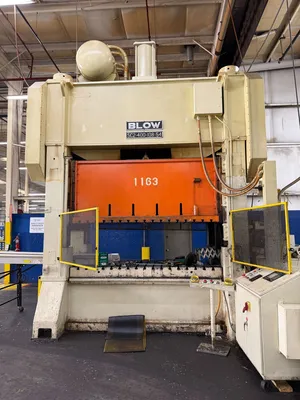

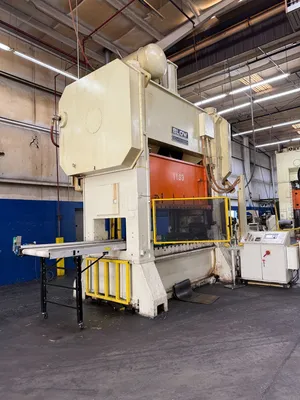

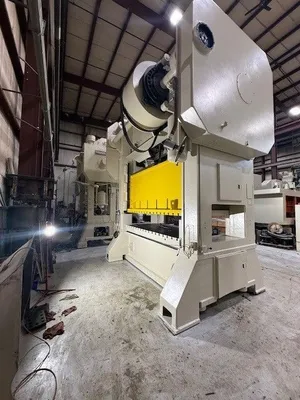

400 Ton Blow Straight Side Mechanical Press

Sell Your BLOW SC2-400-108-54
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
$299,500.00 USD
Sell Your BLOW SC2-400-108-54

Overview

Type:
Straight Side Mechanical Stamping Presses
Manufacturer:
BLOW
Model:
SC2-400-108-54
Year:
1997
Stock #:
710-02570
Status:
For Sale
Serial #:
SDG-400-443-97

Description

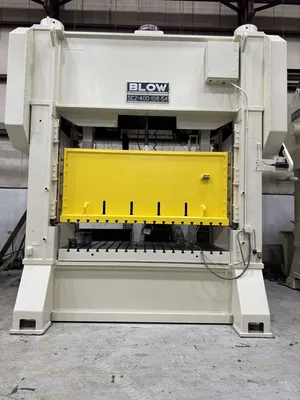

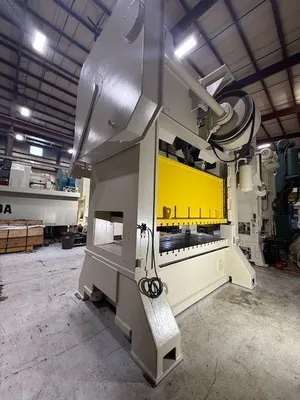

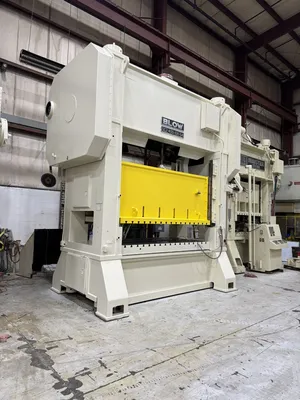

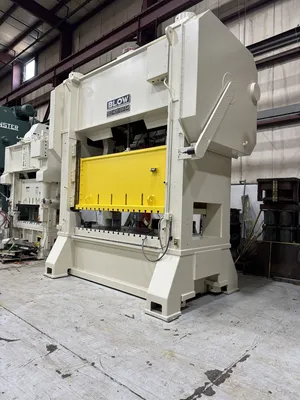

BLOW SC2-400-108-54 used straight side mechanical stamping press. Features: 400-tonnage, 10" stroke, 28" shut height, 20-60 SPM, and a spacious 108" x 54" bed area.

Tonnage400 T362.874 t
Stroke10"254 mm
Shut Height28"711.2 mm
Bed area (Left to right)108"2,743.2 mm
Bed area (Front to back)54"1,371.6 mm
SPM min.20 strokes/min.20 strokes/min.
SPM max.60 strokes/min.60 strokes/min.
Adjustment12"304.8 mm
Weight148,000148,000

Model Number: SC2-400-108-54
Serial Number: SDG-400-443-97
Year of Manufacture: 1997
Bed Area: 108” x 54”
Slide Area: 108” x 54”
Stroke: 10”
Strokes per Minute: 30-60 Vari Speed
Shut Height: 28” SDAU over bolster
Slide Adjustment: 12”
Windows: 38” wide
Overall Height: 18’5 ½” floor to top of Motor
Overall Weight: 148,000 #
Footprint Dimensions: 145” LR x 94” FB
Floor to top of Bolster: 44”
Bolster Plate: 7” thick

Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
7" Thick Bolster
Motors and Controls

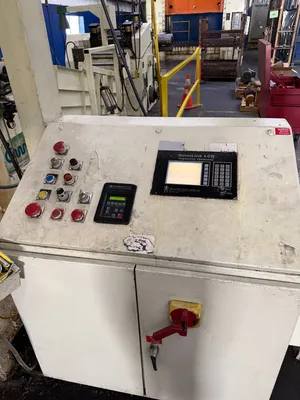

Floor Standing Electrical Control Console
Omnilink II LCD Press Control
Hydraulic Tie Rod Nuts
Vibration Isolation Levelers
8 Point Gibbing
Palm Button Stands
