400 Ton Blow Straight Side Mechanical Press

Sell Your BLOW SC2-400-108-54
(248)709-6723
brian@rygatellc.com
$249,500.00 USD
ConditionUsed
1 available
Sell Your BLOW SC2-400-108-54

Overview

Type:
Straight Side Mechanical Stamping Presses
Manufacturer:
BLOW
Model:
SC2-400-108-54
Year:
2001
Stock #:
710-02569
Status:
For Sale
Serial #:
SDG-400-541-01

Description

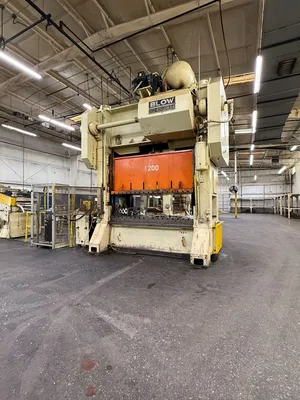

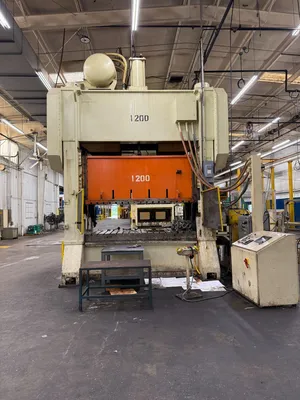

BLOW SC2-400-108-54 Straight Side Mechanical Stamping Press, 400-ton capacity, 10" stroke, 28" shut height. Bed area 108" x 54". Max speed 60 SPM.

Tonnage400 T362.874 t
Stroke10"254 mm
Shut Height28"711.2 mm
Bed area (Left to right)108"2,743.2 mm
Bed area (Front to back)54"1,371.6 mm
SPM min.30 strokes/min.30 strokes/min.
SPM max.60 strokes/min.60 strokes/min.
Adjustment12"304.8 mm
Windows Width37"939.8 mm

Model Number: SC2-400-108-54
Serial Number: SDG-400-541-01
Year of Manufacture: 2001
Bed Area: 108” x 54”
Slide Area: 108” x 54”
Stroke: 10”
Strokes per Minute: 20-60 Vari Speed
Shut Height: 28” SDAU over bolster
Slide Adjustment: 12”
Windows: 38” wide
Overall Height: 18’5 ½” floor to top of Motor
Overall Weight: 148,000 #
Footprint Dimensions: 145” LR x 94” FB
Floor to top of Bolster: 44”
Bolster Plate: 7” thick x 108” x 54”
Floor Standing

Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
7" Thick Bolster

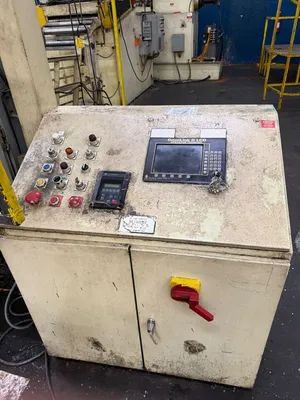

Floor Standing Control Console
OmniLink II LCD
Link 5010 Remote Connection (8 inputs)
Palm Button Stand
Hydraulic Tie Rod Nuts
Vibration Isolation Levelers
8 Point Gibbing
