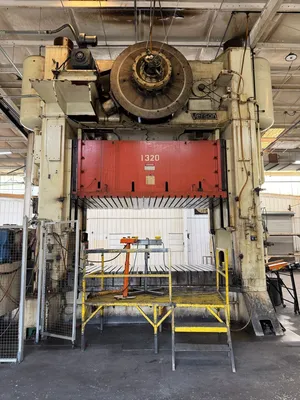

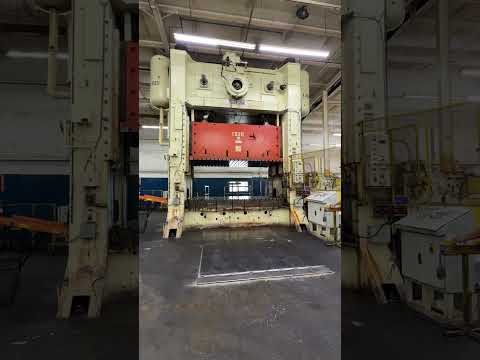

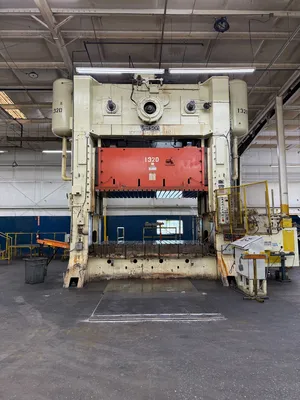

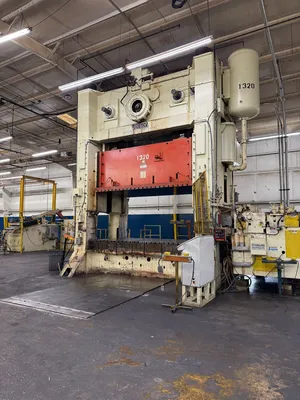

1000 Ton Verson Straight Side Mechanical Press
ConditionUsed
1 available

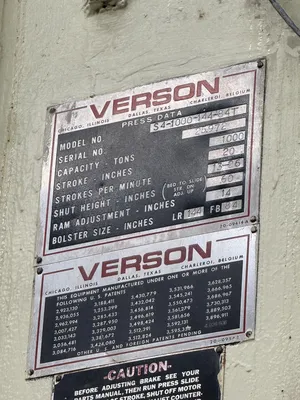

VERSON S4-1000-144-84T Straight Side Mechanical Stamping Press available from 1978, pre-owned and well-maintained.
Capacity: 1000 Tons
Model Number: SE4-1000-144-84
Bed Area: 144” x 84”
Slide Area: 144” x 84”
Stroke: 20”
Adjustment: 14”
Shut Height: 60” over bed SDAU
Shut Height (Over Bolster): 48” over bolster
Strokes per Minute: 13-26
Bolster: 12” Thick
Windows: 54” wide (Can be increased to 61” wide)
Overall Height: 21’3” floor to top of motor
Footprint Dimensions: 200” LR x 152” FB
Floor to Top Of Bolster: 26”
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
8 Point Gibbing
T-Slotted Ram and Bolster
Hydraulic Tie Rod Nuts
Main Motor: 150 HP @ 1750 RPM

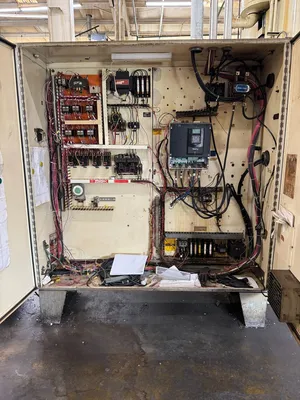

Allen Bradley Variable Speed Drive
Motors and Controls
Floor Standing Control Console

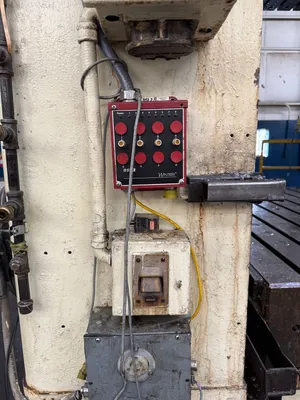

(2) Palm Button Stands

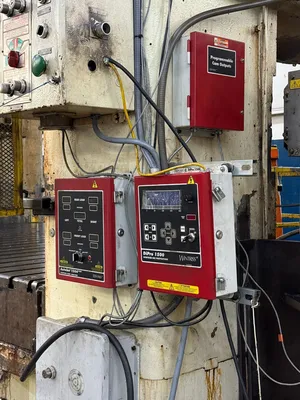

Wintriss AutoSet 1504 Plus
Wintriss DiPro 1500
Programable Cam Outputs
Wintriss DSI 2
