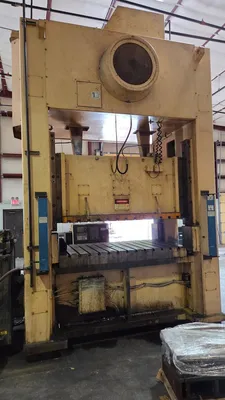

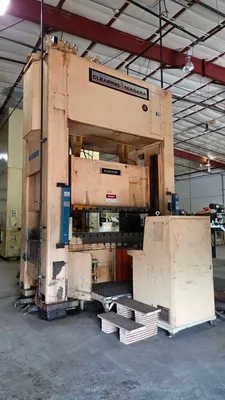

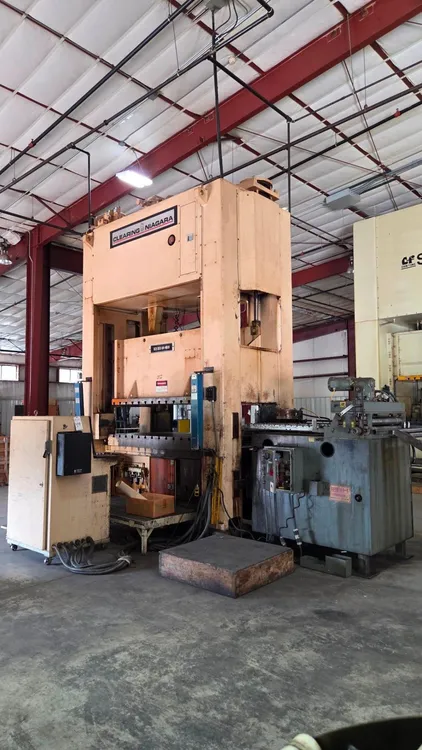

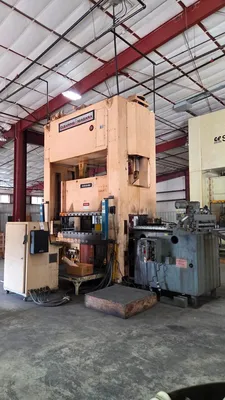

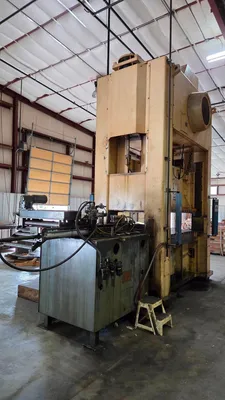

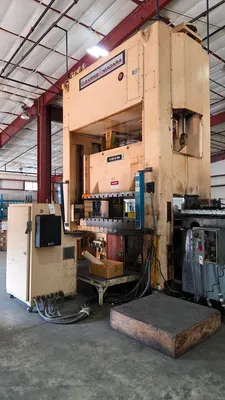

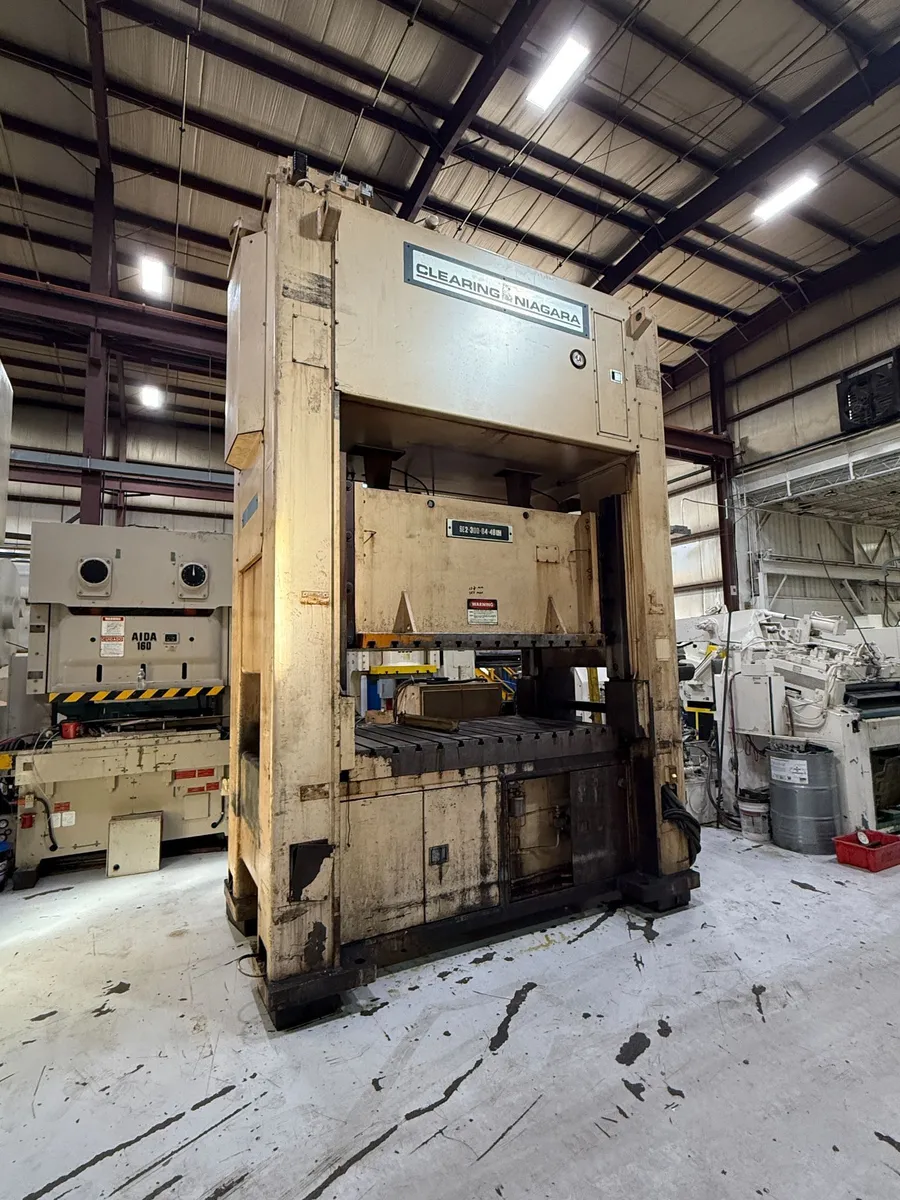

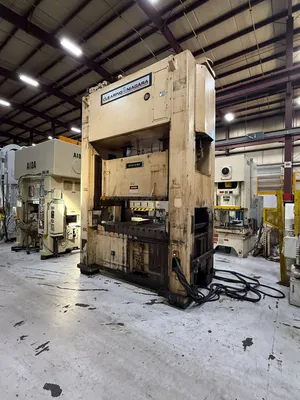

330 Ton Clearing Niagara Chief, Straight Side Mechanical Press, 84" x 48" bed, 8" stroke, 35-70 SPM
ConditionUsed
1 available
Clearing Niagara 330 Ton SSDC Mechanical Press, Model: SE2-300-84-48UH, Stroke: 8" , 35-70 SPM, 25" Shut Height over bolster, Link 501 Press Controls
Overall Height………………………………15’ approx. to top of press frame
…………………………………………16’7” floor to top of clutch cover (highest point)
Floor to top of Bolster Dimension………….. 47”
Note: This does not include a set of vibration isolation levelers ( will add 7” of height)
Hauling Dimensions………………………… 135” wide x 199” long x 82” tall
Overall Weight……………………………… 76,000 #
Footprint Dimensions……………………….. 123.25” LR x 69” FB
Floor Standing
Equipped With:
Air Clutch and Brake Assembly
Air Counterbalances
T-Slotted Ram and Bolster
Trabon Recirculating Lubrication System
Free Standing Press Control

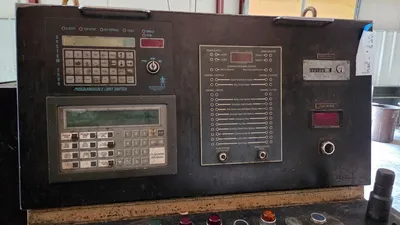

Link Programmable Limit Switch
Link 501 Press Control
Main Motor: 40 HP @ 1775 RPM
Knockouts in Slide
8 Point Gibbing
Single/Inch/Continuous
