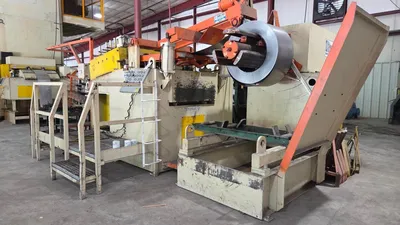

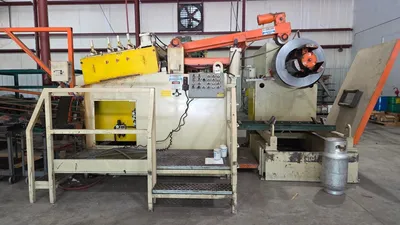

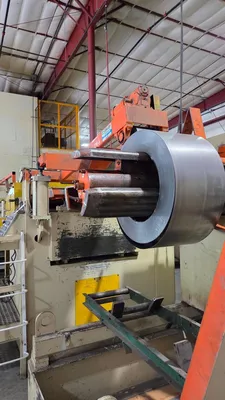

Dallas 42" wide x 15,000 lb Coil Reel & Powered Straightener
ConditionUsed
1 available
Dallas 42" Coil Reel and Powered Straightener, ideal for handling up to 15,000 lbs with a 72" O.D. Hydraulic expansion and air brake enhance control. Featuring a three-leaf mandrel, seven straightening rolls, and adjustable guides for precision.
Coil Weight Capacity: 15,000 lbs
Model Number: DJR-15,000# x 42 / DPS-3 1/2-7-42
Serial Numbers: 20713-20715
Coil Width Capacity: 42”
Stock Thickness Capacity: 42” wide x .135”
Max. Capacity: 24” wide x 0.187”
Min. Thickness Capacity: 0.021” thick material
Coil I.D. Range: 20-24”
Coil O.D.: 72”
Power Supply: 460/3/60
Feed Direction: Right to Left
Peeler Capability: 46-72”
Restrictor Capability: 30-72”
Dallas Coil Reel Model DJR-15,000# x 42

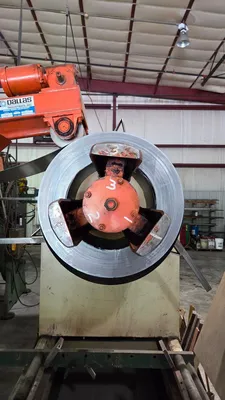

Three Leaf Mandrel
Hydraulic Expansion
Coil Keeper Arms
Air Brake with Adjustable Tensioning
Thread Drive for Jog Forward and Reverse
Clock Spring Guard

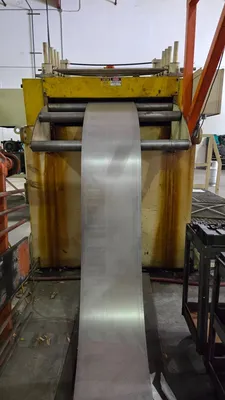

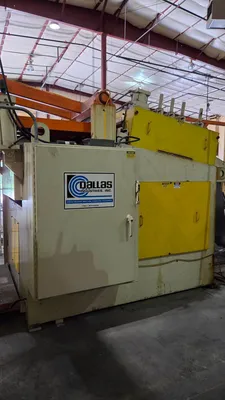

Dallas Powered Coil Straightener Model DPS-3 ½-7-42
Seven Straightening Rolls
3.5" Diameter Straightening Rolls
Back Up Supports on Upper Straightening Rolls
Entry Pinch Rolls with Air Operated Adjustment
Adjustable stock Width Edge Guides
Coil Hold Down Arm with Motorized End Wheel

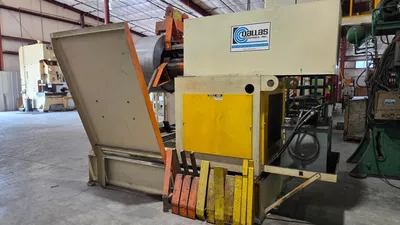

Stock Peeler Table
Exit Cascade Loop Rolls
Loop Control

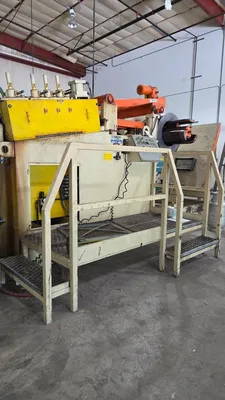

Operators Platform
Dallas Exit Thread Table
Coil Tek Ultrasonic Loop Control
NOTE: Air operated adjustment only on the entry pinch rolls
