| Coil Weight Capacity | 15,000 lb | 6,803.9 kg |
| Stock Width Capacity | 42" | 1,066.8 mm |
| Max Stock Thickness Capacity at Full Width | 0.125" | 3.175 mm |
| Minimum Expansion Range | 20" | 508 mm |
| Maximum Expansion Range | 24" | 609.6 mm |
| Coil O.D. Capacity | 72" | 1,828.8 mm |
Coil Weight Capacity: 15,000 lbs
Model Number: DJR-15,000# x 42 / DPS-3 1/2-7-42
Serial Numbers: 20713-20715
Coil Width Capacity: 42”
Stock Thickness Capacity: 42” wide x .135”
Max. Capacity: 24” wide x 0.187”
Min. Thickness Capacity: 0.021” thick material
Coil I.D. Range: 20-24”
Coil O.D.: 72”
Power Supply: 460/3/60
Feed Direction: Right to Left
Peeler Capability: 46-72”
Restrictor Capability: 30-72”

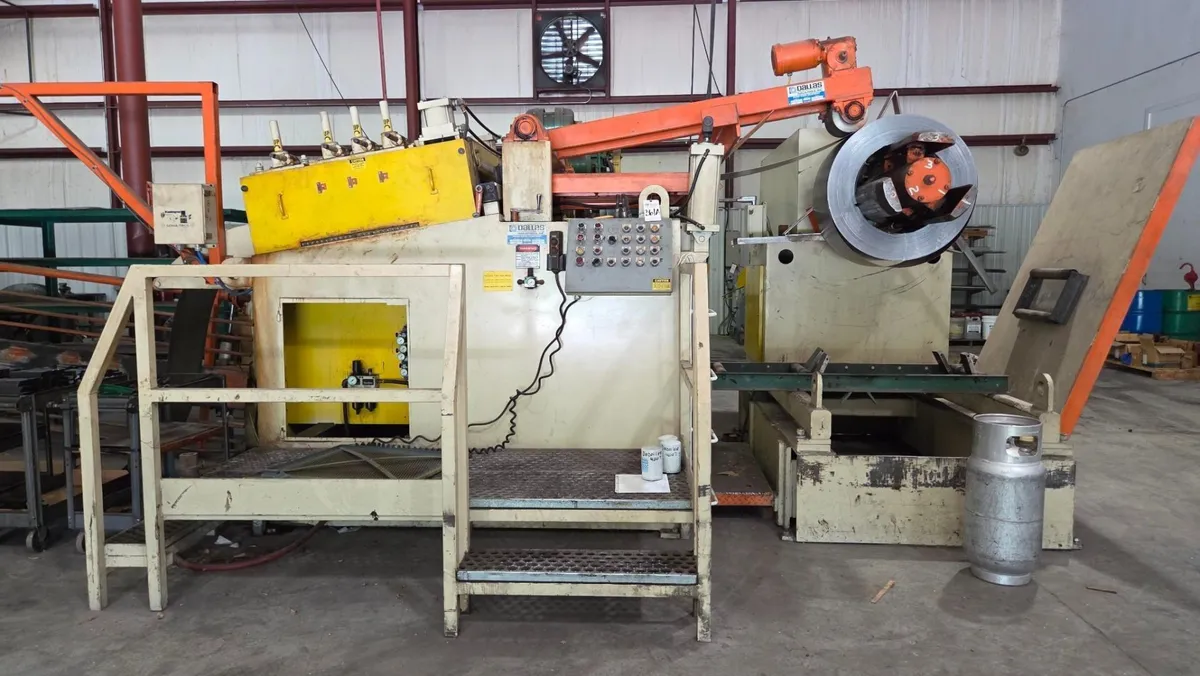

Dallas Coil Reel Model DJR-15,000# x 42
Three Leaf Mandrel
Hydraulic Expansion
Coil Keeper Arms
Air Brake with Adjustable Tensioning
Thread Drive for Jog Forward and Reverse
Clock Spring Guard
Dallas Powered Coil Straightener Model DPS-3 ½-7-42
Seven Straightening Rolls
3.5" Diameter Straightening Rolls
Back Up Supports on Upper Straightening Rolls
Entry Pinch Rolls with Air Operated Adjustment
Adjustable stock Width Edge Guides
Coil Hold Down Arm with Motorized End Wheel
Stock Peeler Table
Exit Cascade Loop Rolls
Operators Platform
Loop Control
Operators Platform
NOTE: Air operated adjustment only on the entry pinch rolls.
Coe Press Servo Roll Feed Model No.: CPRF-542
Stock Width Capacity: 42 inches
Max Stock Thickness Capacity At Full Width: .125 inches
Feed Roll Diameter: 5 inches
Matte chrome finish on upper and lower feed rolls
Precision cluster gear driven upper feed
Pivoting upper feed roll assures gear mesh
Air operated upper roll adjustment / pilot
Heavy duty adjustable stock width edge guides
Cascade loop support rollers
Cabinet base mounted with heavy duty pass line adjustment
AC servo drive and control system
Job memory micro adjust batch count etc
(Consult sales for complete details)
Free standing sloped front control console
Remote pendant control for jog forward and reverse
Fused disconnect
Auto Mode
