600 Ton Magnum Straight Side Gibb Guide Hydraulic Press

600 Ton Magnum Straight Side Gibb Guide Hydraulic Press

Sell Your MAGNUM MSS4PS600/48/60/48/36-100
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
Sell Your MAGNUM MSS4PS600/48/60/48/36-100

Overview

Type:
Hydraulic Presses
Manufacturer:
MAGNUM
Model:
MSS4PS600/48/60/48/36-100
Year:
2021
Stock #:
020-008
Status:
For Sale

Description

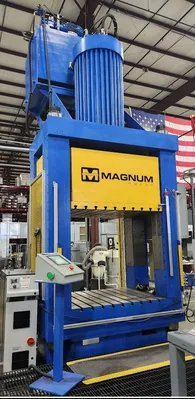

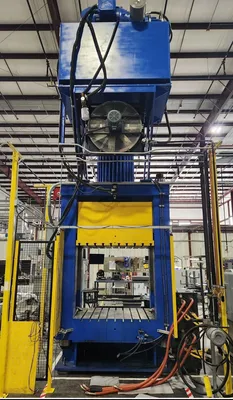

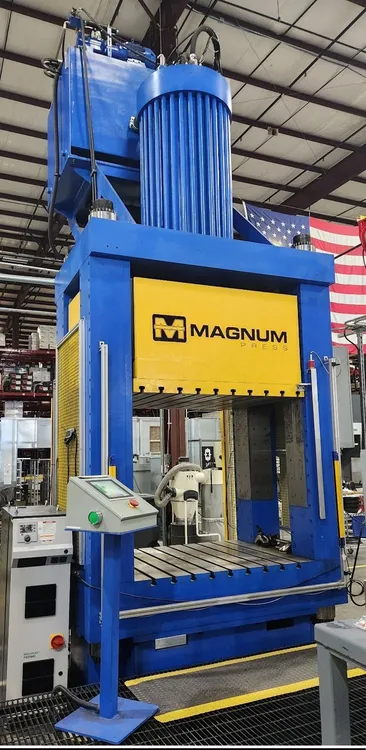

600 Ton Magnum Straight Side Gibb Guide Hydraulic Press

Tonnage600 T544.311 t
Stroke42"1,066.8 mm
Bed area (Left to right)60"1,524 mm
Bed area (Front to back)48"1,219.2 mm
Daylight54"1,371.6 mm
Fast Closing Speed500 in/min.1,270 cm/min.
Pressing Speed30 in/min.76.2 cm/min.
Fast Return Speed500 in/min.1,270 cm/min.

Model: MSS4PS600/48/60/48/36-100 Straight Side, Gibb Guided
Capacity: 600 Tons
Daylight: 54"
Stroke: 42”
Slide Area: 60" x 48"
Bolster Area: 60" x 48"
Rapid Advance: 500 ipm
Pressing: 30 ipm
Retract: 500 ipm
Main Motor: 100 HP
Light Curtains: Front and Back

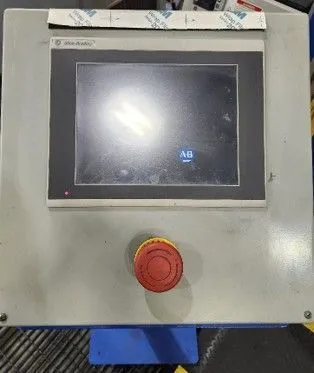

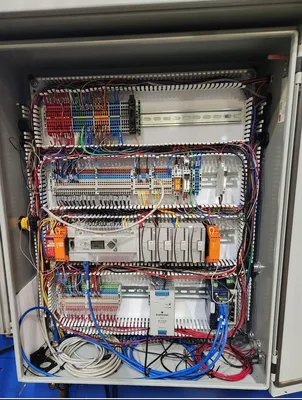

Controls: Allen Bradley CompactLogix PLC
Manufacturing Date: 2021

Main Motor: 100 HP
Light Curtains: Front and Back
Controls: Allen Bradley CompactLogix PLC
