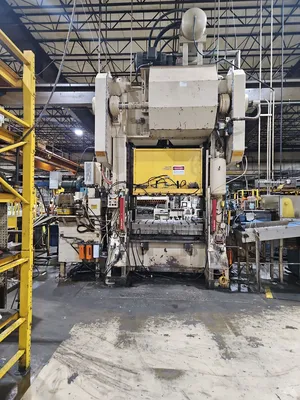

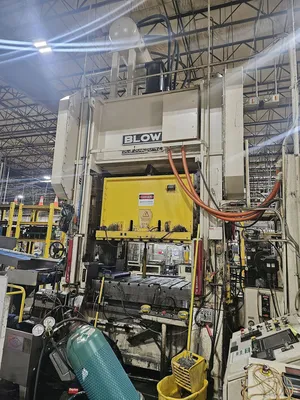

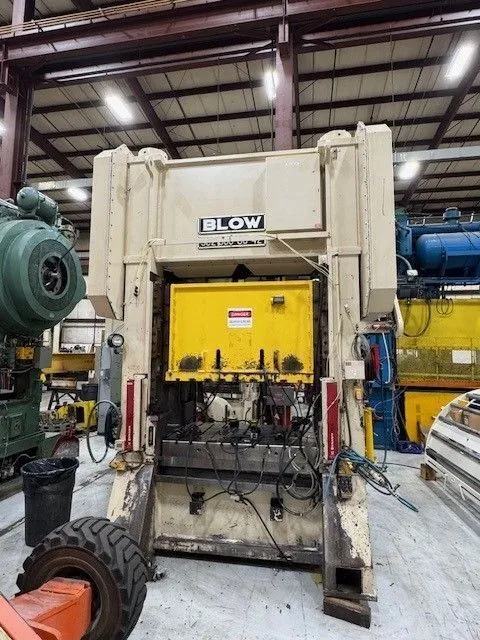

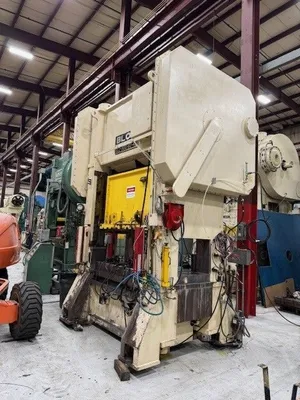

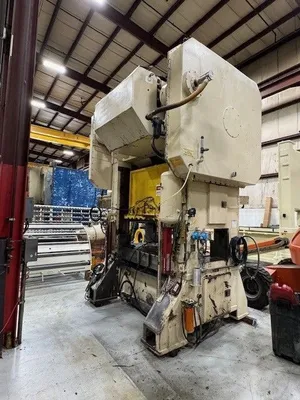

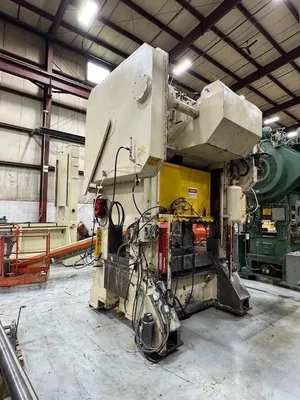

300 Ton Blow Straight Side Mechanical Press

Sell Your BLOW SC2-300-60-42
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
Sell Your BLOW SC2-300-60-42

Overview

Type:
Straight Side Mechanical Stamping Presses
Manufacturer:
BLOW
Model:
SC2-300-60-42
Year:
1997
Stock #:
710-02562
Status:
For Sale
Serial #:
SDG-300-408-97

Description

300 Ton Blow Straight Side Mechanical Press, 60" x 42" Bed Area, 8" Stroke, 30 - 60 SPM

Tonnage300 T272.156 t
Stroke8"203.2 mm
Shut Height26"660.4 mm
Bed area (Left to right)60"1,524 mm
Bed area (Front to back)42"1,066.8 mm
SPM min.30 strokes/min.30 strokes/min.
SPM max.60 strokes/min.60 strokes/min.
Adjustment8"203.2 mm
Windows Width30"762 mm
Weight8800088000

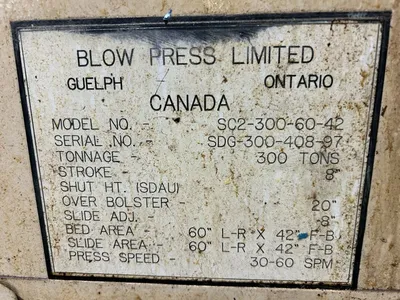

Capacity: 300 Tons
Model Number: SC2-300-60-42
Year of Manufacture: 1997
Serial Number: SDG-300-408-97
Bed Area: 60” x 42”
Slide Area: 60” x 42”
Stroke: 8”
Adjustment: 8”
Shut Height: 20” over bolster SDAU
Strokes per Minute: 30-60
Windows: 30” wide
Floor Standing Design

Price includes installation of NEW Flywheel Bearings.

Air Clutch and Brake
Air Counterbalances
8 Point Gibbing
Recirculating Lube System
Motorized Adjustment
T-Slotted Ram and Bolster
6" Thick Bolster Plate
Hydraulic Tie Rod Nuts
Main Motor: 50 HP
Dual Ross Air Valve

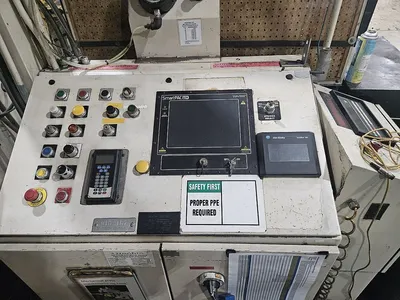

Press Control (Console)
Wintriss Smart Pac Pro Electrical Control
DSI Die Protection
Vibration Isolation Levelers
Die Clamping on bolster and slide assembly
Shadow V Light Curtains (2) Sets
Palm Buttons
Motors and Controls
