Feedlease Coil Reel & Straightener 24" wide x 15,000 #
Sold

Feedlease Coil Reel & Straightener 24" wide x 15,000 #

Sell Your FEED LEASE PR-15M-42 / FLCC-24-76-7
Coil Reels & Straighteners
Manufacturer:
FEED LEASE
Model:
PR-15M-42 / FLCC-24-76-7
Stock #:
710-07234
Serial #:
4509 / 1297

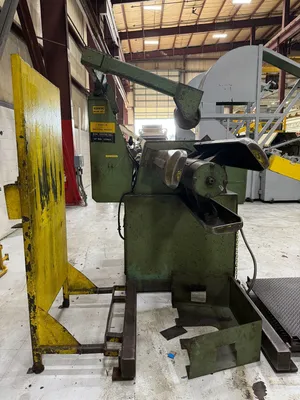

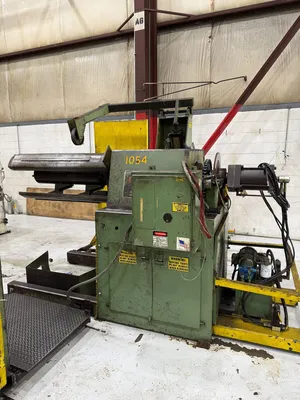

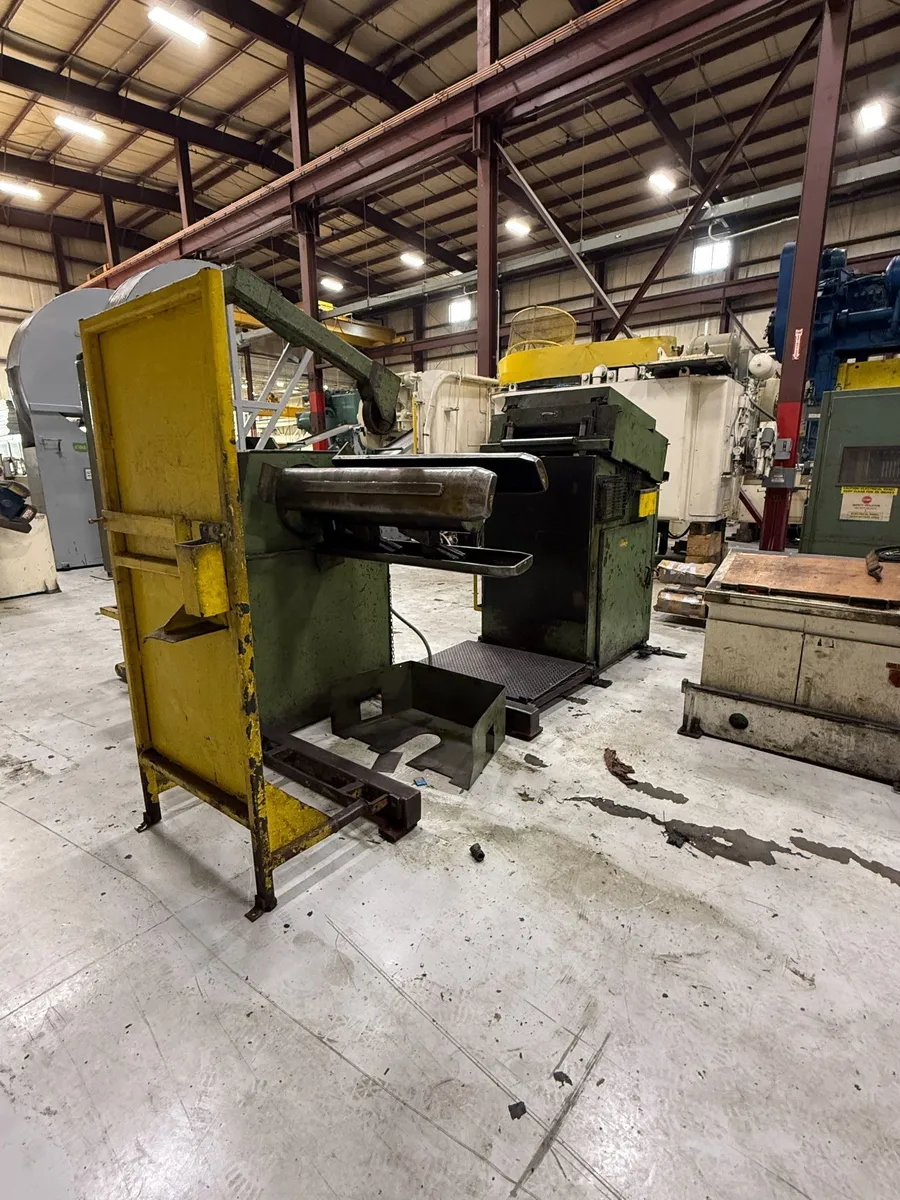

15,000 lbs. x 24" wide Feed Lease Coil Reel with Feed Lease Powered Straightener For Sale - Models PR-15M-42 and FLCC-24-76-7
Coil Weight Capacity15,000 lb6,803.9 kg
Coil Width Capacity24"609.6 mm
Max Stock Thickness Capacity at Full Width0.187"4.7498 mm
Minimum Expansion Range19"482.6 mm
Maximum Expansion Range24"609.6 mm
Coil O.D. Capacity72"1,828.8 mm

15,000 lbs. Coil Weight
24" Maximum Coil Width
.187" x 24" Coil Thickness at Full Width
.250" x .12" Maximum Coil Thickness
Right To Left Feed Direction
72" Maximum Coil O.D.
19-24" I.D. Range

Feed Lease Coil Reel Model # PR-150M-42
Serial Number - 4509
Three Leaf Mandrel Pads
Hydraulic Thread Drive
Hydraulic Mandrel Expansion
Hold-Down Arm with End Wheel
Clock Spring Safety Guard
Air Brake on Main Spindle
Hydraulic Unit and Pump

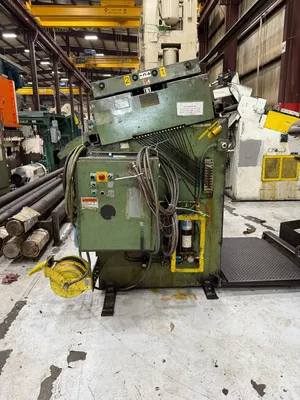

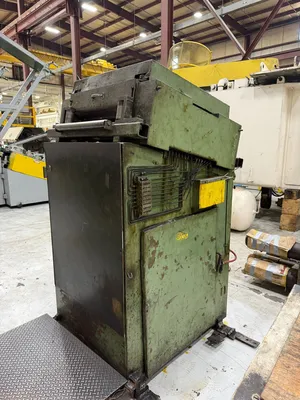

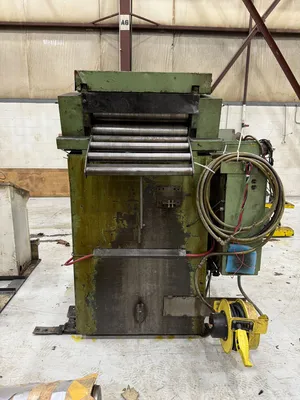

Feed Lease Powered Coil Straightener # FLCCS-2476-7.5
Serial Number 1297
7 Straightening Rolls
Entry and Exit Pinch Rolls with Air Operated Adjustment
Adjustable Breaker Rolls
Automatic Lubrication System
Inclined Straightening Head
Adjustable Stock Width Edge Guides
Auto / Run Cycle
Loop Control
7.5 HP Main Drive Motor

This equipment has been sold. Similar equipment available now is shown below.
