250-ton Niagara E-250 Single Point Gap Press
ConditionUsed
1 available

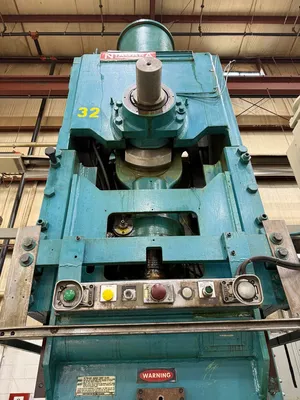

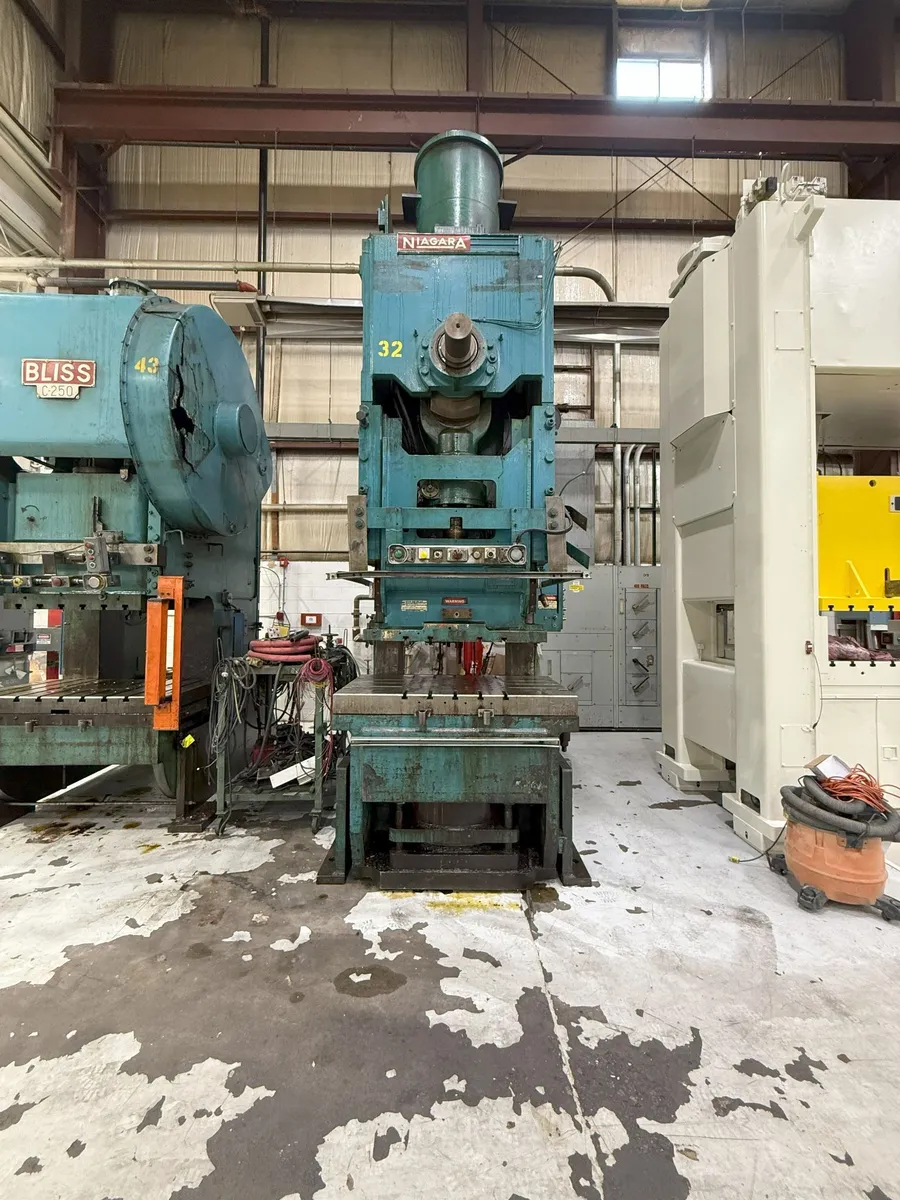

Used 250-ton Niagara E-250 gap frame press with a cushion available. Features include a 10" stroke, 22" shut height, 58" x 34" bed area, 32 SPM, with air clutch, brake, counterbalances, recirculating lube system, and motorized adjustment. Serial Number 50447.
Serial Number 50447
250-ton Capacity
10" Stroke
22" Shut Height
6" Adjustment
58" LR x 34" FB Bed Area
36" LR x 28" FB Slide Area
32 SPM

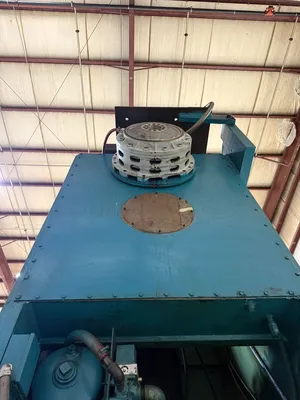

Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster

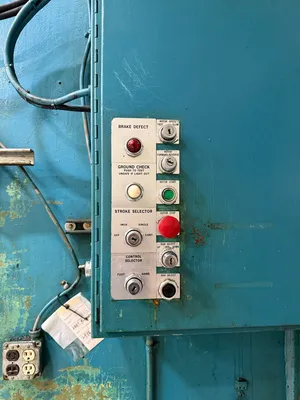

Palm Button
Motorized Adjustment

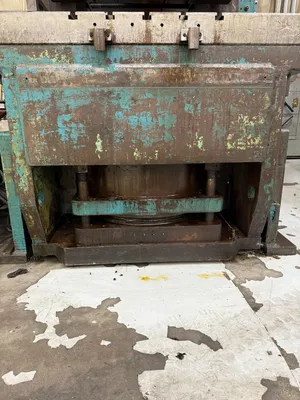

(1) Air Cushion in Bed
- Model C-28-6 sn/ 50197
- 6" Stroke
- 3.08 tons @ 10 PSI
Cushion (1): Model C-28-6 (SN#: 50197)
Used 250-ton Niagara E-250 gap frame press with a cushion available. Features include a 10" stroke, 22" shut height, 58" x 34" bed area, 32 SPM, with air clutch, brake, counterbalances, recirculating lube system, and motorized adjustment. Serial Number 50447.
Imperial
| Tonnage | 250 T |
| Stroke | 10" |
| Shut Height | 22" |
| Bed area (Left to right) | 58" |
| Bed area (Front to back) | 34" |
| SPM min. | 32 strokes/min. |
| SPM max. | 32 strokes/min. |
| Adjustment | 6" |
Serial Number 50447
250-ton Capacity
10" Stroke
22" Shut Height
6" Adjustment
58" LR x 34" FB Bed Area
36" LR x 28" FB Slide Area
32 SPM
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Palm Button
Motorized Adjustment
(1) Air Cushion in Bed
- Model C-28-6 sn/ 50197
- 6" Stroke
- 3.08 tons @ 10 PSI
Cushion (1): Model C-28-6 (SN#: 50197)
