200 Ton Minster HeviStamper
ConditionUsed
1 available

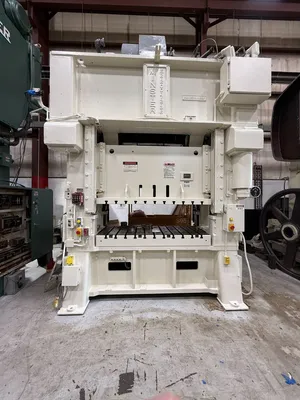

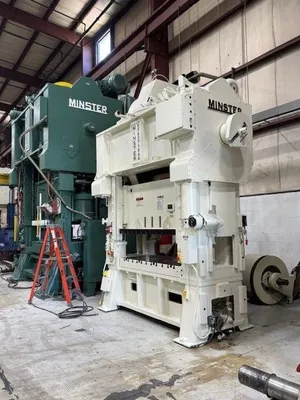

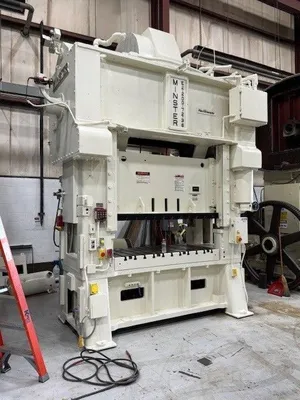

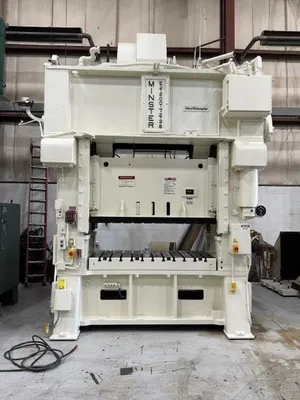

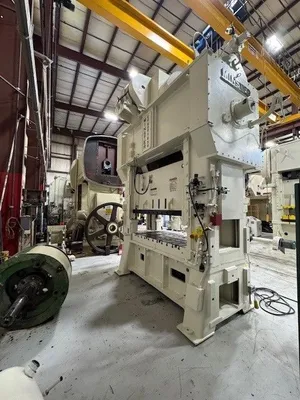

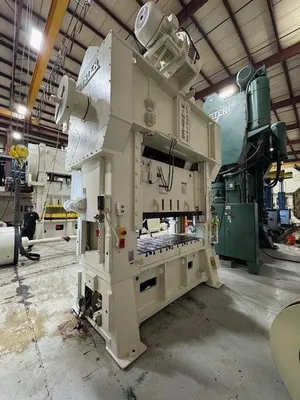

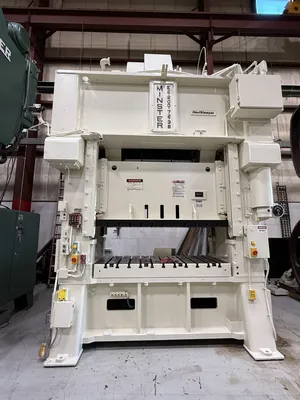

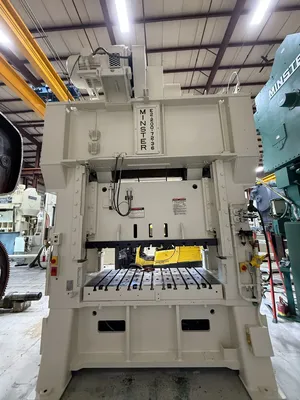

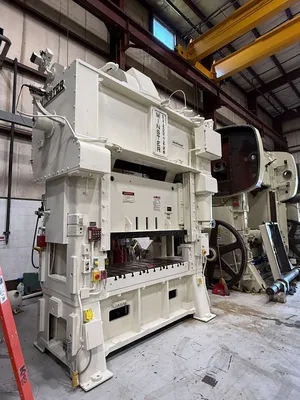

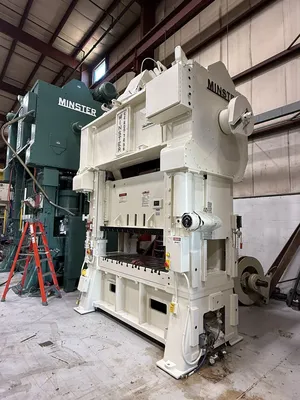

Used 200 Ton Minster HeviStamper, Model E2-200. Straight side mechanical stamping press with a 6" stroke, 19.5" shut height, and 72"x36" bed area. Operates at 60-120 SPM, ideal for diverse stamping needs.
Capacity......................................................... 200 US Tons
Model Number……………………………... E2-200
Bed Area........................................................ 72” x 36”
Slide Area………………………………….. 72” x 36”
Stroke............................................................. 6”
Adjustment..................................................... 6”
Shut Height.................................................... 26 1/2” SDAU
Bolster Plate Thickness……………………. 7”
Strokes per Minute.........................................60-120 SPM
Overall Height………………………………14’5” floor to the top of flywheel
Footprint Dimensions………………………. 107 ½” LR x 57” FB
Floor Standing
Air Clutch and Brake
Air Counterbalances
8 Point Gibbing
Recirculating Lube System
T-Slotted Ram and Bolster
T-Slots 6" Centers- Standard 1" T-Slots
Electrical Control Cabinet
Variable Speed Motor
Light Curtains

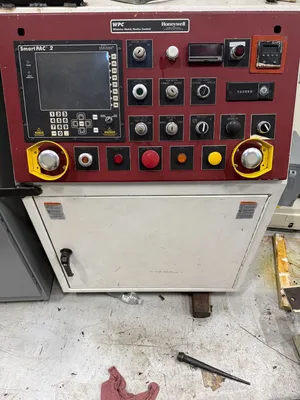

Wintriss Smart Pac 2 Mounted on Control Console
WPC Clutch and Break Control
Wintriss DSI 2 Die Protection
Palm Button Stand

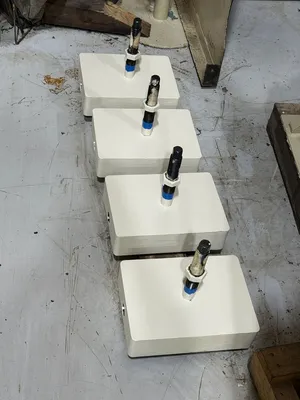

Vibration Isolation Levelers
Motorized Ram Adjustment
Main Motor Fwd./Reverse
Main Motor: 30 HP @ 1800 RPM
