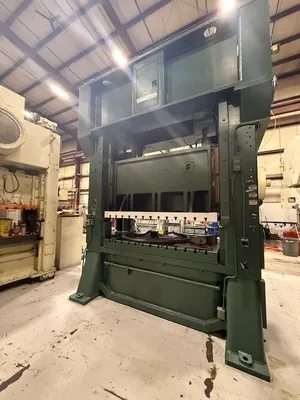

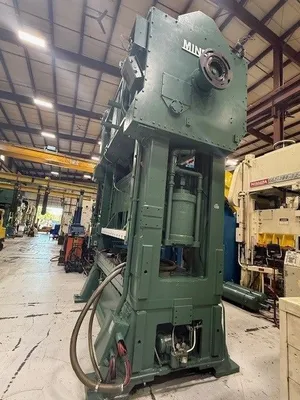

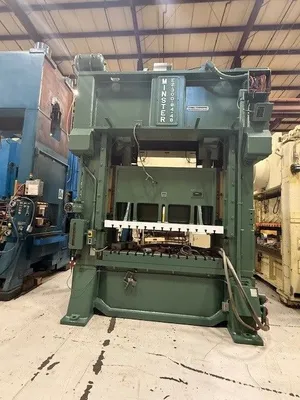

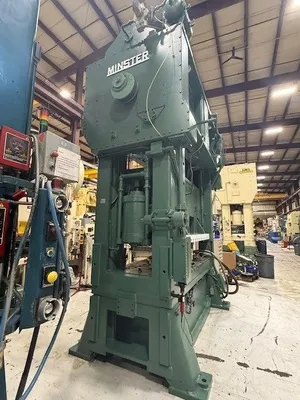

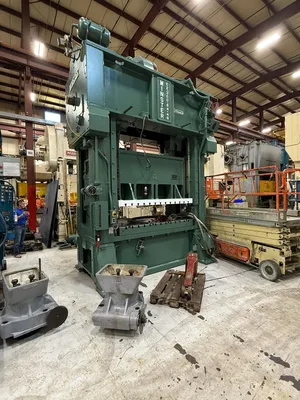

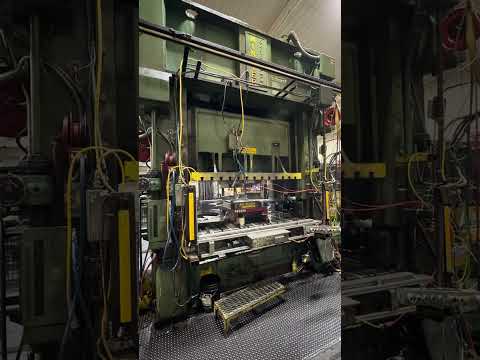

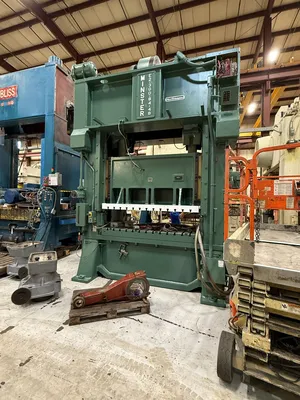

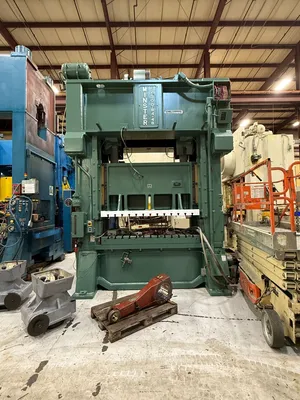

Minster 300 Ton Hevistamper Straight Side Two Point Eccentric Shaft Mechanical Press
ConditionUsed
1 available
MINSTER E2-300 HEVISTAMPER, 1982 model, offers 300-ton capacity, 12" stroke, 84x48" bed, max 80 SPM. Equipped with air clutch/brake, recirculating lube, and Wintriss control. Features motorized ram adjustment and hydraulic tie rods.
Model Number..............................E2-300-84-48
Serial Number……………………………… E2-300-24499
Year of Manufacture…………………...1982
Bed Area........................................ 84” x 48”
Slide Area…………………………………..... 84” x 48”
Stroke............................................ 12”
Strokes per Minute........................ 0-80
Shut Height……………....................... 30” over bed
Bolster Plate……………………………….... 7” thick t-slotted plate
Slide Adjustment........................... 6”
Windows…………………………………….... 27” wide
Main Motor…………………………………... 50 HP @ 1800 RPM
Floor to top of bed……………………….. 38”
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster ( On 6” centers)
Dual Ross Air Valve
Wintriss Smart Pac Press control
Floor Standing Console Mounted
Vari Speed Drive
8 Point Gibbing
Motors and Controls
Minster Monitor Flow Lubrication System
Motorized Ram Adjustment
Hydraulic Tie Rod Nuts
