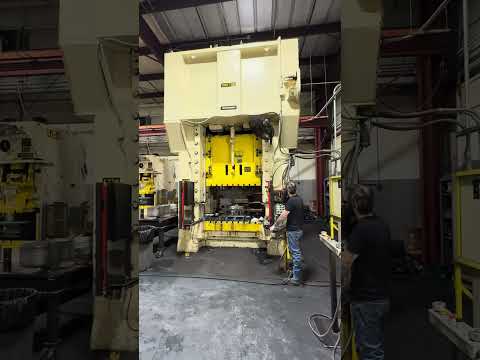

MINSTER E2-800-60-48 straight side mechanical stamping press, 1970 model, 800-ton capacity, 18" stroke, 60" x 48" bed area, 28 SPM, air clutch/brake, recirculating lube, Wintriss Smart Pac, dual Ross air valve, and motorized ram adjustment.
Model Number...............................................E2-800-60-48
Serial Number………………………………................ E2-800-18442
Year of Manufacture………………………............. 1970
Bed Area........................................................60” x 48”
Slide Area………………………………….................... 60” x 48”
Stroke............................................................18”
Strokes per Minute...................................... 28
Shut Height……………..................................... 36” over bed
Bolster Plate……………………………….................. 9 3/4” thick t-slotted plate
Slide Adjustment.......................................... 6”
Windows……………………………………................... 27” wide approx..
Main Motor………………………………….................. 30 HP @ 1800 RPM
Floor Standing
Air Clutch and Brake Assembly
Air Counterbalances
Recirculating Lube System
T-Slotted Bolster ( On 6” centers)
Dual Ross Air Valve
Wintriss Smart Pac Press control
8 Point Gibbing
Motors and Controls
Recirculating Lubrication System
Motorized Ram Adjustment
