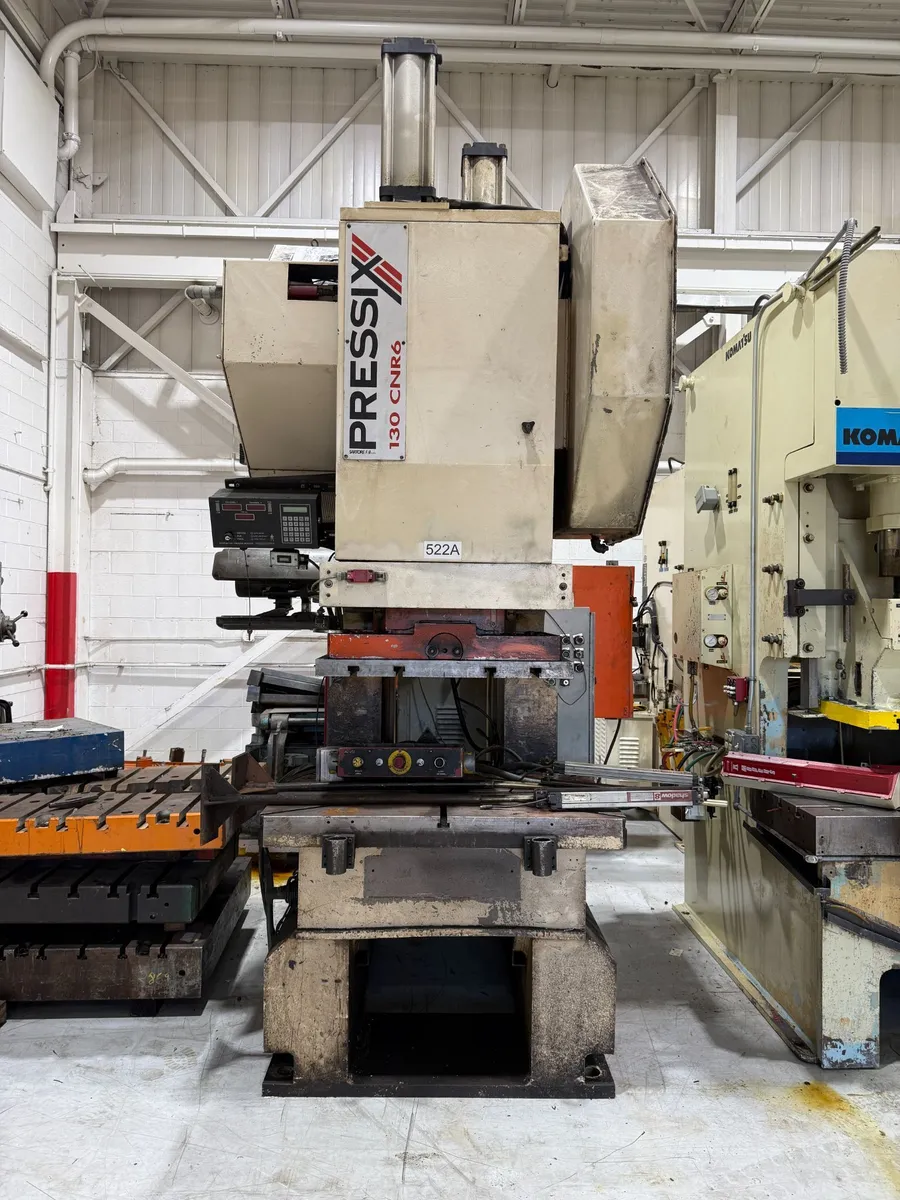

Pressix 130 Ton Gap Frame Mechanical Press.
Capacity.... ................................................. 130 Tons
Model Number……………………………... 130CNR6
Serial Number……………………………… 130/3/141/06
Year of Manufacture……………………….. 2006
Bed Area........................................................ 47” x 27.5”
Slide Area………………………………….. 34” x 25”
Stroke............................................................. 6.3”
Adjustment..................................................... 4.33”
Shut Height.................................................... 18.4” SDAU
Strokes per Minute.........................................27-80
Bolster Plate………………………………… 3” thick T-Slotted
Approx. Overall Weight……………………. 26,000 #
Floor Standing
FORCE kN 1.300
NOMINAL SPEED Spm 48
FIXED SPEED Spm 60
VARIABLE SPEED Spm 27 - 80
STROKE LENGTH mm 13 - 160
SLIDE ADJUSTMENT mm 110
SHUT HEIGHT mm 430
BOLSTER AREA mm 765 x 1.200
BOLSTER HOLE mm 165
SLIDE AREA mm 550 x 800
SLIDE HOLE mm 60
THROAT DEPTH mm 405
POWER kW 15
APPROXIMATE WEIGHT kg 13.000
OVERALL DIMENSIONS (LxPxH) mm 1.780 - 2.540 - 3.460
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster

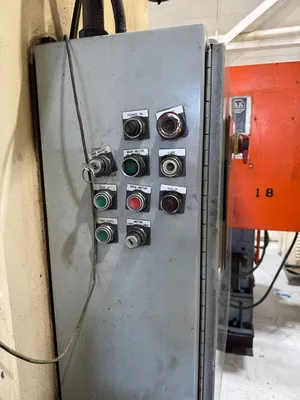

Electrical Control Cabinet

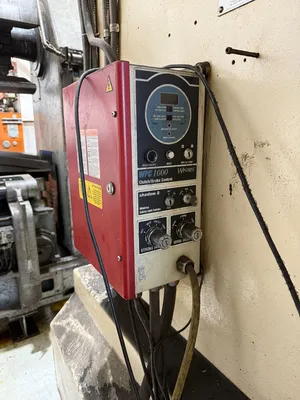

Wintriss WPC 1000 Press Control

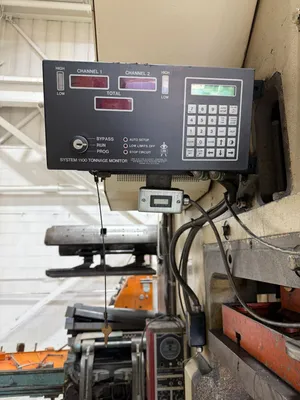

Link System 1100 Tonnage Monitor
Variable Speed Motor
Motors and Controls

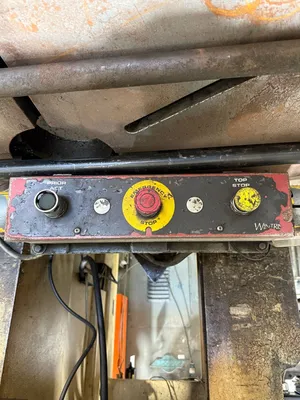

Palm Buttons
Dual Ross Air Valve
Motorized Ram Adjustment
Main Motor Fwd./Reverse
