176 ton AIDA Double Crank Gap Frame Press

176 ton AIDA Double Crank Gap Frame Press

Sell Your AIDA NC2-160(1)
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
$109,500.00 USD
Sell Your AIDA NC2-160(1)

Overview

Type:
Gap Frame (OBS) Presses
Manufacturer:
AIDA
Model:
NC2-160(1)
Year:
2000
Stock #:
710-02544
Status:
For Sale
Serial #:
10516-1889

Description

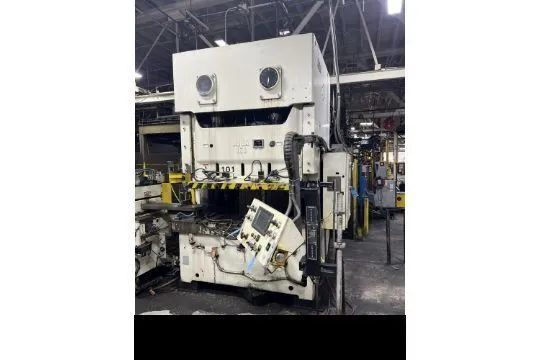

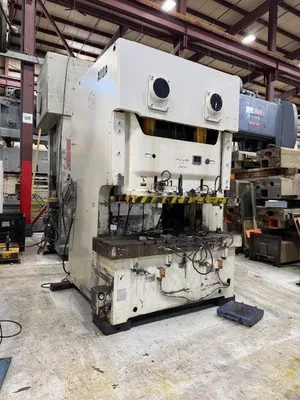

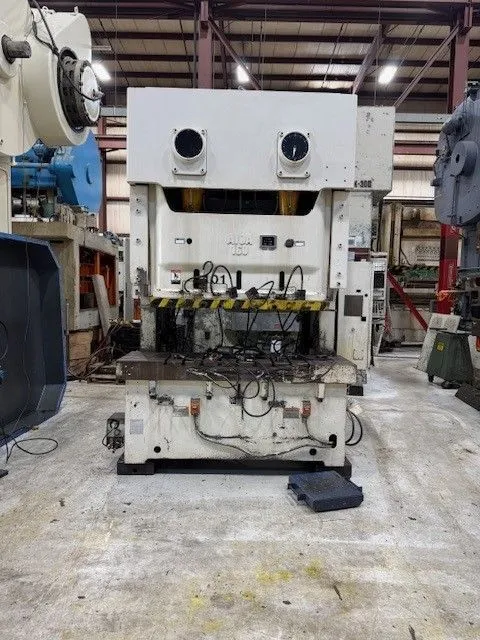

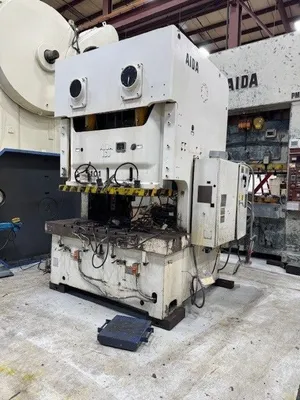

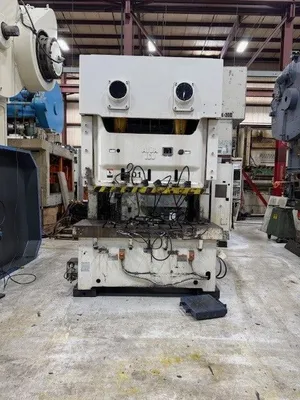

1995 AIDA NC2-160(1) Double Crank Gap Frame Press. 80.3" x 23.6" Bed Area, 59.1" x 22.8" Slide Area, 5.12" Stroke, 40-85 SPM.

Tonnage176 T159.665 t
Stroke5.12"130.05 mm
Shut Height17.72"450.09 mm
Bed area (Left to right)80.3"2,039.6 mm
Bed area (Front to back)23.6"599.44 mm
SPM min.40 strokes/min.40 strokes/min.
SPM max.85 strokes/min.85 strokes/min.
Adjustment3.94"100.08 mm
Weight4800048000

Serial Number: 10516-1889
Model Number: NC2-160(1)
Year of Manufacture: 2000
Capacity: 176 US Tons
Bed Area: 80.3” x 23.6”
Slide Area: 59.1” x 22.8”
Stroke: 5.12”
Shut Height: 17.72” SDAU Over Bolster
Strokes Per Minute: 40-85
Adjustment: 3.94”
Overall Weight: 48,000 # approx.
Floor Standing

Air Clutch and Brake
ATS Panelmate Power Pro Touchscreen Control
Link Blackmax Light Curtains
Quick Die Change
T-Slot Bolster and Ram
Dual Palm Buttons
Single/ Inch/ Continuous Operation
Power: 480/3/60
Forward/Reverse
Variable Speed Main Motor
20 HP Main Motor
Dual Ross Air Valve
