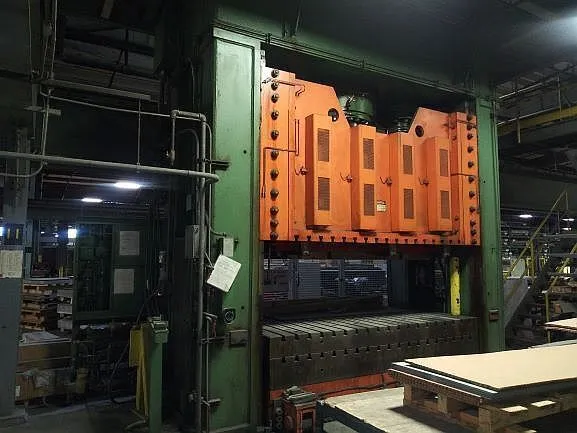

Williams and White 1000 Ton Gib Guided Hydraulic Press

Serial Number………………………………. C-4132
Model Number……………………………… SH-1000-120-72
Capacity.... ................................................. 1000 Tons
Year of Manufacture……………………….. 1987
Tonnage U.S.(Pressing)……………………. 1000 Tons
Distance Between Columns………………… 122” x 72”
Bed Area........................................................ 120” x 72”
Slide Area………………………………….. 120” x 72”
Stroke............................................................. 36”
Daylight……………………………………. 50”
Shut Height.................................................... 14” over bed SDAU

Operating Speeds:
Fast Close…………………………………... 405 IPM
Intermediate………………………………… 30-198 IPM
Pressing…………………………………….. 6-43IPM
Stripping…………………………………… 5-390 IPM
Fast Open…………………………………... 390 IPM

Hydraulic Working Pressure………………... 2740 PSI @ 1000 Tons
Electrical……………………………………. 480V/3 PH/ 60 HZ
Main Motor…………………………………. 200 HP @ 900 RPM
Hydraulic Cylinders………………………… 27” Single Acting (1)
……………………………………………… 10” x 7” Double acting (2)
