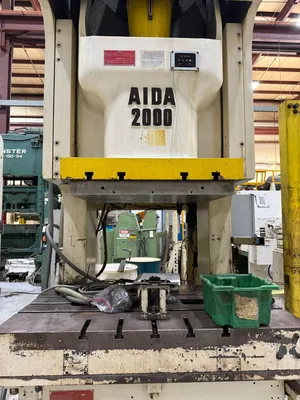

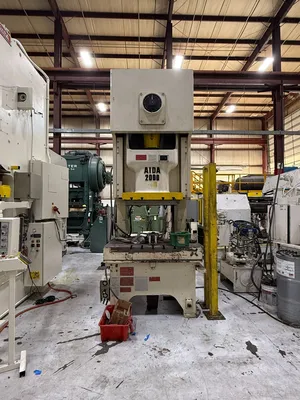

Aida 220 US Ton NC1-2000(1) Model Gap Frame Mechanical Press
ConditionUsed
1 available
Aida 220 US Ton NC1-2000(1) Model Gap Frame Mechanical Press
Model Number..............................NC1-2000(1)
Serial Number……………………………… C0420-0693
Year of Manufacture……………………….. 2010
Capacity…………………………………….. 220 US Tons
Bed...............................................54.7” x 33.1”
Slide Area………………………………….. 34.6” x 25.6”
Stroke............................................9.84”
Shut Height...................................17.72” SDAU Over Bolster
Strokes Per Minute.......................25-50
Adjustment....................................4.33”
Overall Weight……………………………... 50,000 # approx.
Floor Standing
Air Actuated Clutch/Brake Assembly
T-Slotted Bolster and Ram
Omnilink 806 Press Controller
Omron DRO

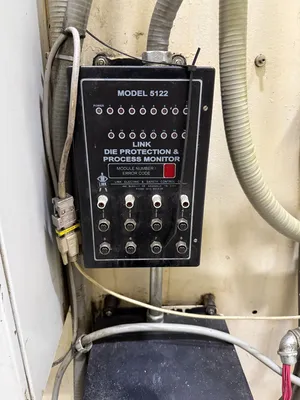

Link Model 5122 Die Protection Monitor
Link Black Max Light Curtains
Link Resolver
Dual Palm Buttons
Single/ Inch/ Continuous Operation
Power: 480/3/60
Forward/Reverse
Variable Speed Main Motor
Hydraulic Overloads
Dual Ross Air Valve
Main Motor: 20 HP
