Coe 12” wide x 6,000 # Double End Coil Reel and Powered Straightener with Cabinet Mounted Servo Feed/Pull Thru Straightener
ConditionUsed
1 available
Coe 12” wide x 6,000 # Double End Coil Reel and Powered Straightener with Cabinet Mounted Servo Feed/Pull Thru Straightener. Capacity: 6" wide x 0.187" @ 70 KSI HS Steel Feed Direction L-R
Coil Weight Capacity............................6,000 #
Model………………………………………............. 63004
Model Number……………………………..........CPRF-518/CPPS-350-12/CPR-DE-PO-06018
Year of Manufacture……………………...….. 2014
Coil Width Capacity...............................12”
Stock Thickness Capacity…………….………8” wide x .187” -85,000 Material Yield
Max. Capacity………………………………......... 3” wide x 0.250” – 85,000 Material Yield
Coil I.D. Range……………………….......………. 16-21”
Coil Line speed……………………......…………. 409 FPM
Coil O.D....................................................72”
Power Supply……..........…………………………. 460/3/60
Feed Direction………..........……………………… Right To Left
Coe Coil Reel Model No. CPR-DE-PO-06018
Three Pad Mandrel Construction
30” diameter heavy duty backplate
One set of (6) Quick Release Narrow Coil Keepers
Material Width Scale on Mandrel Pad
Hydraulic Mandrel Expansion
Hydraulic Threading Drive
Powered Indexing Feature
Fail Safe Drag Brake to Prevent Coil Over Run
Extra Set of (6) Coil Keepers
Coil Hold Down Arms with Motorized End Wheels
Lower Hold Up Arm with Motorized End Wheel to Reach within 2” of fully expanded Mandrel
Special End Cap On Mandrel
Coil Load on Operator Side
Coe Powered Coil Straightener Model No. CPPS-350-12
Seven straightening rolls
Capacity: .187” @ 6” wide- 70,000 Material Yield
Min. Cap.- .030” @12” wide - 70,000 Material Yield
Max. Capacity: .312” @ 3” wide- 70,000 Material Yield
Payoff Rate: 100 FPM maximum speed
Pinch Roll Diameter: 5”
Entrance Side Pinch Rolls
Pneumatic Raise and Lower of Pinch Rolls
Seven (7) Straightener Rolls- 3.5” diameter
Independent Adjustment of Upper Straightening Rolls
Precision Worm Gear Adjustment of Upper Straightening Rolls
Cluster Gear Driven for all Lower Straightening Rolls
Four (4) Roll Catenary Section for Proper Material Support
Direct Mount Drive System for Efficient Torque Transfer
Central Point Lubrication System
Alligator Style Peeler-Dekinker Station
Centralized Controls for Straightener and Reel
Digital Upper Straightener Roll Height Indicators
Self Centering Hand Crank Entrance Edge Guides
10 HP AC Variable Speed Drive-Digital Control
Reel to Straightener Tie in Brackets
Laser Loop Control- Laser Eye
Single Side Table, with Adjustable Passline Feature
Air Raise and Lower of Threading Table

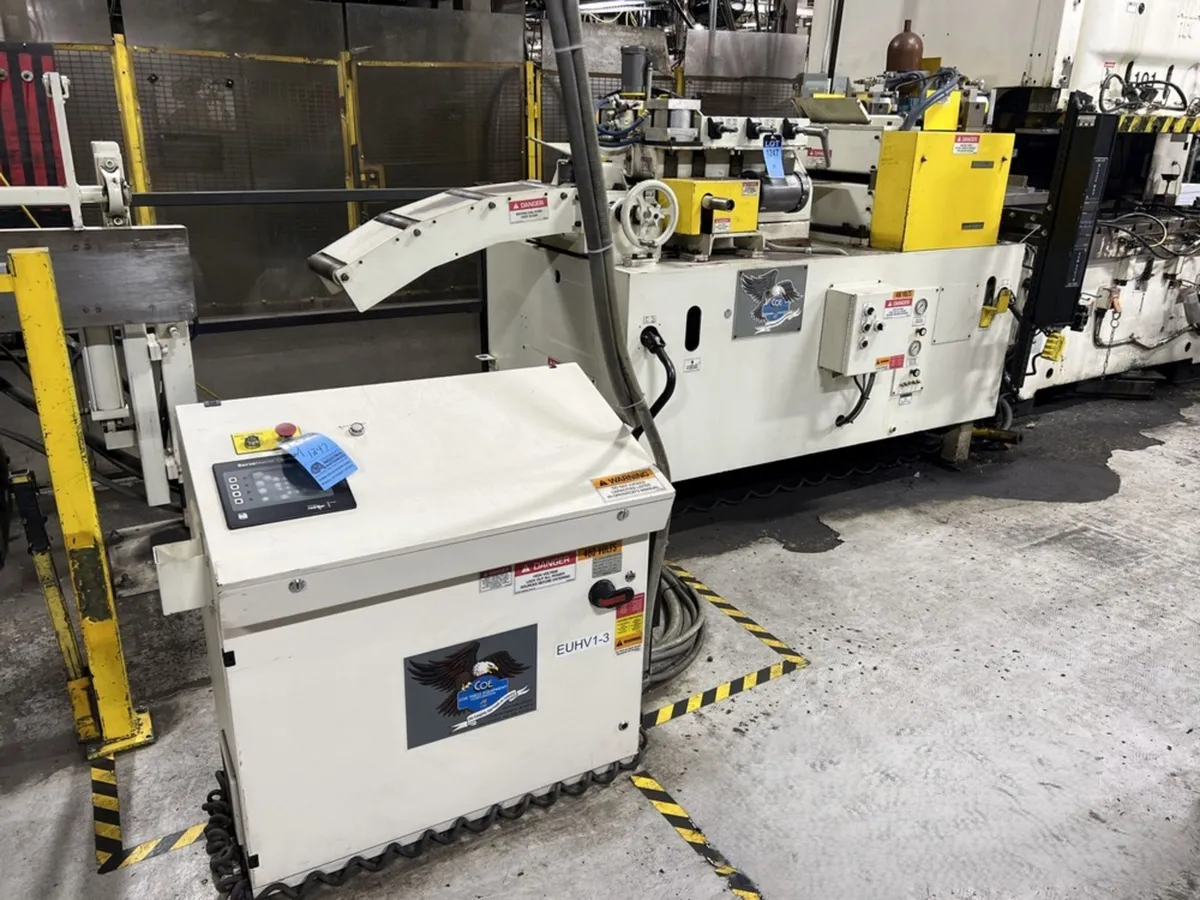

Coe Cabinet Mounted Feeder with Pull Thru Straightener
CPRF-518, 18” wide capacity Servo Feed
2 Rolls x 5” diameter
409 FPM Roll Speed
12” Feedlength @ 44 SPM at 180 degrees
24” feedlength @ 32 SPM at 180 Degrees
Heavy Duty Cabinet with +/- height adjustment of 6”
High Performance Maintenance Free AC Brushless Servo Motor
Emergency Stop Push Button
Remote Jog Pendant
Single Cycle Pushbutton for Set up at Jog Speed
ServoMaster Touchscreen Controller
4 Roll Catenary Support Section with Full Side Plates and Funnels
Full Width Upper and Lower Feed Rolls
PHS7-12 Pull Thru Straightener
(7) 3” diameter Straightening Rolls
Powered Pinch Roll with Air Raise and Lower
Pinch Roll Raise & Lower Solenoid Operated
