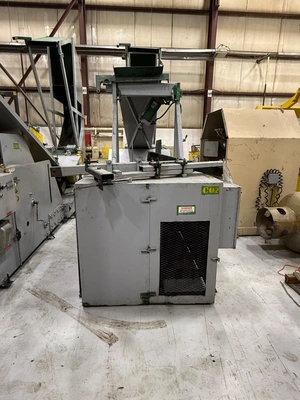

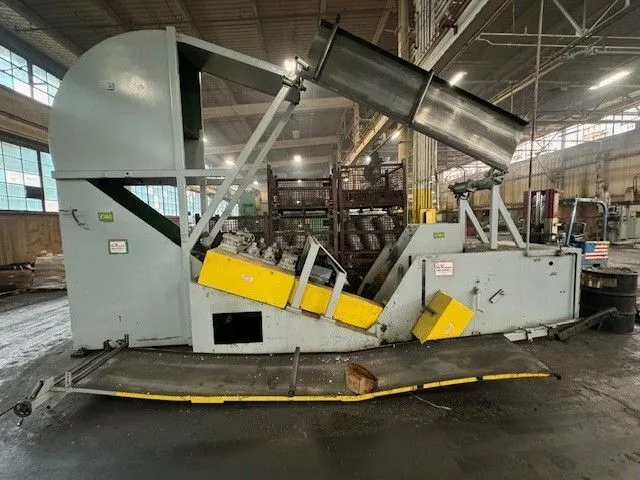

Coe 12,000 # x 24” wide Reverse Loop Coil Cradle/Straightener Combination. Heavy Duty, High Strength Material.
Coil Weight Capacity 12,000 #
Model………………………………………. CPPC-12024
Serial Number……………………………….D111448
Inline Powered Straightener Model Number.. CPPS-500-24
Coil Width Capacity…………………………24”
Stock Thickness Capacity……………………24” wide x .375” thick material
Coil O.D. 72”
Payoff Rate………………………………… 15-45 FPM

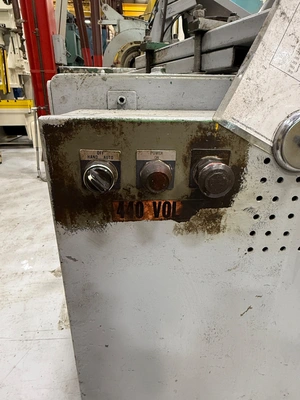

Power Supply………………………………. 460/3/60
Feed Direction……………………………… Right to Left
Coil weight capacity: 12,000 Lbs.
Coil width capacity: 24"
In Line Powered Straightener
Model#: CPPS-500-24

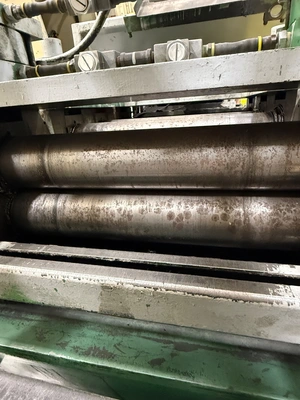

(5) Roll 5” diameter Roll Design
3” Thick Side plates, Double Bearings
6” Diameter Nest Rolls with 3” Journals

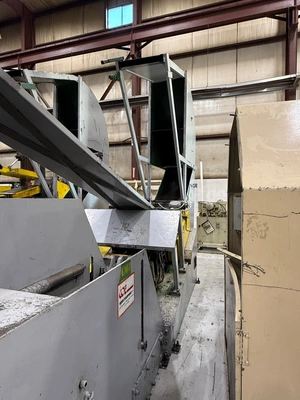

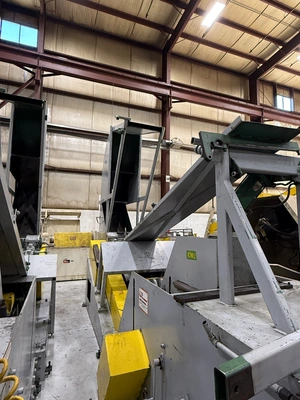

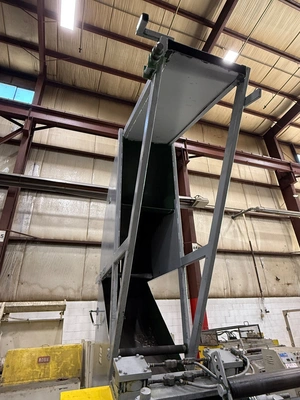

Special 14’ tall Material Deflector Model#: CPMD-12024
Fully Closed Nose Deflector
Air Operated material ram and extension Model: CPMR-12024
72” Outside Coil Diameter Provision
3/8” Filter/Regulator/Lubricator Unit with Automatic Dump
Air Operated Stock Peeler Heavy Design 5” Bore
Independently Adjustable Inside Plates
Four Rolls in Adjustable Side plates, Hardened
Hardened Skit Plates on inside of Adjustable Sideplates
Central Point Lubrication System
In Line Coil Debender with 12” Bores
Jog forward and reverse Remote Jog Control with Coil Cord
Loop Control Arm for Automatic Operation
2 Roll in Deflector, 3 ½” diameter
Paddle Loop in the deflector

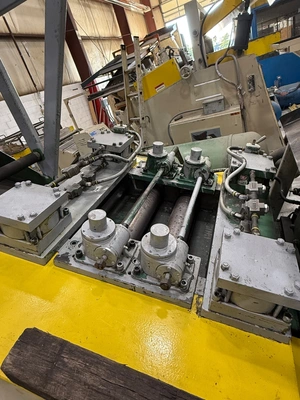

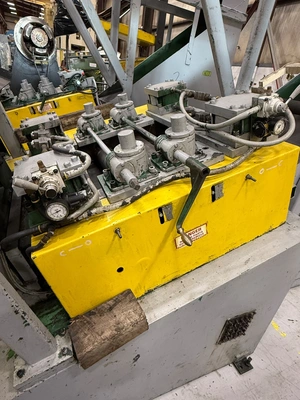

Powered Straightener:
Air Operated Entrance Threading Roll-Raise/Lower- 8” bore cylinders
Air Operated Exit Threading Roll- Raise/Lower- 8” bore cylinders
Diamond Serrated Entrance Threading Rolls
Exit Vertical Edge Guides
Independently Adjustable Breaker Rolls
Thread Protectors for Adjusting Screws on Side Plates
