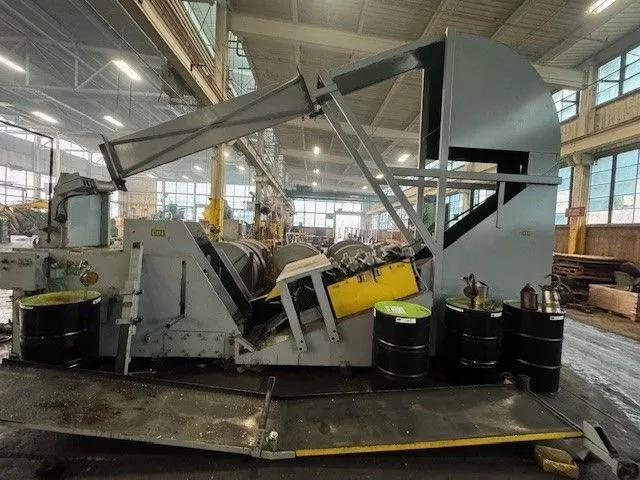

Coe 12,000 # x 18” wide Reverse Loop Coil Cradle/Straightener Combination
Coil Weight Capacity 12,000 #
Model………………………………………. CPPC-12018
Serial Number………………………………. C10951
Inline Powered Straightener Model Number.. CPPS-500-18
Coil Width Capacity…………………………18”
Stock Thickness Capacity……………………18” wide x .312” thick material
………………………………………………. 12” wide x .375” thick material
Coil O.D. 72”
Payoff Rate………………………………… 15-45 FPM
Power Supply………………………………. 460/3/60
Feed Direction……………………………… Right to Left
Pass line Height……………………………... 51”
Coil weight capacity: 12,000 Lbs.
Coil width capacity: 18"
In-Line Powered Straightener
Model#: CPPS-500-18
(5) Roll 5” diameter Roll Design
15 HP Variable Speed Drive- 3:1 Ratio
6” Diameter Nest Rolls with 3” Journals
Special 14’ tall Material Deflector Model#: CPMD-12018
Fully Closed Nose Deflector
Air Operated material ram and extension Model: CPMR-12018
72” Outside Coil Diameter Provision
3/8” Filter/Regulator/Lubricator Unit with Automatic Dump
Air Operated Stock Peeler Heavy Design 5” Bore
Independently Adjustable Inside Plates- 60” High
Four Rolls in Adjustable Side plates, 3” with Straightener Bearings
Hardened Skit Plates on inside of Adjustable Sideplates
Central Point Lubrication System
In Line Coil Debender with 10” Bores
Jog forward and reverse Remote Jog Control with Coil Cord
Loop Control Arm for Automatic Operation
2 Roll in Deflector, 3 ½” diameter
Paddle Loop in the deflector
Powered Straightener:
Air Operated Entrance Threading Roll-Raise/Lower- 6” bore cylinders
Air Operated Exit Threading Roll- Raise/Lower- 6” bore cylinders
Diamond Serrated Entrance & Exit Threading Rolls
Exit Vertical Edge Guides
Independently Adjustable Breaker Rolls
Double Row Bearings on Powered Straightener
3” thick Sideplates on Powered Straightener
