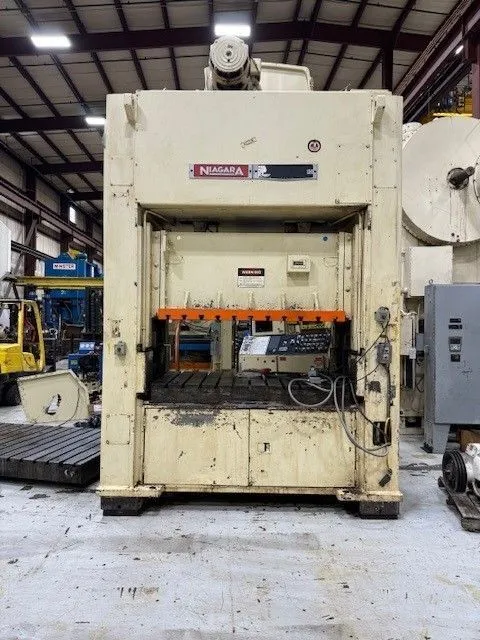

Niagara 220 Ton Chief Straight Side Mechanical Press
ConditionUsed
1 available
$79,500.00 USD
Niagara 220 Ton Chief Straight Side Mechanical Press. 72" x 42" Bed area, 6" Stroke, 28" Shut height over bed, and 50-100 SPM.
Model Number: SE2-200-72-42UH
Serial Number: P53098
Capacity: 220 Tons US Tons
Year of Manufacture: 1990
Bed Area: 72” x 42”
Slide Area: 72” x 42”
Stroke: 6”
Adjustment: 9”
Shut Height: 28” over bed SDAU
Strokes per Minute: 50-100
Bolster: 5” thick
Overall Height: 181” floor to top of press
Footprint: 108” LR x 70” FB
Windows: 24.5” wide approx.
Trabon Recirculating Lubrication System
Power Supply: 480V/60 HZ/ 3 Phase
T-slotted Bolster and Ram
Link 501 Press Control
8 Point Gibbing
Variable Speed Motor
Air Clutch and Brake Assembly
Air Counterbalances
Vibration Isolation Levelers
Niagara 220 Ton Chief Straight Side Mechanical Press. 72" x 42" Bed area, 6" Stroke, 28" Shut height over bed, and 50-100 SPM.
Imperial
| Tonnage | 220 T |
| Stroke | 6" |
| Shut Height | 28" |
| Bed area (Left to right) | 72" |
| Bed area (Front to back) | 42" |
| SPM min. | 50 strokes/min. |
| SPM max. | 100 strokes/min. |
| Adjustment | 9" |
| Windows Width | 24.5" |
Model Number: SE2-200-72-42UH
Serial Number: P53098
Capacity: 220 Tons US Tons
Year of Manufacture: 1990
Bed Area: 72” x 42”
Slide Area: 72” x 42”
Stroke: 6”
Adjustment: 9”
Shut Height: 28” over bed SDAU
Strokes per Minute: 50-100
Bolster: 5” thick
Overall Height: 181” floor to top of press
Footprint: 108” LR x 70” FB
Windows: 24.5” wide approx.
Trabon Recirculating Lubrication System
Power Supply: 480V/60 HZ/ 3 Phase
T-slotted Bolster and Ram
Link 501 Press Control
8 Point Gibbing
Variable Speed Motor
Air Clutch and Brake Assembly
Air Counterbalances
Vibration Isolation Levelers
