| Coil Weight Capacity | 10,000 lb | 4,535.9 kg |
| Stock Width Capacity | 18" | 457.2 mm |
| Max Stock Thickness Capacity at Full Width | 0.25" | 6.35 mm |
| Coil O.D. Capacity | 60" | 1,524 mm |
Coil Weight Capacity................10,000 #
Model………………………………………. SMX-18 H6 / 18PPTT-12 / 18-3.5
Coil Width Capacity..............................18”
Stock Thickness Capacity……………………18” wide x 0.250” thick material
Coil O.D...................................................60”
CWP Servo Roll Feed Model No. SMX-18 H6
Piloting lift on upper feed roll
Cabinet base mounted w/ adjustable pass line
Adjustable stock width edge guides
Anti-backup roll assembly
Updated AC Servo control package by Coe Press
CWP Exit Threading Table Model No. 18PPTT-12
Bridge for stock threading between cradle straightener and servo feed
Bomb bay door design

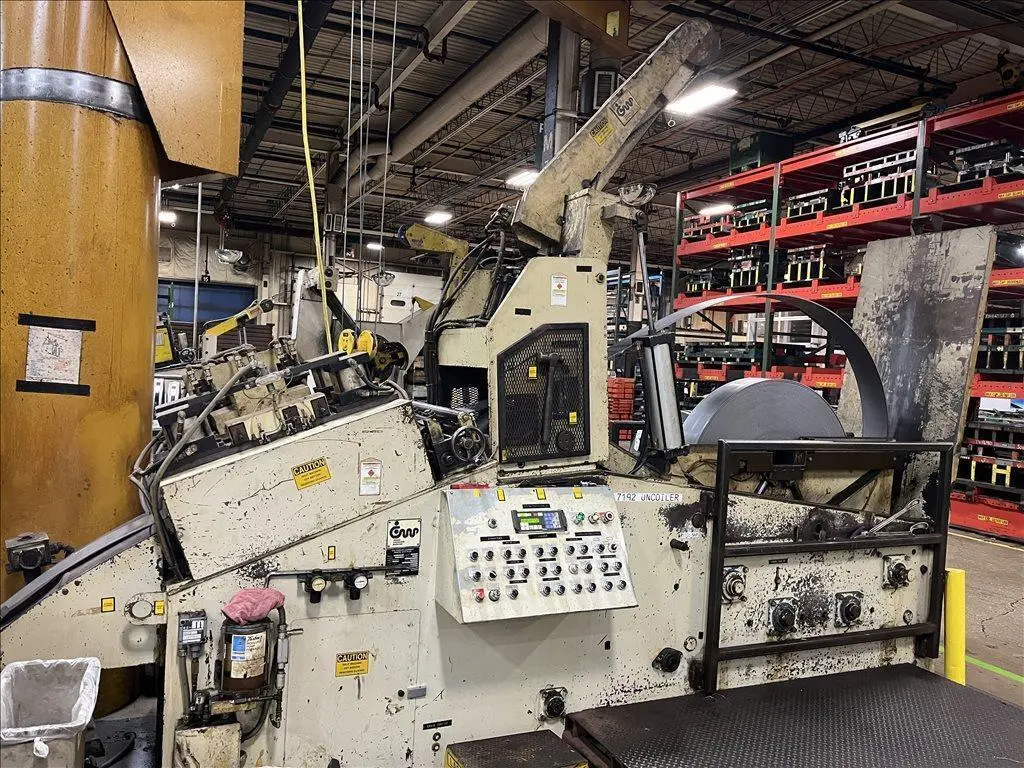

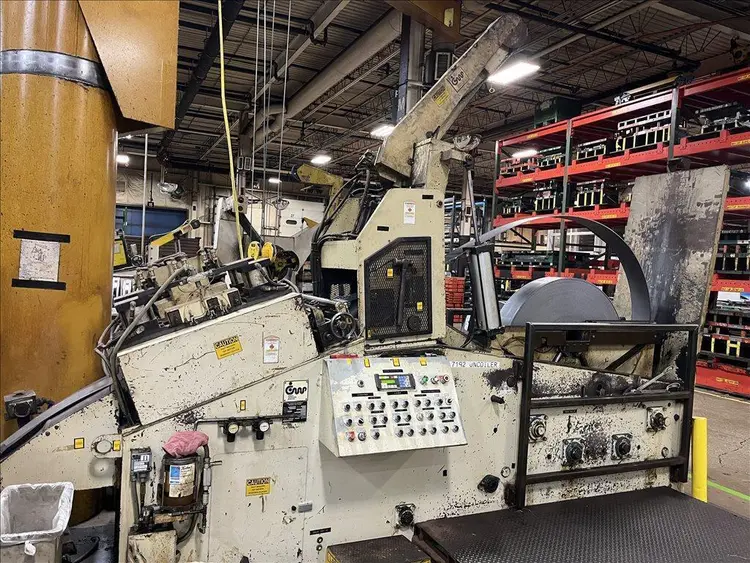

CWP Cradle - Straightener Combination Model No 18-3.5
Seven straightening rolls x 3.5" diameter
Entry and exit pinch rolls
Coil hold down arm
Stock threading station
Dual adjustable coil side restrictor plates
Variable speed payout
Common operator control station
Jog F/R
AutoRun cycle with loop control
Note: Controls were recently updated.
