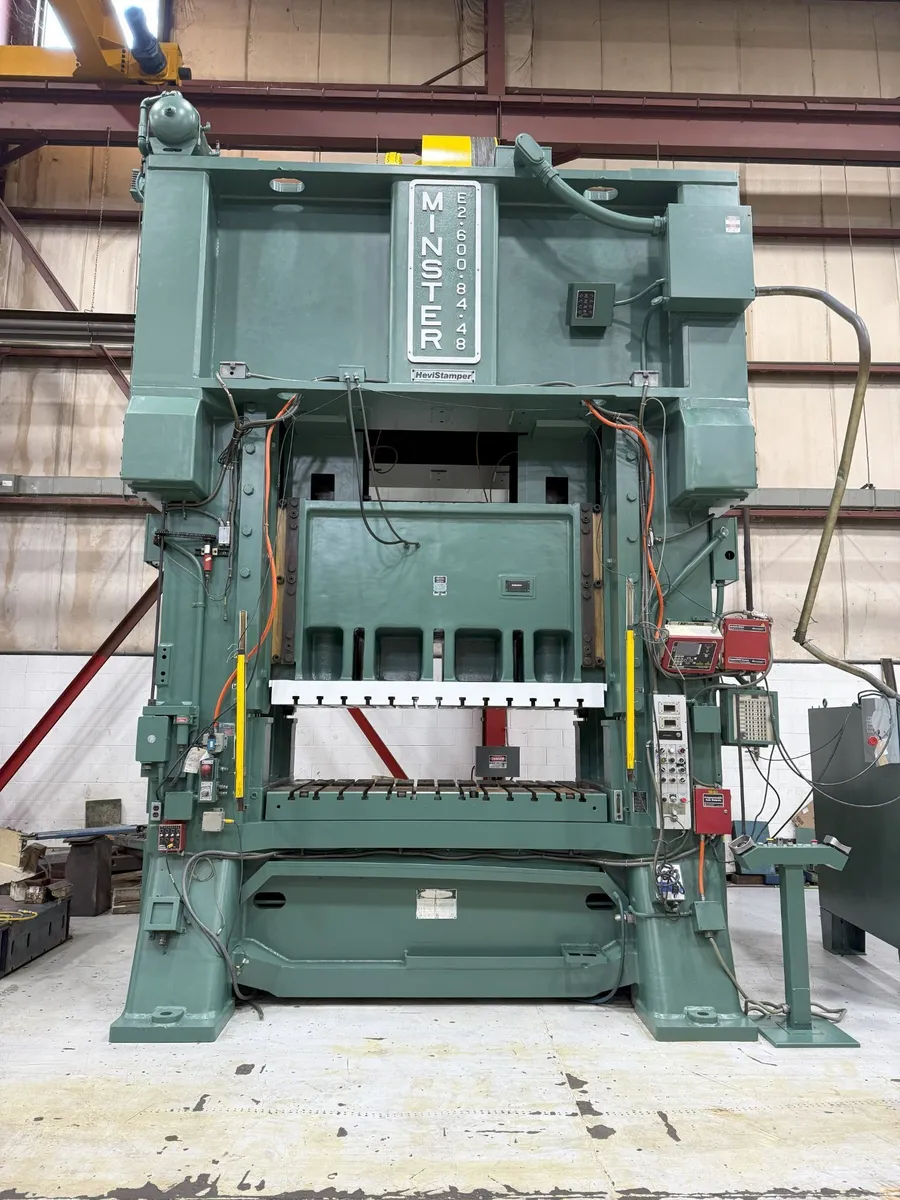

600 Ton Minster Hevistamper Straight Side Mechanical Press
ConditionUsed
1 available
Minster 600 Ton Model E2-600-84-48, Hevistamper Mechanical Stamping Press, 84" x 48" bed, 12" stroke, 32" Shut Height, 0-60 SPM
Model Number: E2-600-84-48
Serial Number: E2-600-26613
Bed Area: 84” x 48”
Slide Area: 84” x 48”
Stroke: 12”
Strokes per Minute: 0-60
Shut Height: 32” over bed
Shut Height: 25” over bolster plate
Bolster Plate: 7” thick t-slotted plate
Slide Adjustment: 6”
Windows: 33” wide x 20” high
Footprint Dimensions: 137” LR x 94” FB
Overall Height: 20’ 4.5” floor to highest point of press
Floor Standing
Air Clutch and Brake Assembly
Model#: 132-GC
Air Counterbalances
Hydraulic Tie Rod Nuts
Recirculating Lube System
T-Slotted Ram and Bolster
Dual Ross Valve
8 Point Gibbing
Floor Standing
Motors and Controls
Wintriss Smart Pac Press Control
Wintriss Programmable Outputs
Wintriss Resolver
Light Curtains
Palm Buttons
DC Variable Speed Motor
