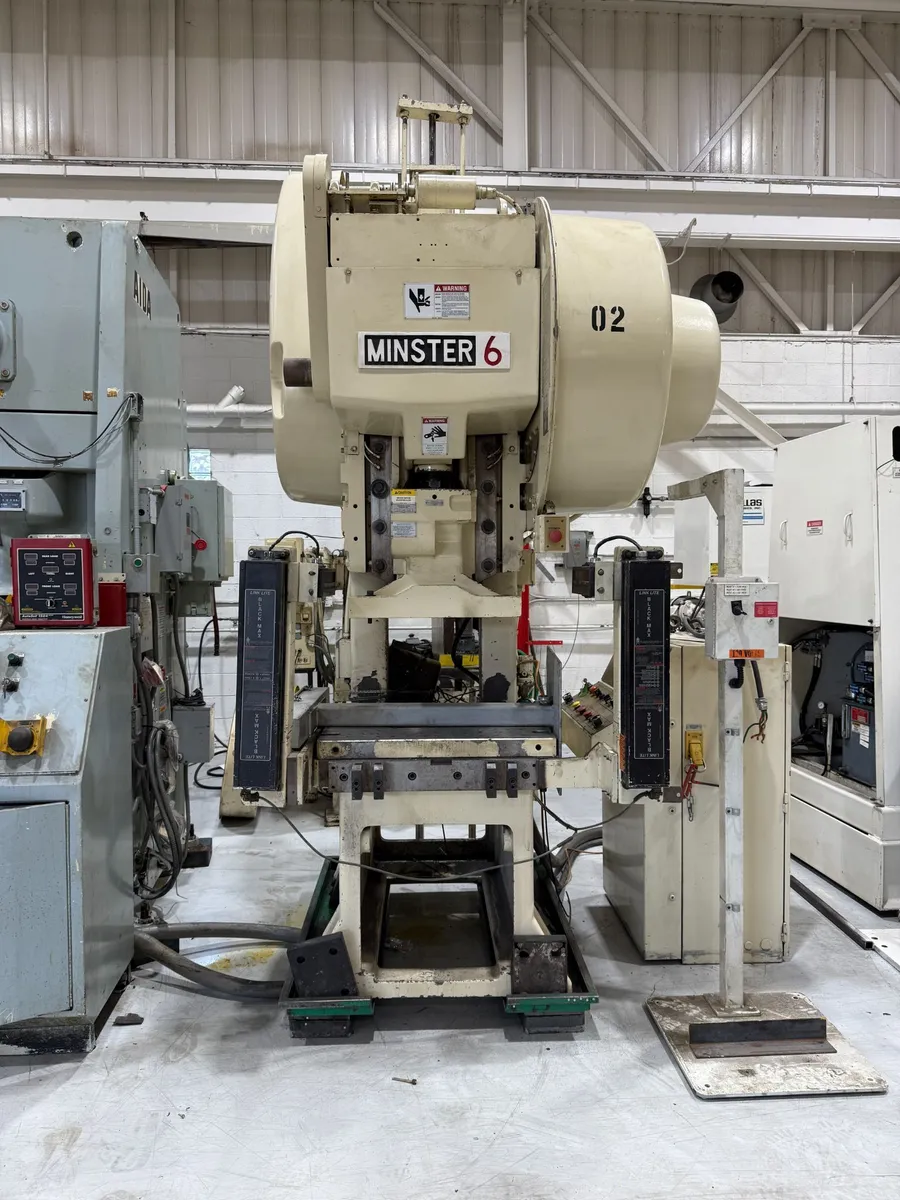

Minster 60 Ton Geared Driven Gap Frame Mechanical Press
Serial Number................................... 6SS-28364
Year of Manufacture……………………….. 1991
Model Number.................................. OBS-6
Capacity……………………………………..........60 Tons

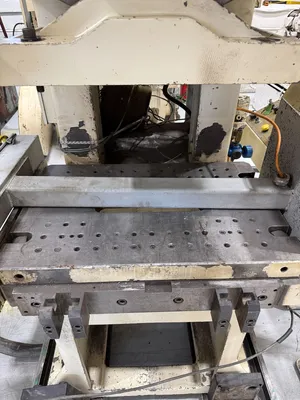

Bed.................................................... 32” x 21”

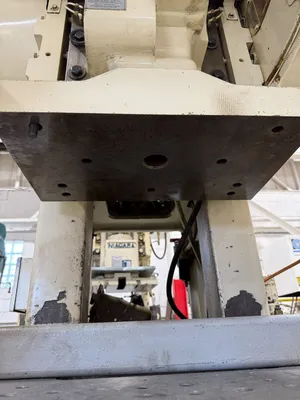

Slide Area…………………………………......... 24” x 14”
Stroke................................................ 5”
Shut Height....................................... 14.5” SDAU Over bed
Bolster................................................ 3” thick
Strokes Per Minute........................... 45-90
Adjustment........................................ 2.75”
Overall Weight……………………………........12,000 # approx.
Floor Standing
Air Clutch and Brake

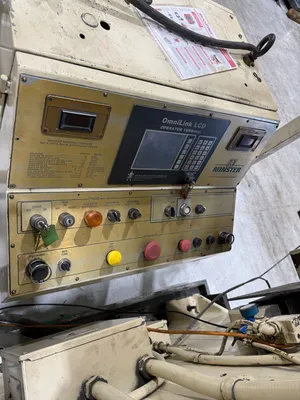

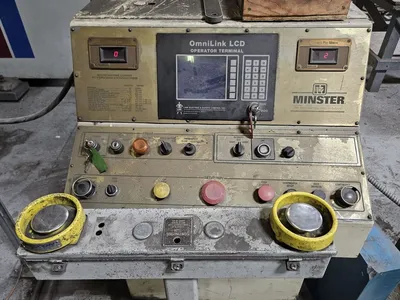

Omnilink LCD Touchscreen Controller

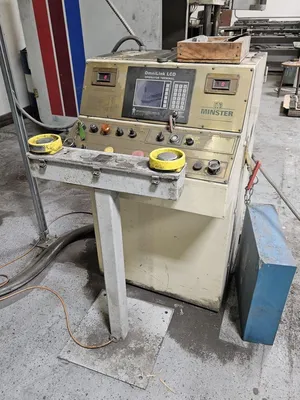

Console Mounted Control

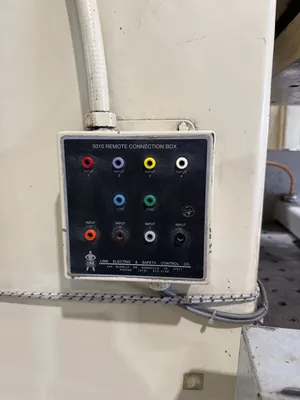

Link 5010 Remote Connection Box
Link Black Max II Horizontal and Vertical Light Curtains

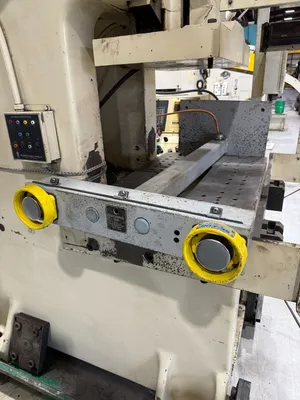

Dual Palm Buttons
Single/ Inch/ Continuous Operation
Power: 480/3/60
Forward/Reverse
Variable Speed Main Motor
Minster Dual Ross Air Valve
