KOMATSU 80 H-VS-3 (2)

Sell Your KOMATSU 80 H-VS-3
(248)709-6723
brian@rygatellc.com
ConditionUsed
1 available
Sell Your KOMATSU 80 H-VS-3

Overview

Type:
Gap Frame/ OBI Mechanical Presses
Manufacturer:
KOMATSU
Model:
80 H-VS-3
Year:
1995
Stock #:
710-02528
Status:
For Sale

Description

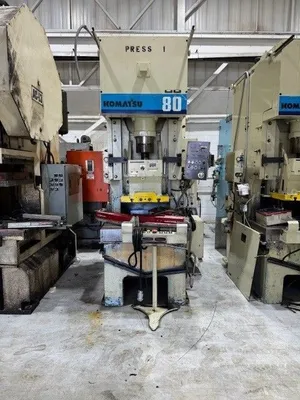

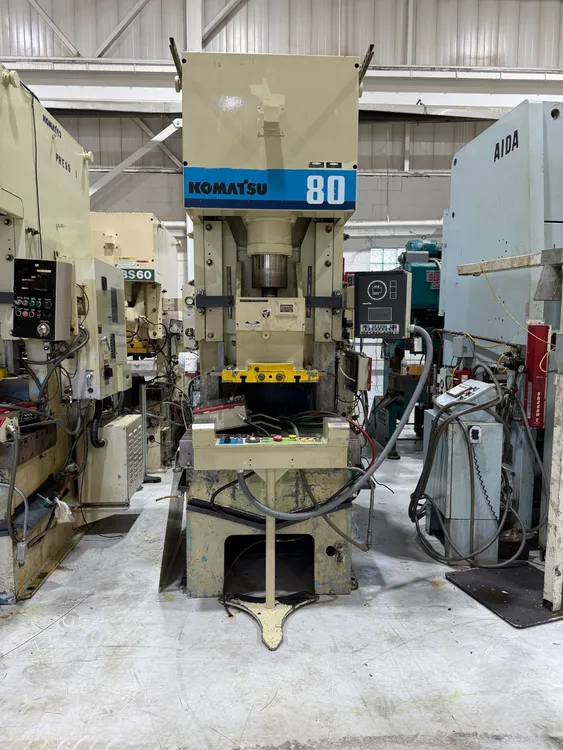

80-Ton Komatsu OBS Single Crank Press, Model: 80H-VS-3, 39.3" x 23.6" Bed Area, 3.94" Stroke, 13.8" die height over bolster, 60-120 SPM.

Tonnage80 T72.575 t
Stroke Length3.94"100.08 mm
Shut Height18"457.2 mm
Bed area (Left to right)39.3"998.22 mm
Bed area (Front to back)23.6"599.44 mm
SPM min.20 strokes/min.20 strokes/min.
SPM max.120 strokes/min.120 strokes/min.
Adjustment3.15"80.01 mm
Year of Manufacture19951995
Slide Area21.652"549.95 mm

80 ton Capacity (metric)
3.94" Stroke
13.8" Die Height over Bolster
3.15" Motorized Adjustment
39.3" LR x 23.6" FB Bed Area
21.65" LR x 17.7" FB Slide Area
60-120 VSPM

High-Torque Wet Clutch and Brake
Eccentric Shaft

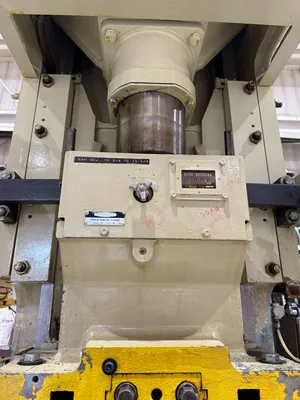

Plunger Guided Ram
Heavy Duty Slide Construction
T-Slotted Ram and Bolster
T-Slotted Flanged Ram Plate
Hydraulic Over Load
Air Counterbalances
Recirculating Lube System

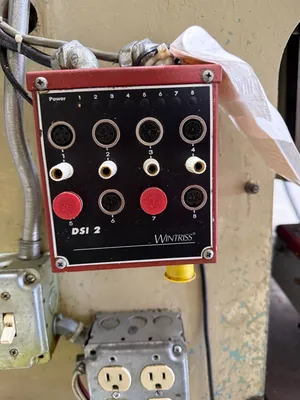

Wintriss Die Pro 1500

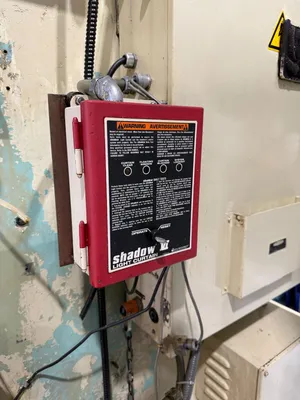

Wintriss Shadow V Light Curtains
6 Point Gibs
AC Inverter Drive

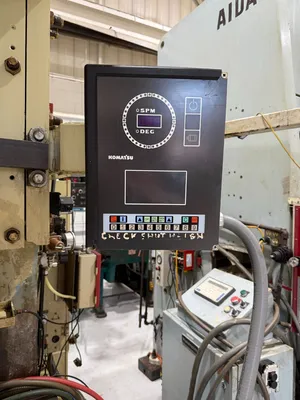

Updated Controls
Floor Standing
